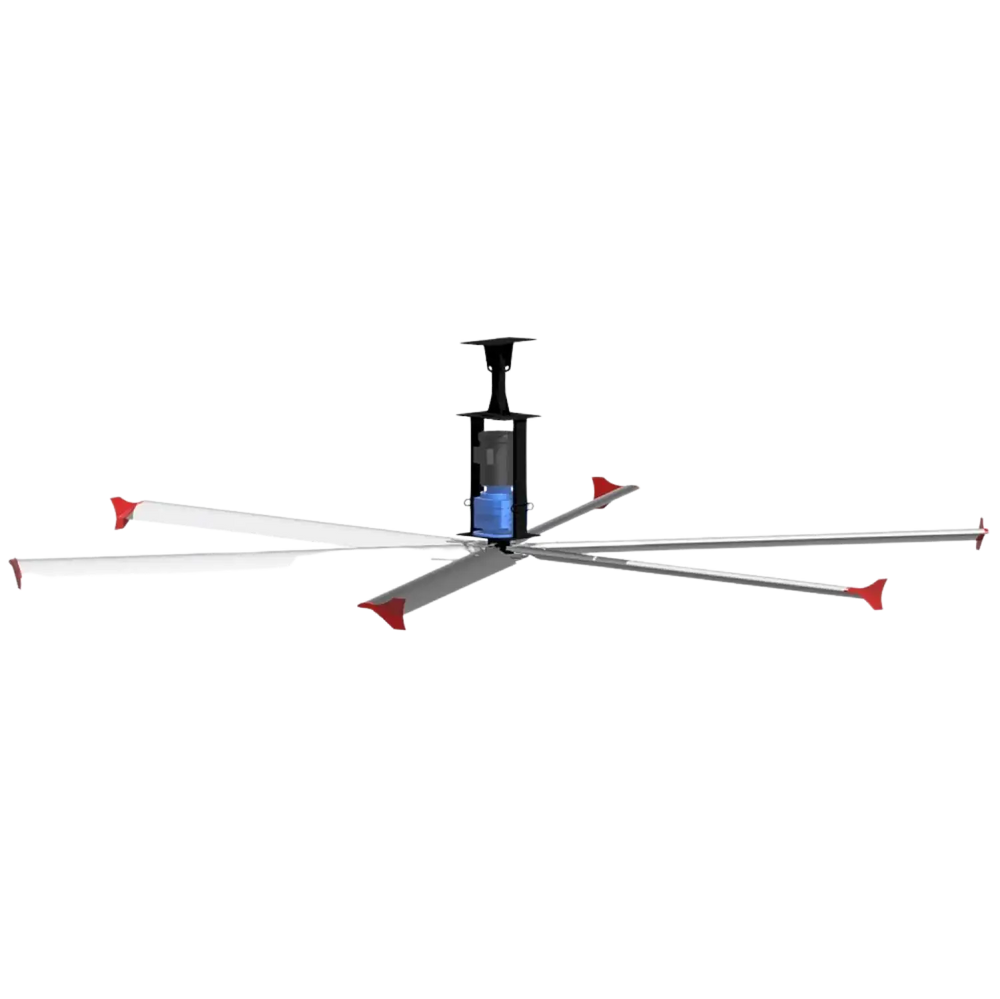

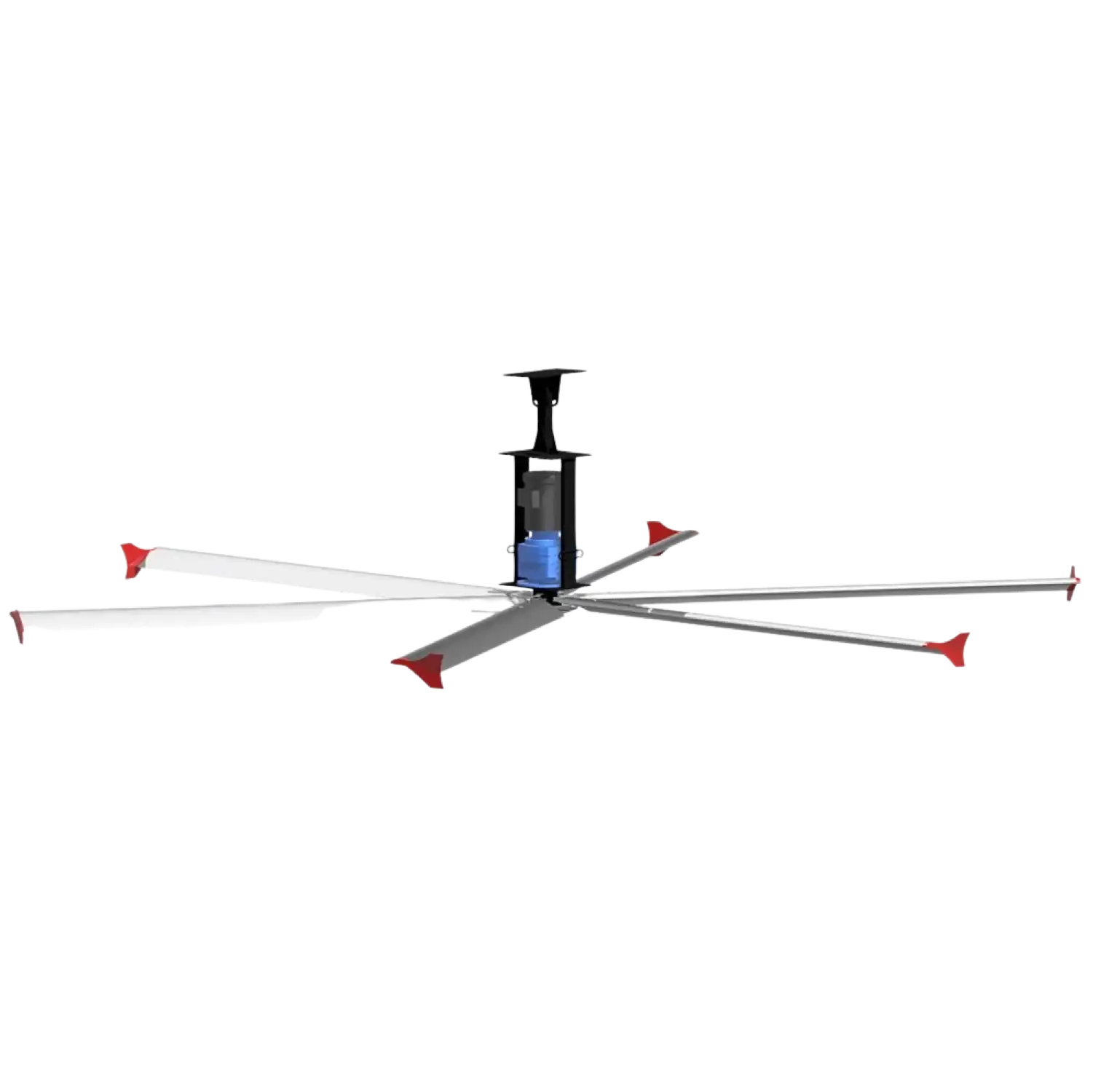

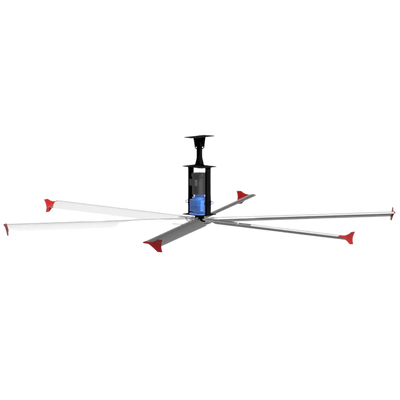

Canarm Hexa-Lite HVLS 16 Foot Blade Industrial Fan New

Manufacturer: Canarm

SKU: 6L16-115-1

Canarm Hexa-Lite HVLS 16 Foot Blade Industrial Fan New
Canarm Hexa-Lite HVLS 16 Foot Blade Industrial Fan New
Canarm Hexa-Lite HVLS 16 Foot Blade Industrial Fan New
Canarm Hexa-Lite HVLS 16 Foot Blade Industrial Fan New

Choose Voltage and Phase:

QTY

(888) 999-1522

C

$11,117.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

in stock checkmark

In Stock

delivery truck icon

Please allow 1-3 business days for processing

Manufacturer Direct Shipping

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Canarm Hexa-Lite HVLS 16 Foot Blade Industrial Fan New

Canarm Hexa-Lite HVLS 16 Foot Blade Industrial Fan New

Product Overview

Operating on a 1.35 HP EC motor, minimal power consumption is combined with impressive air volumes to create the highly efficient Hexa-Lite HVLS Fan. The big ceiling fan can create an evaporative cooling effect of three to four degrees throughout the facility.



During the heating season, the Hexa-Lite HVLS fan technology can destratify uneven temperatures that can be in excess of fifteen degrees from ceiling to floor. This results in significant energy savings since the heating system cycles less frequently.

vendor logo
divider
authorized dealer
checkmark

Brand new and manufacturer direct

checkmark

1 year manufacturer's warranty

checkmark

Ships from manufacturer in IL and NY

checkmark

Fast processing with free shipping

checkmark

Authorized Canarm dealer

Features

  • Equipped with six extruded anodized, high performance E420 design aluminum airfoils.
  • Contoured for maximum air movement so environments become cooler faster.
  • Six wingtip fences constructed of nylon 66 redirect outward airflow into downward airflow to improve and direct airflow downwards.
  • 1/4” powder-coated steel and anodized aluminum chassis resists rusting and corrosion even in cold and damp environments.
  • Conforms to CSA Standard 22.2# 133 and UL507.
  • Totally enclosed, fan cooled (TEFC) IP55 motor with precision finished gearbox for low noise and long service life. Sealed with lifetime synthetic oil.
  • Quiet Performance & Minimal Maintenance.
  • Note: Required controller sold separately.

Specifications

Model 6L16-115-1 16 ft blade, 115 volts, single phase
Model 6L16-230-1 16 ft blade, 230 volts, single phase
Model 6L16-230-3 16 ft blade, 230 volts, 3 phase
Model 6L16-460-3 16 ft blade, 460 volts, 3 phase
Diameter (ft) 16
Voltage (VAC) 99-660 ( 48/62hz)
Max RPM 75
Motor FLA 2.3 - 5.2
Phase 1 - 3
HP (KW) 1.0 (0.75)
Area Covered (sq ft) 20,096
Max Effective Diameter (ft) 160
Weight ( lbs) 310

Package Contents

Hexa-Lite HVLS Industrial Fan

User Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year manufacturer's warranty.
