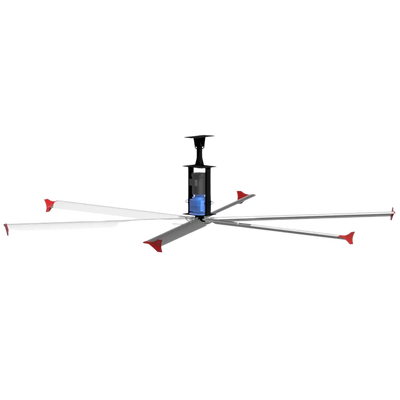

Canarm Hexa-Lite HVLS 14 Foot Blade Industrial Fan New
Product Overview
Operating on a 1.35 HP EC motor, minimal power consumption is combined with impressive air volumes to create the highly efficient Hexa-Lite HVLS Fan. The big ceiling fan can create an evaporative cooling effect of three to four degrees throughout the facility.
During the heating season, the Hexa-Lite HVLS fan technology can destratify uneven temperatures that can be in excess of fifteen degrees from ceiling to floor. This results in significant energy savings since the heating system cycles less frequently.
Brand new and manufacturer direct
1 year manufacturer's warranty
Ships from manufacturer in IL and NY
Fast processing with free shipping
Authorized Canarm dealer
Features
- Equipped with six extruded anodized, high performance E420 design aluminum airfoils.
- Contoured for maximum air movement so environments become cooler faster.
- Six wingtip fences constructed of nylon 66 redirect outward airflow into downward airflow to improve and direct airflow downwards.
- 1/4” powder-coated steel and anodized aluminum chassis resists rusting and corrosion even in cold and damp environments.
- Conforms to CSA Standard 22.2# 133 and UL507.
- Totally enclosed, fan cooled (TEFC) IP55 motor with precision finished gearbox for low noise and long service life. Sealed with lifetime synthetic oil.
- Quiet Performance & Minimal Maintenance.
- Note: Required controller sold separately.
Specifications
| Model 6L14-115-1 | 14 ft blade, 115 volts, single phase |
| Model 6L14-230-1 | 14 ft blade, 230 volts, single phase |
| Model 6L14-230-3 | 14 ft blade, 230 volts, 3 phase |
| Model 6L14-460-3 | 14 ft blade, 460 volts, 3 phase |
| Diameter (ft) | 14 |
| Voltage (VAC) | 99-660 ( 48/62hz) |
| Max RPM | 75 |
| Motor FLA | 2.3 - 5.2 |
| Phase | 1 - 3 |
| HP (KW) | 1.0 (0.75) |
| Area Covered (sq ft) | 15,386 |
| Max Effective Diameter (ft) | 140 |
| Weight ( lbs) | 298 |
Package Contents
Hexa-Lite HVLS Industrial Fan
User Manual
Warranty
This item comes with a 1 year manufacturer's warranty.
