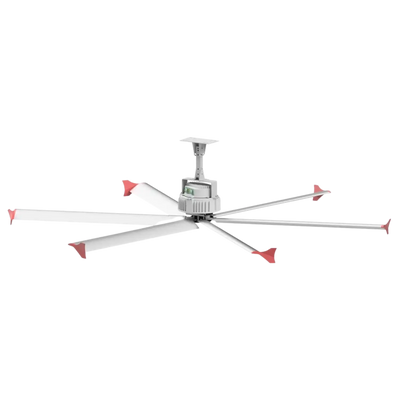

Canarm Hexa-Lite EC HVLS 18 Foot Blade Industrial Fan New
No reviews
Share
Product Overview
Operating on a 1.35 HP EC motor, minimal power consumption is combined with impressive air volumes to create the highly efficient Hexa-Lite EC HVLS Fan.
During the heating season, the Hexa-Lite EC HVLS fan technology can destratify uneven temperatures that can be in excess of fifteen degrees from ceiling to floor. This results in significant energy savings since the heating system cycles less frequently.
Brand new and manufacturer direct
1 year manufacturer's warranty
Ships from manufacturer in IL and NY
Fast processing with free shipping
Authorized Canarm dealer
Features
Equipped with six extruded anodized, high performance E420 design aluminum airfoils.
Contoured for maximum air movement so environments become cooler faster.
six wingtip fences constructed of nylon 66 redirect outward airflow into downward airflow to improve and direct airflow downwards.
1/4” powder-coated steel and anodized aluminum chassis resists rusting and corrosion even in cold and damp environments.
Direct drive system allows this fan to operate incredibly quiet. Totally enclosed direct drive, IP65 rated ECM motor. Onboard VFD is factory assembled and programmed for minimum start/stop torque loads.
Quiet Performance & Minimal Maintenance.
Conforms to CSA Standard 22.2# 133 and UL507.
Note: Required controller sold separately.
Specifications
Model 6L18EC-230-1
18 ft blade, 230 volts, single phase
Model 6L18EC-230-3
18 ft blade, 230 volts, 3 phase
Model 6L18EC-460-3
18 ft blade, 460 volts, 3 phase
Diameter (ft)
18
Voltage (VAC)
180-480 (50/60hz)
Max RPM
55
Motor FLA
5.2
Phase
1 - 3
HP (KW)
1.35 (1.0)
Area Covered (sq ft)
25,434
Max Effective Diameter (ft)
180
Weight ( lbs)
335
Package Contents
Hexa-Lite EC HVLS Industrial Fan
User Manual
Warranty
This item comes with a 1 year manufacturer's warranty.
