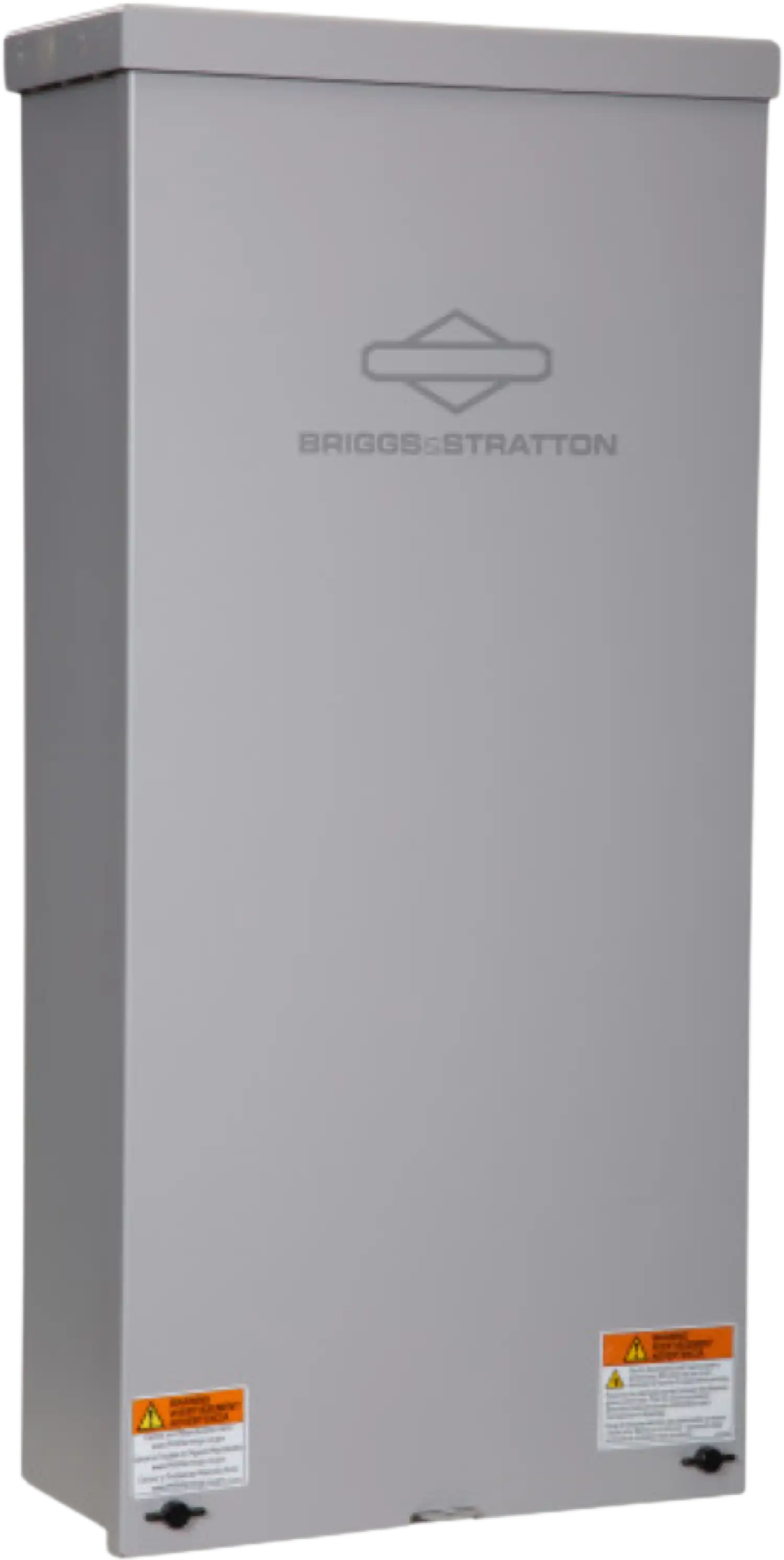

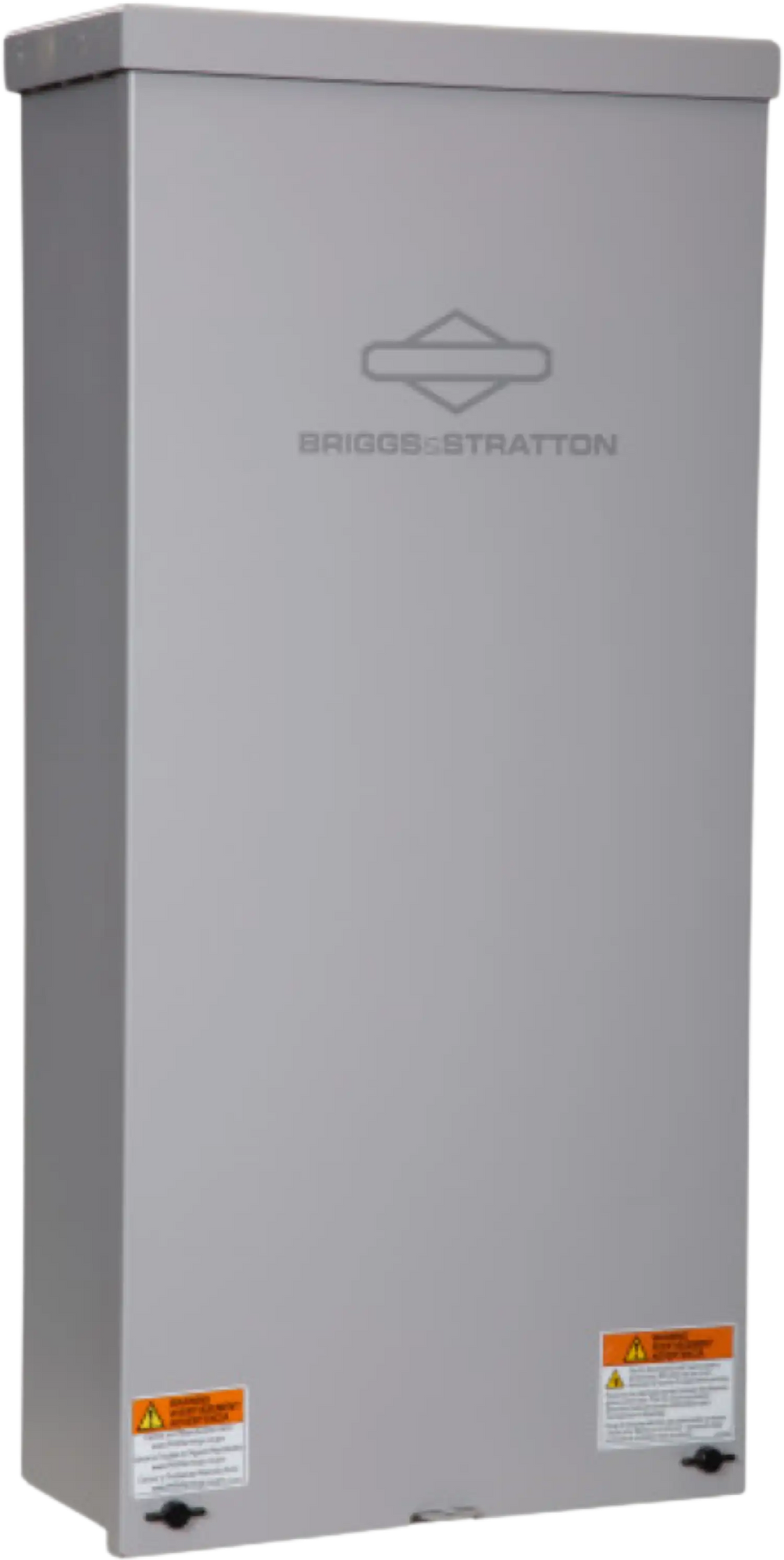

Briggs and Stratton 071270 200-Amp Service Disconnect Outdoor Automatic Transfer Switch New
Manufacturer: Briggs and Stratton
SKU: 071270
QTY
or
(888) 999-1522
C
$1,280.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in (est) 1-2 business days
Exceptional Customer Service
Authorized Dealer
Similar Products
Briggs and Stratton 071270 200-Amp Service Disconnect Outdoor Automatic Transfer Switch New
Product Overview
A Briggs & StrattonĀ® Transfer Switch provides all the intelligence your generator needs to make sure the power stays on when utility power fails. It automatically senses loss of utility power and signals your generator to start and restore power. When power has been restored, the transfer switch will transfer your vital loads back to utility power.
Brand new and manufacturer direct
7 year manufacturer's warranty
Ships from TX
Fast processing with free shipping
Authorized Briggs and Stratton dealer
Features
- Service Disconnect Rated Switch
- UL Listed 1008
- NEMA 3R Indoor/Outdoor Installation
- Powder Coated Galvanneal Steel Enclosure
- Compatible with Symphony Choice Power Management (sold separately)
Specifications
| Rated AC Voltage | 192 ā 245 VAC |
|---|---|
| Frequency (Hz) | 60 |
| Number of Poles | 2 |
| Phase | Single |
| Operating Ambient Temperature (Ā°C / Ā°F) | -20Ā° - 120Ā°F (-28Ā° - 49Ā°C) |
| Current Rating (amp) | 200 |
| SED Rated | Yes |
| Breaker Withstand Rating | 22000 |
| Enclosure Type | NEMA 3R |
| Enclosure Material | Galvannealed Steel |
| Enclosure Material Thickness | 16 |
| Load Transition Type (Automatic) | Break Before Make |
| Controller Type | Basic Relay Logic Board |
| Brown-out Protection | Yes |
| Outage to Standby Power Time | 26 Second |
|---|---|
| Power Management | Symphony Choice Compatible (sold separately) |
| Internal Generator Disconnect | No |
| Generator Circuit Breaker Kit Available | No |
| UL Listed per UL1008 & UL50e | Yes |
| Assembled Dimensions | 30.1ā L x 14.5ā W x 7.0ā H |
| Assembled Weight | 49 lbs. |
| Packaged Dimensions | 31.0ā L x 15.3ā W x 8.4ā H |
Package Contents
Briggs and Stratton 071270 200-Amp Automatic Transfer Switch
User's Manual
Warranty
This item comes with a 7 year limited manufacturer's warranty.
