Big Joe S22-116 Walkie Straddle Stacker 2200 Lbs Capacity 116" Max Lift Height New

Manufacturer: Big Joe

SKU: S22-116

bigjoe_forklifts_s2230_4_1024x1024
bigjoe_forklifts_s2230_4_1024x1024

Max Lift Height





QTY

(888) 999-1522

C

$12,059.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

in stock checkmark

In Stock

delivery truck icon

Ships in (est) 5-7 business days

Manufacturer Direct Shipping

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+

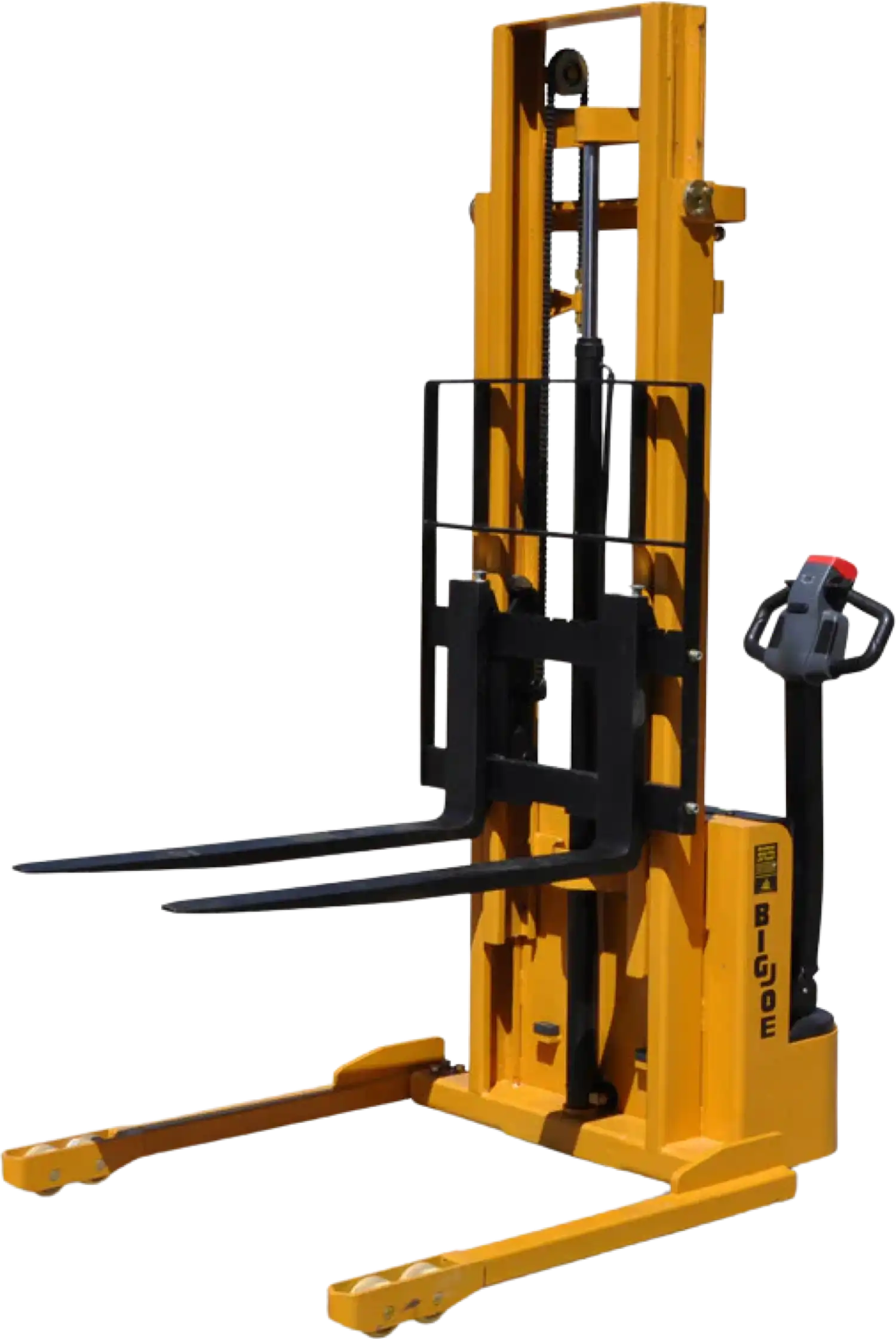

Big Joe S22-116 Walkie Straddle Stacker 2200 Lbs Capacity 116

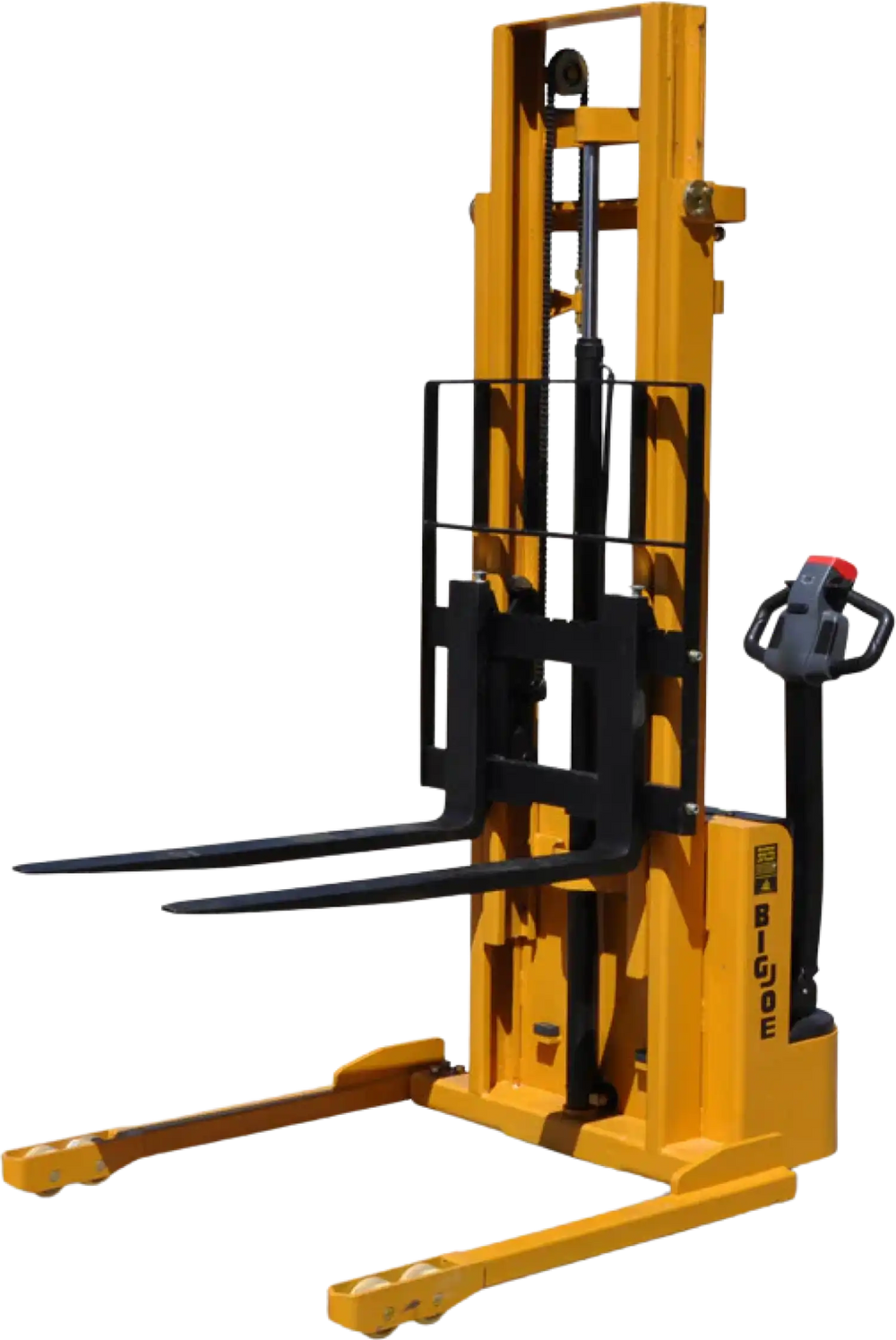

Big Joe S22-116 Walkie Straddle Stacker 2200 Lbs Capacity 116" Max Lift Height New

Product Overview

Big Joe's S22-116 Walkie Straddle Stacker is an easy to use and maintain truck that is a good choice for general material handling, stacking, and work positioning in tight areas. This stacker has a max lift height of 116" and is capable of right-angle stacking in aisles as narrow as 60" while the offset steering arm provides excellent line of sight for operators. It features a telescoping high-visibility mast and inner rail, dual lifting chains, and a chrome-plated lift cylinder for smooth lift/lower operation.
vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

2 year factory warranty

checkmark

Manufacturer direct shipping from CA, TX, & WI

checkmark

Authorized Big Joe dealer

Features

  • This stacker features two 12V 85AH maintenance-free batteries, and a 110V smart charger which ensures the batteries are not overcharged when left plugged in.
  • Travel, lift, and lower functions are located in the ergonomic operator handle. All operator controls are accessible without having to lift one's hand from the handle. The angle grips are designed to allow easy operation with either hand.
  • An offset steering arm provides excellent line of sight for operators. Capable of right angle stacking in aisles as narrow as 60". The straddle leg inside dimension can be set at 38" to 50" in 4" increments.
  • The electro-magnetic disc brake provides good stopping power. The fully enclosed wheel guard and flush mounted axles prevent wheel and axle damage during normal use.
  • The S22-116 has a max load capacity of 2200 lbs and a max lifting height of 116". It has a travel speed of 3.1 mph empty, and 2.5 mph when loaded. It is capable of a lifting speed up to 39 fpm when empty and up to 20 fpm loaded, with a lowering speed of 21 fpm.

Specifications

Item Model Number S22-116
Capacity 2,200 lbs. @ 24" load center
Power 24-volt DV
Max Lift Height 116"
Collapsed Height 2"
Turning Radius 54.5"
Travel Speed 3.1 mph (empty), 2.5 mph (loaded)
Battery Type (2) 12V 85AH Maintenance-free Batteries
Charger 110V Smart Charger
Battery Capacity 85AH
Tires/Wheels Drive: 8.3" x 2.8" Polyurethane | Stability Casters: 4" x 2" Polyurethane | Tandem Load: (2) 4" x 2" Polyurethane
Brakes Electro-magnetic Disc Brake
Overall Fork Dimensions 42" x 29.5"
Individual Fork Dimensions 42" x 4" x 1.5"
Fork Outer Diameter Adjustments 8" to 29.5"
Straddle Leg Inside Dimension 38" to 50" (in 4" increments)
Vehicle Dimensions 65.5" x 44"-56" x 82.5"
Weight (with Battery & Charger) 1500 lbs.

Package Contents

Big Joe S22-116 Walkie Straddle Stacker

User Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 2 year/1000 hour limited warranty on the frame, transmission, and power train. 1 year limited warranty on the battery, and 6 months on all other parts excluding wearables.
