Big Joe J0-118 Joey Zero Electric Access Vehicle 118" Max Lift Height New
Manufacturer: Big Joe
SKU: J0-118
QTY
(888) 999-1522
C
$23,121.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 5-7 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

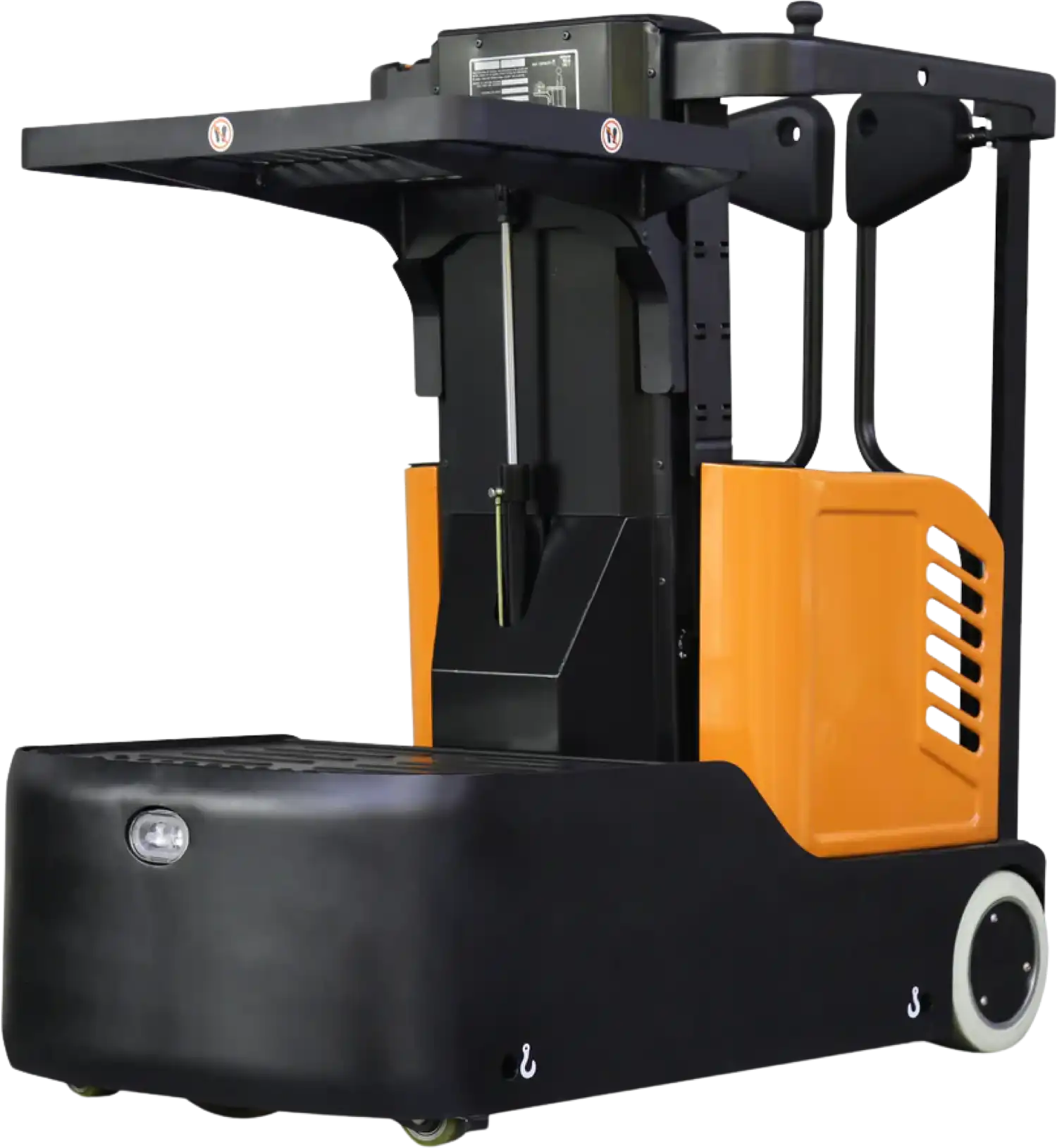

Big Joe J0-118 Joey Zero Electric Access Vehicle 118" Max Lift Height New
Product Overview
Brand new
2 year factory warranty
Manufacturer direct shipping from CA, TX, & WI
Authorized Big Joe dealer
Features
- The permanent magnet DC drive motor delivers run times of up to 4 hours of continuous operation on a single charge. Travel speeds are automatically reduced when elevated or tightly turning.
- The DC lift motor can lift the operator to a maximum elevation of 118". The operator's compartment has a maximum capacity of 300 lbs.
- This unit includes a powered front load tray with a carrying capacity of 200 lbs. The front load tray dimensions are 29" x 21", with a max elevated height of 160". The I-beam mast design with dual lifting chains ensures solid stability at height.
- The spacious 24" x 24" operator's compartment is fully enclosed by an automatic locking rear entry gate. Operator presence sensors include a foot switch and right hand sensor. The operator's compartment features a low 11" step height and 42" high railings.
- An electro-mechanical brake is installed on the front drive wheel. Two front mounted polyurethane caster wheels are adjacent. The Zero's all steel chassis supports good stability at height while loaded, and exceptional durability to extend the equipment's service life.
Specifications
| Item Model Number | J0-118 |
| Front Load Tray Capacity | 200 lbs |
| Front Load Deck Capacity | 250 lbs |
| Operator's Compartment Capacity | 300 lbs |
| Power | 24V Infinitely Variable Travel Controller |
| Operator Platform Max Height | 118" |
| Front Load Tray Max Height | 160" |
| Range of Front Load Tray | 19" |
| Collapsed Height | 54" |
| Turning Radius | 50" |
| Battery Type | (2) 12V 120AH AGM Maintenance-Free Batteries |
| Charger | 110VAC Plug-in Smart Charger |
| Tires/Wheels | Drive Tire: 8.3" x 2.8" Polyurethane | Rear Tires: 9.8" x 3.9" Non-marking Rubber |
| Brakes | Electro-mechanical Brake |
| Vehicle Dimensions | 56.5" x 29" x 54"-160" |
| Weight | 1850 lbs. |
Package Contents
Big Joe J0-118 Joey Zero Electric Access Vehicle
User Manual
Warranty
This item comes with a 2 year or 2000 hour limited warranty on the frame, transmission, and powertrain. 1 year limited warranty on the batteries, and 6 months on all other parts excluding wearables.
