Big Joe D40 Electric Pallet Truck 4,000 Lbs Capacity New
Manufacturer: Big Joe
SKU: D40
QTY
(888) 999-1522
C
$6,759.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 5-7 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 2 year/1000 hour limited warranty on the frame, transmission, and power train. 1 year limited warranty on the batteries, and 6 months on all other parts excluding wearables.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 2 year/1000 hour limited warranty on the frame, transmission, and power train. 1 year limited warranty on the batteries, and 6 months on all other parts excluding wearables.
$574.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$718.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$862.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

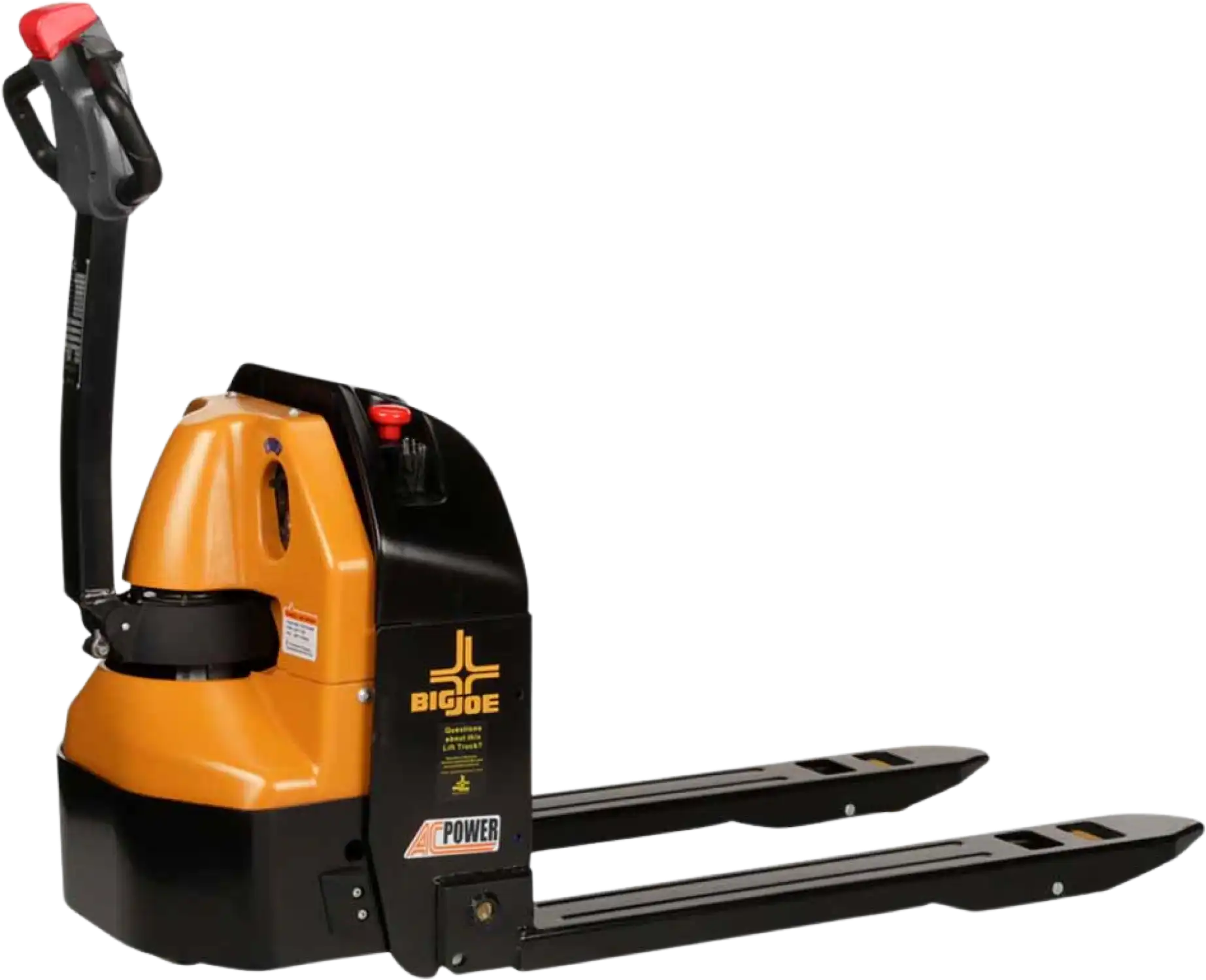

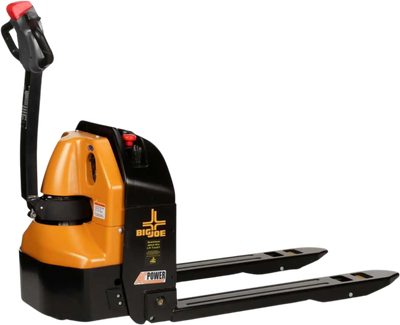

Big Joe D40 Electric Pallet Truck 4,000 Lbs Capacity New
Product Overview
Brand new
2 year factory warranty
Manufacturer direct shipping from CA, TX, & WI
Authorized Big Joe dealer
Features
- Two 12V 85AH maintenance free batteries provide up to 4 hours of run-time per charge. The 110V smart charger ensures the batteries are not overcharged when left plugged in.
- Travel, lift, and lower functions are located in the ergonomic operator handle. All operator controls are accessible without having to lift one's hand from the handle.
- The pallet truck includes a key switch to limit access to approved personnel. It also features electric braking, emergency power disconnect, and a battery charge indicator.
- The electromagnetic brake provides good stopping power and is applied when the control arm is in the vertical or horizontal handle position.
- The D40 has a max load capacity of 4,000 lbs. Variable speed from 0 to 3.5 mph when empty, and 0 to 3.4 mph loaded. Crawl speed function allows for ease of use in tight areas with the steering handle at 5° back-tilt from vertical.
Specifications
| Item Model Number | D40 |
| Capacity | 4,000 lbs. @ 24" load center |
| Power | 24V AC Electric with Transistor Controller |
| Max Lift Height | 7.5" |
| Collapsed Height | 3.25" |
| Turning Radius | 57.5" |
| Travel Speed | 3.5 mph (empty), 3.4 mph (loaded) |
| Battery Type | (2) 12V 85AH Rechargeable Internal Battery Pack |
| Battery Capacity | 85AH |
| Charger | Internal 110V |
| Tires/Wheels | Drive: 9" x 3" Polyurethane | Stability Casters: 3.3" x 1.9" Polyurethane | Load: 2.9" x 3.5" Polyurethane |
| Brakes | Electromagnetic Brake |
| Overall Fork Dimensions | 45" x 27" |
| Individual Fork Dimensions | 45" x 5.9" x 3.25" |
| Vehicle Dimensions | 64" x 27" x 47" |
| Weight (with Battery) | 650 lbs. |
Package Contents
Big Joe D40 Electric Pallet Truck
User Manual
Warranty
This item comes with a 2 year/1000 hour limited warranty on the frame, transmission, and power train. 1 year limited warranty on the batteries, and 6 months on all other parts excluding wearables.
