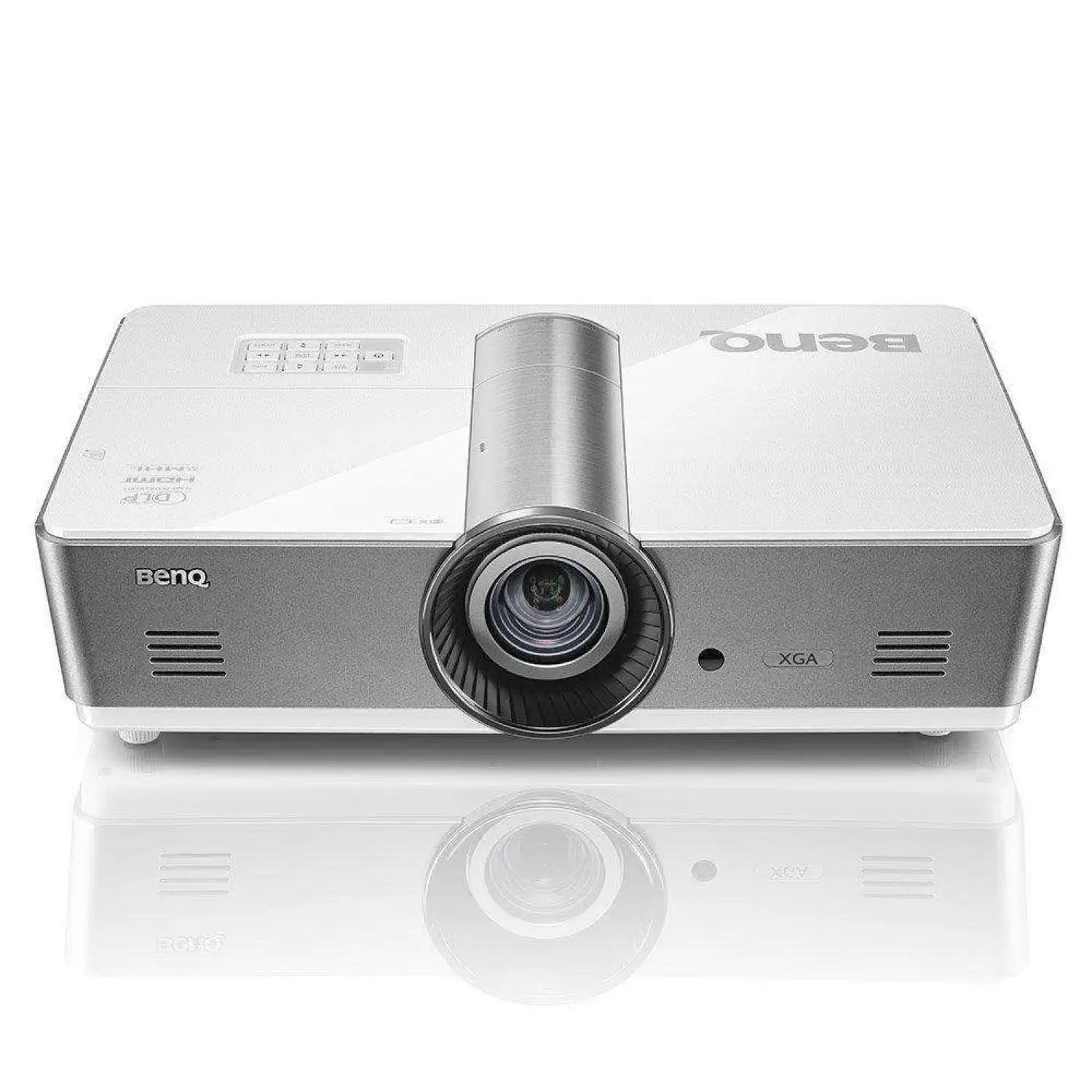

The SX920’s 5,000 lm high brightness allows presenters and participants to conduct presentations in comfortably lit medium-sized conference rooms, with uncompromised debate, collaboration, note taking and interaction to achieve the most productive meetings. The high luminance provides professional picture quality for installers to satisfy stringent corporate standards.
The SX920 delivers industry-leading levels of contrast and pixel fill factor, producing the truest blacks and exemplary image sharpness for unmatched readability in presentations and documents. High fill factor sharpens images for increased clarity on black and white documents and colorful images alike while reducing eye strain.
Powerful Flexibility for Efficient Installation
Big Zoom facilitates corporate adoption of new projection technology by making use of existing ceiling mounts and restricted spaces to deliver large-scale projected images. The SX920 can replace projectors mounted anywhere from 1.7 to 11.0 meters from the screen and project images up to 300”, avoiding costly renovation or installation downtime.
Lens shift compensates for minor miscalculations and misalignment during projector installation. Conveniently placed adjacent to the lens, this control enables vertical lens movement by 107.5%-115% within the projector chassis for perfectly aligned pictures without distortion.
BenQ's symmetrically centered lens design allows easy installation without special calculations or adjustments.
A quick-release lamp door provides IT managers convenient access for efficient lamp maintenance without removing the projector from ceiling-mounted installations.
Network Control and Management Protocol Compatibility
The SX920 is widely compatible with leading projector control systems including Crestron, AMX and PJ-Link for network control via LAN, making it simple to integrate into corporate network infrastructures. The SX920 also supports RS-232 for reliable long-distance installations, up to 15 meters, for situations without LAN infrastructure.
Wireless Presentation
MHL connectivity allows presenters to instantly share presentations and business documents directly from mobile devices via MHL cable or dongle. Also, the onboard USB port supplies 5V 1.5A power to HDMI dongles while making uninterrupted presentations.
Specifications:
Model | SX920 | ||
|
|
||
|
|
||
Native Resolution |
|
||
Brightness* (ANSI Lumens) | 5000 ANSI Lumens | ||
Contrast Ratio | 5000:1 | ||
Display Color | 1.07 Billion Colors | ||
Lens |
|
||
Aspect Ratio |
|
||
Throw Ratio |
|
||
Image Size (Diagonal) | 60"~240" | ||
Zoom Ratio | 1.6X | ||
Lamp Type | 370W | ||
Lamp Mode (Normal/ Economic/ SmartEco/ LampSave/ LumenCare)* | 2000/2500 hours | ||
Keystone Adjustment |
|
||
Projection Offset |
|
||
Resolution Support |
|
||
Horizontal Frequency | 15 - 102KHz | ||
Vertical Scan Rate |
|
||
Interface |
Computer In (D-sub 15pin) x 1 (Share with component) Monitor Out (D-sub 15pin) x 1 Composite Video In (RCA) x 1 S-Video In (Mini DIN 4pin) x 1 HDMI x 2 (one MHL) Audio In (Mini Jack) x 1 Audio L/R in (RCA) x 1 Audio Out (Mini Jack) x 1 Microphone-in (Mini Jack) x 1 20W Stereo Speaker LAN (RJ45) x 1 (LAN Control) USB (Type A) x 1 (1.5A power supply) USB (Type mini B) x 1 (Download) 12V Trigger x 1 RS232 (DB-9pin) x 1 IR Receiver x 2 |
||
Dimensions (W x H x D mm) |
|
||
HDTV Compatibility |
|
||
Video Compatibility | NTSC, PAL, SECAM | ||
Weight | 4.9 kg (10.8lbs) | ||
Audible Noise (Normal/ Economic Mode) | 36 / 33 dBA (Normal/Economic mode) | ||
Power Supply | AC100 to 240V, 50 to 60 Hz | ||
Power Consumption |
|
||
On-Screen Display Languages |
Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ |
||
Accessories (Standard) |
Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide Lens Cover x 1 Warranty Card (by region) VGA (D-sub 15pin) Cable |
||
Accessories (Optional) |
Spare Lamp Kit P/N: 5J.JDP05.001 Ceilling Mount P/N: 5J.JAM10.001 QCast Dongle P/N: 5J.JCK28.A01 Remote Control RCA022 P/N: 5J.JA606.001 3D Glasses P/N: 5J.J9H25.001 |
