Aston Technologies ASL-FR9011 Full-Rise Scissor Lift 9,000 Lbs 72" Electric Lock Release 110V New
Product Overview

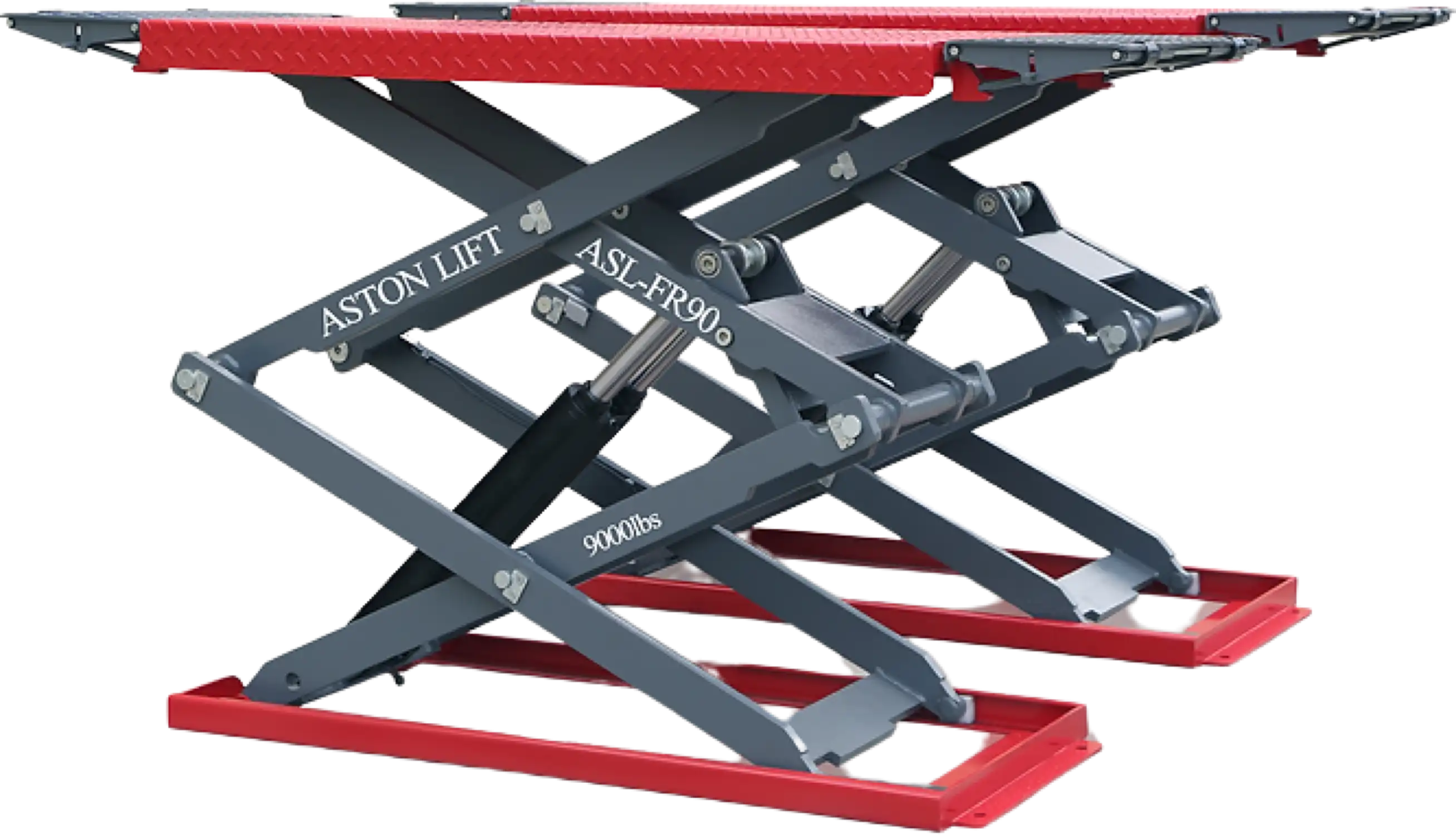

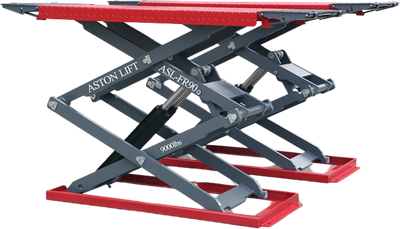

Aston Technologies Full-Rise Scissor Lift is capable of lifting up to 9,000 lbs with steady raising and lowering, effortlessly supporting a wide range of vehicles. This scissor lift is equipped with a 57" length platform, and drive-on ramps that lock into position to serve as platform extensions. The electric release safety locking system, cylinders with anti-surge valves, and a height limit switch help to ensure safe operation.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from VA
Authorized Aston Technologies dealer
Features
- With a 9,000 lbs lifting capacity, this lift provides steady raising and lowering and makes no noise when lowered to the ground, contributing to a quieter and more efficient workshop environment.
- This lift features a four cylinder design with anti-surge valves. Additionally, an auxiliary oil return system and oil injection hole work to prevent rust if not used for a long time and require less maintenance.
- Equipped with a height limit switch, 24V safe control system, and an electric released safety locking system for secure operation, this lift prioritizes operator safety.
- This lift has a maximum lifting height of 72" and a platform lenght of 59". The drive-on ramps lock into position as platform extensions, providing added stability during use.
- The powder coated finish provides enhanced durability for long-term use, this lift is built to withstand daily use in demanding environments. Self-lubricated bushings and bearings further reduce maintenance requirements, ensuring reliable performance over time.
Specifications
| Model | ASL-FR9011 |
| Voltage | 110V, 60Hz, 1 PH |
| Capacity | 9,000 lbs |
| Air Supply | 0.6-0.8Mpa |
| Rated Oil Pressure | 22Mpa |
| Max. Lifting Height | 72" |
| Min. Height | 4.3" |
| Platform Length | 57.09" |
| Platform Width | 25.59" |
| Lifting Time | <50s |
| Lowering Time | <60s |
| Overall Length | 82.68" |
| Overall Width | 81.5" |
| Overall Weight | 1,608 lbs |
Package Contents
Aston Technologies ASL-FR9011 Full-Rise Scissor Lift
User Manual
Warranty
This item comes with a 1 year limited factory warranty.
