Arccaptain CUT65 MP Plasma Cutter Non-HF with CNC Interface 120/240V App Control New
Product Overview

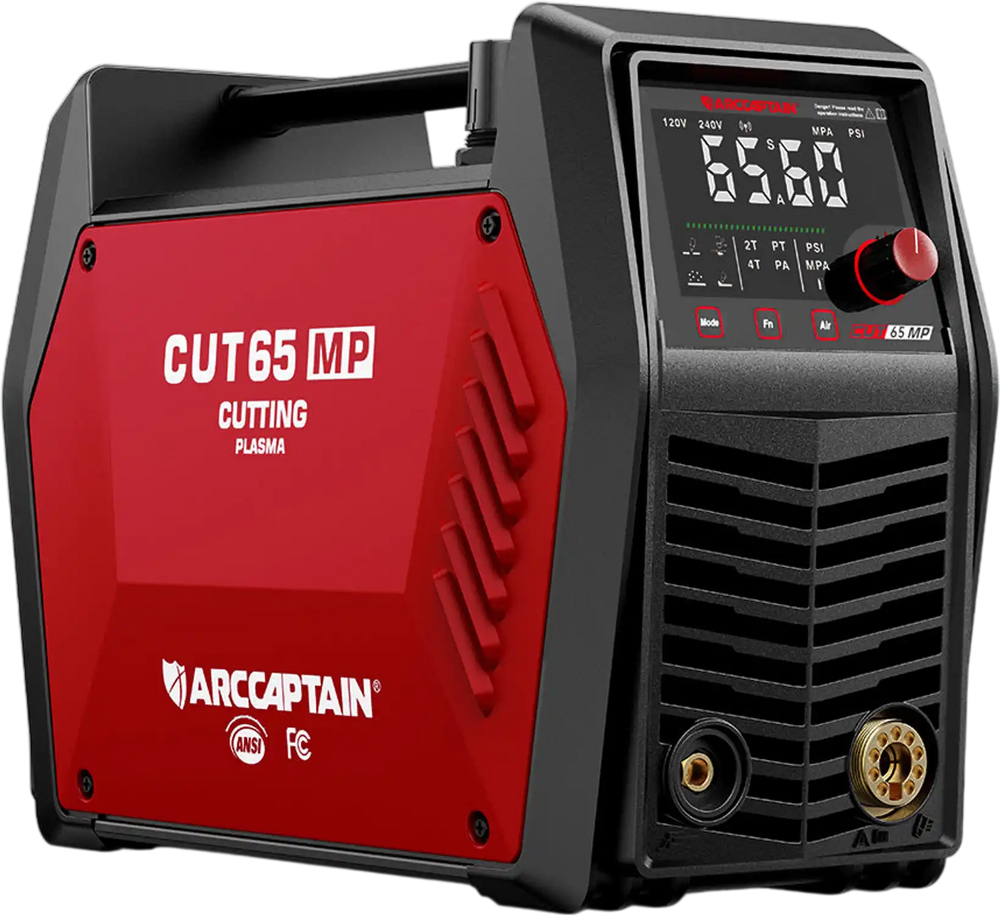

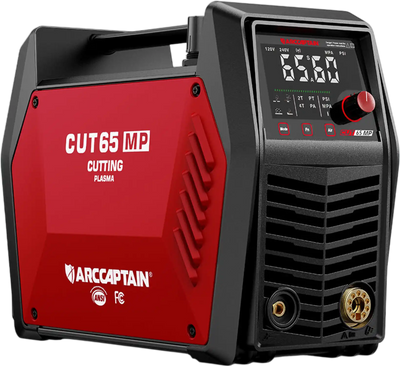

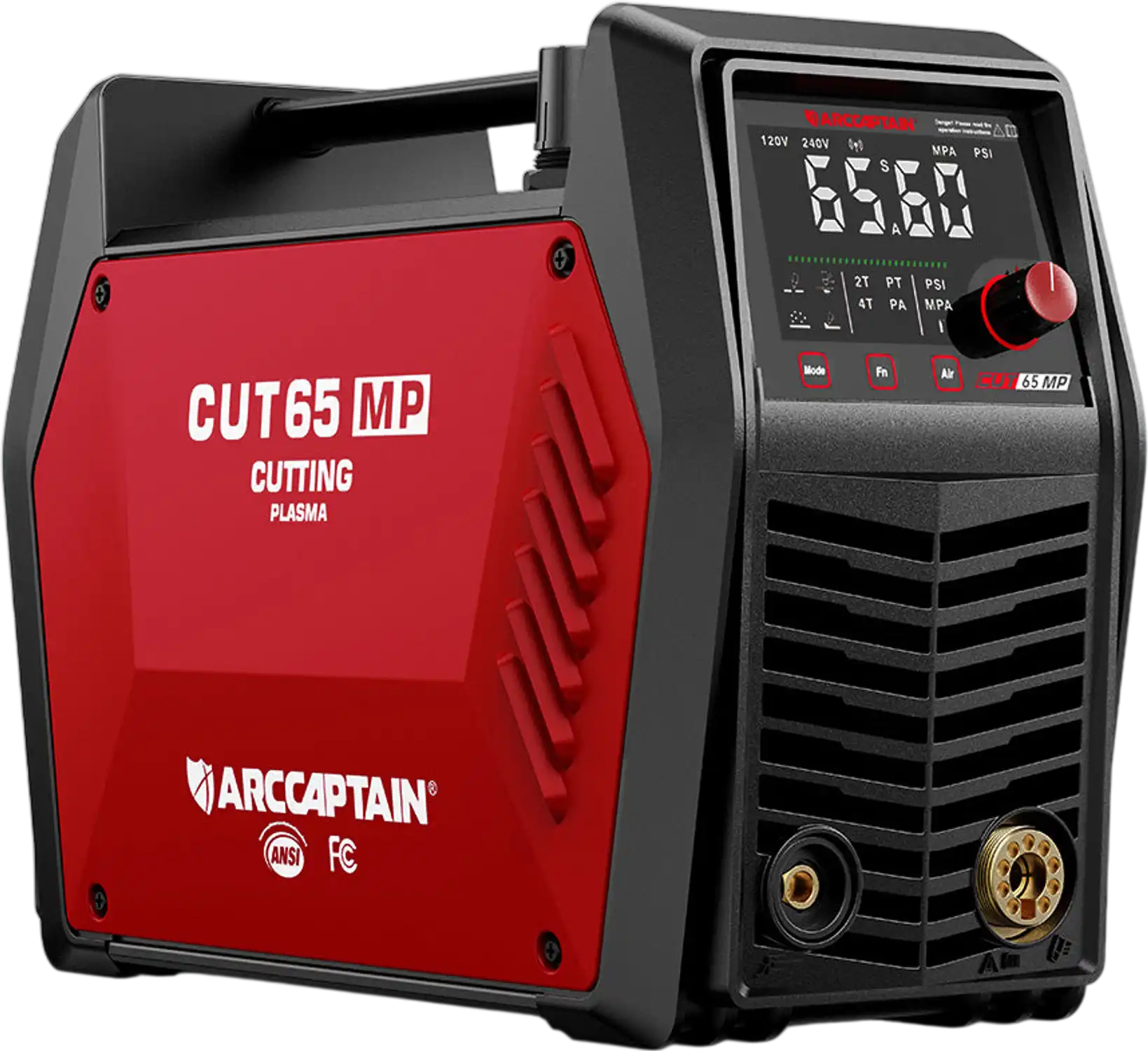

The Arccaptain CUT65MP is a 65-amp plasma cutter with a built-in CNC interface for both manual and automated cutting applications. It supports 120V and 240V input power and offers four operating modes: plasma cutting, grid cut mode, plasma gouging, and rust removal. Its non-HF non-contact pilot arc helps start cleanly on painted, rusty, or coated surfaces while extending consumable life. The machine is compatible with PlasmaCam, Torchmate, Langmuir Systems, Mach3, and LinuxCNC. A large LED display, built-in air gauge, and smart fan system help improve usability and performance.
Brand new
3 year factory warranty
Manufacturer direct shipping from CA
Authorized Arccaptain dealer
Features

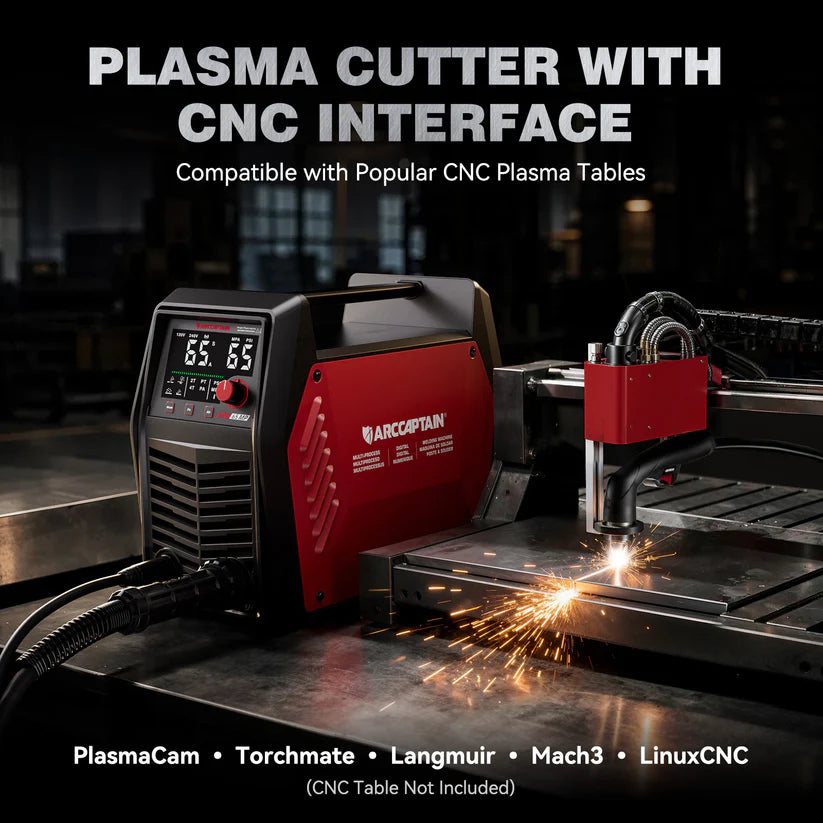

- Cut with CNC Precision: Integrates with popular CNC systems for more precise, repeatable, and efficient cutting.

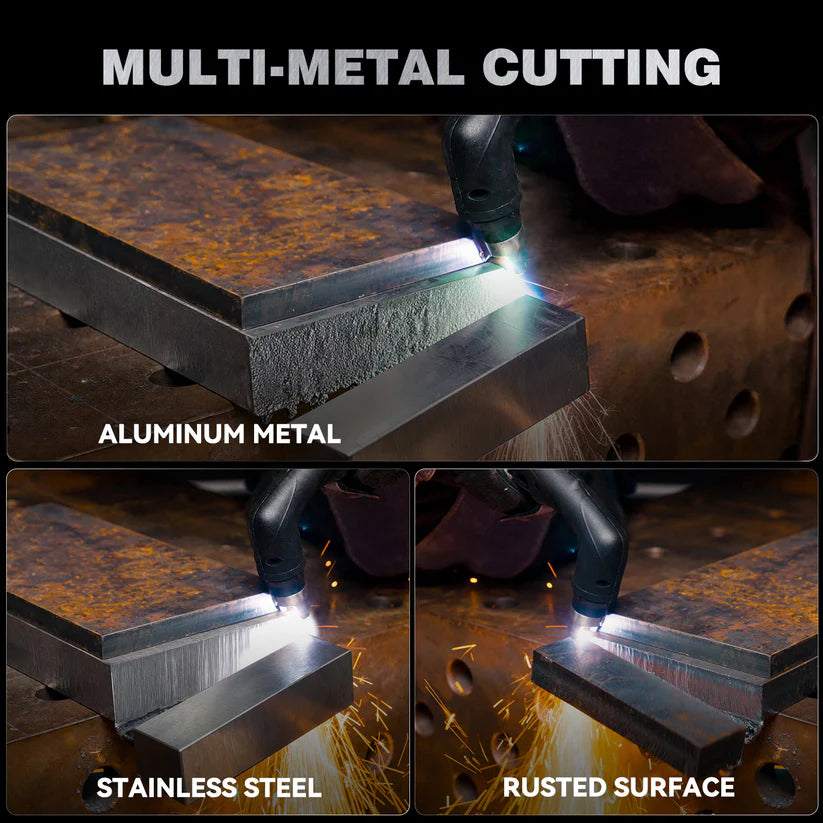

- Powerful Cutting Performance: Cuts 3/4" clean (1-1/4" max) at 240V, 3/8" clean (1/2" max) at 120V — ready to use.

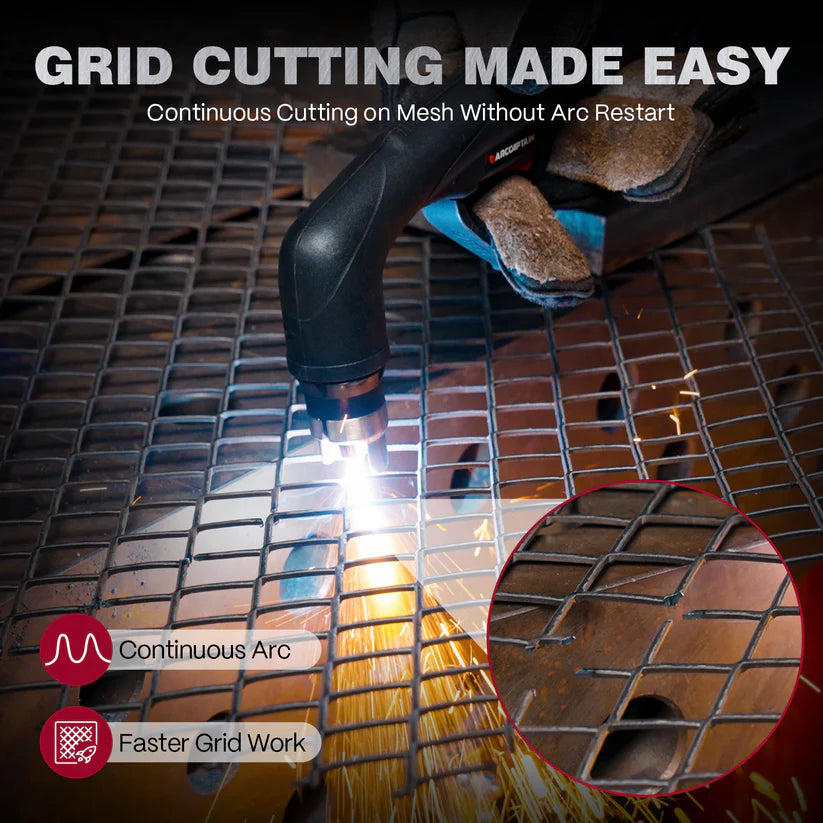

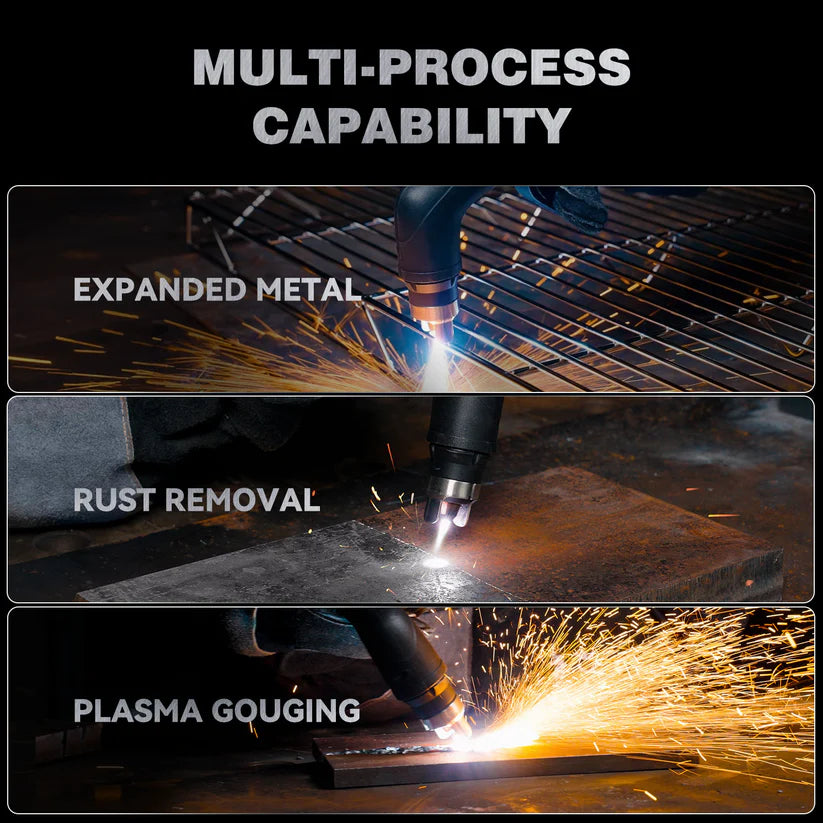

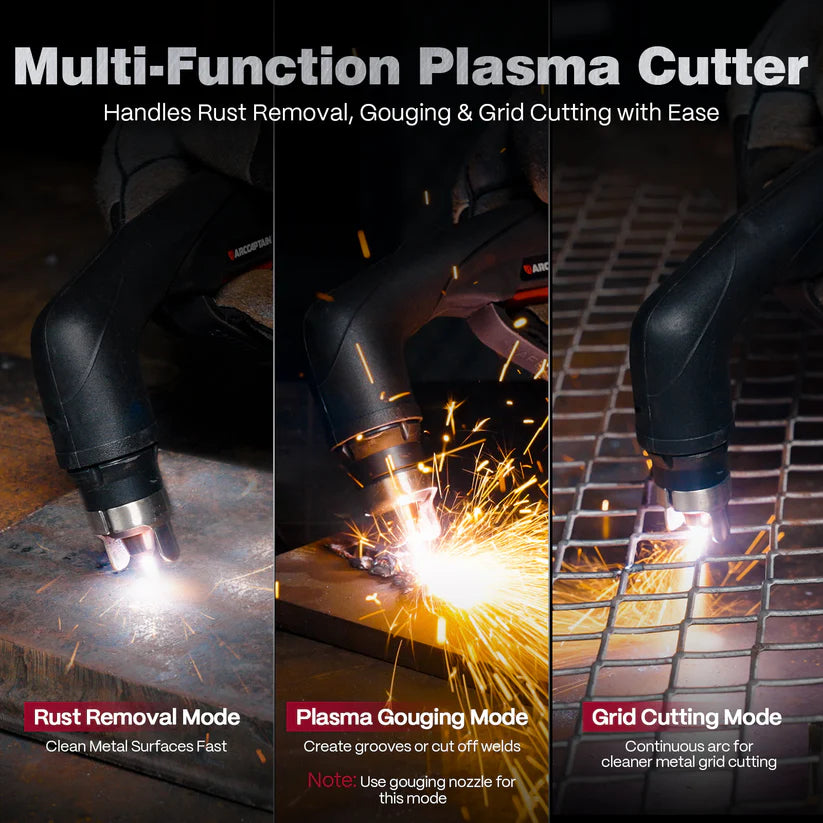

- 4 Modes in One Machine: Plasma cutting, grid cut, gouging, and rust removal — stop switching tools mid-job.
- Dual Voltage: Works on a standard household outlet right out of the box. Switch to 240V in your shop and the CUT65MP opens up to 3/4" clean cut capacity.

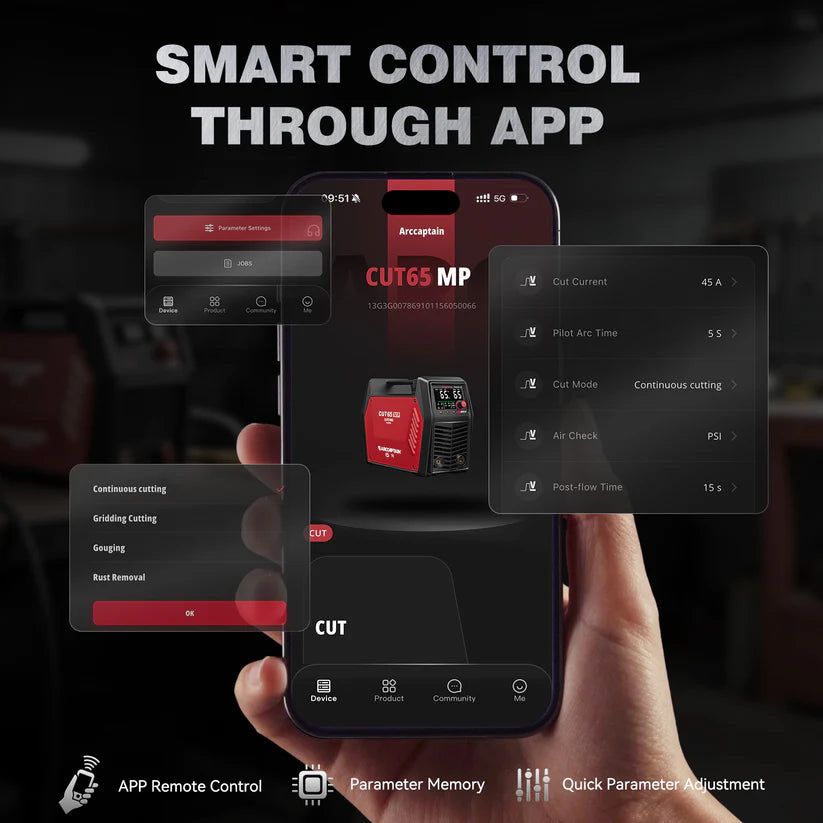

- Bluetooth App Control: Adjust settings remotely from your phone — no need to walk back to the panel.
Specifications
| Input Voltage | 120V / 240V |
| Input Frequency | 50 / 60 Hz |
| Rated Input Capacity | 12 kVA at 240V; 5.5 kVA at 120V |
| Power Factor | 0.7 |
| Rated Duty Cycle | 60% |
| Output Current Range | 20-65A at 240V; 20-35A at 120V |
| Arc Ignition Mode | Non-HF non-contact |
| Post-flow Time | 3-15 seconds |
| Gas Pressure Range | 0.2-0.5 MPa / 55-75 PSI |
| Insulation Grade | H |
| Cooling Mode | Air cooling |
| Enclosure Ingress Protection | IP21S |
| Efficiency | 85% |
| Max Clean Cut — 240V | 3/4" (20mm) |
| Max Severance Cut — 240V | 1-1/4" (32mm) |
| Max Clean Cut — 120V | 3/8" (10mm) |
| Max Severance Cut — 120V | 1/2" (13mm) |
| Compatible CNC Systems | PlasmaCam, Torchmate, Langmuir Systems, Mach3, LinuxCNC |

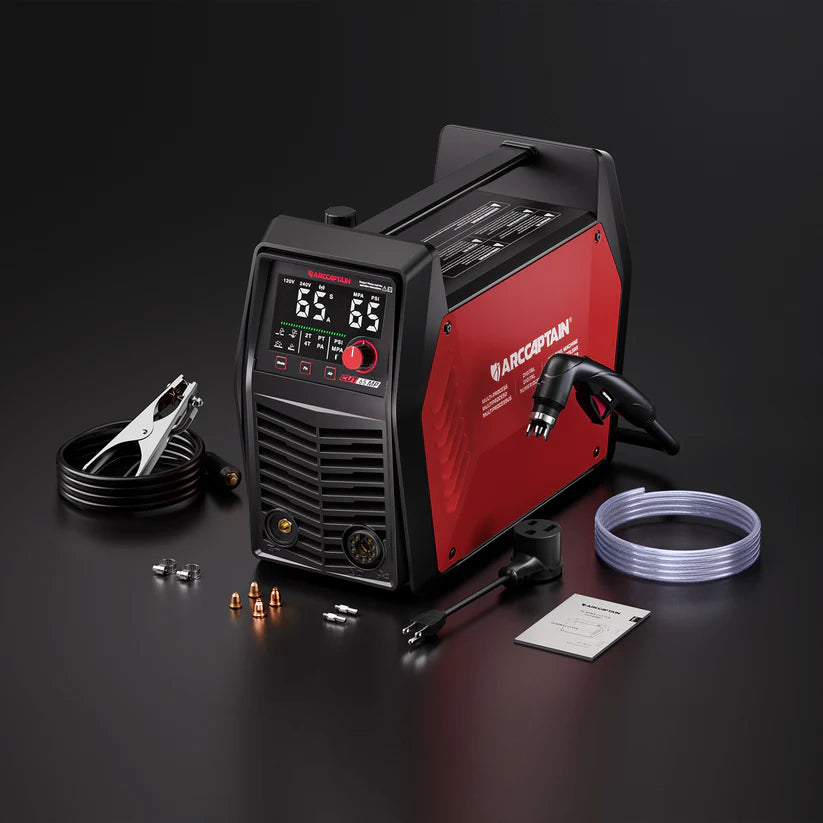

Package Contents
CUT65 MP Plasma Cutter
IPT60 Cutting Torch
Ground Clamp
Air Hose
Shoulder Strap
Power Adapter
User Manual
Warranty
This product comes with a 3 year factory warranty.
