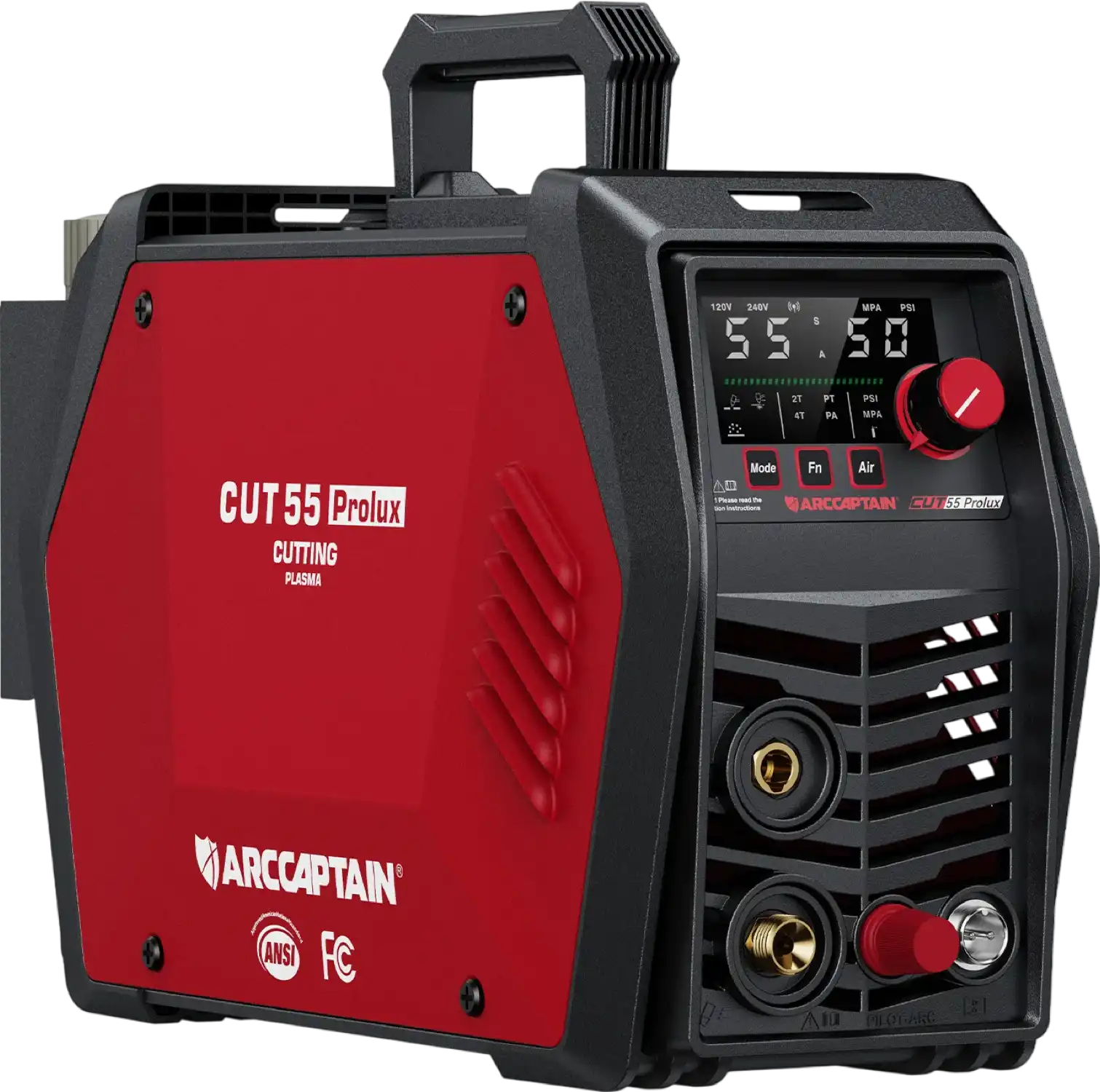

Arccaptain CUT55 Prolux Plasma Cutter HF Start Pilot Arc 55 Amp 120V/240V New
Product Overview

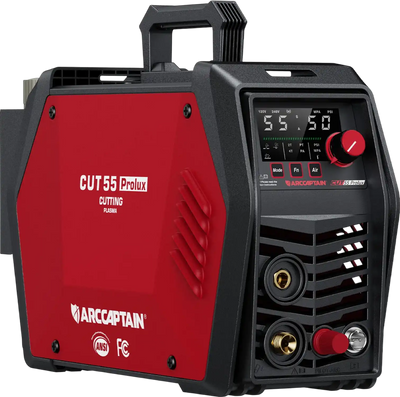

Arccaptain's CUT55 Prolux is a pro-grade plasma cutter with a 7/8" clean cut capacity, real-time air pressure monitoring, and smart modes like mesh cutting, all in a rugged, portable unit. It cuts steel up to 7/8" (22mm) thick at 240V and handles stainless steel, carbon steel, aluminum, and copper with ease. This cutter features app control, allowing you to adjust parameters and monitor real-time status from your phone. Advanced control features enhance performance, so you can adjust pilot arc time, post-flow time, and 2T/4T modes.
Brand new
3 year factory warranty
Manufacturer direct shipping from CA
Authorized Arccaptain dealer
Features
- Impressive Cutting Thickness: Equipped with an upgraded MCU, this plasma cutter offers significantly improved cutting performance. It cuts steel up to 7/8"(22mm) thick at 240V and handles stainless steel, carbon steel, aluminum, and copper with ease. The machine produces smooth edges with minimal slag, reducing the need for post-grinding. (Cutting Range: 120V: 9–12mm | 240V: 14–22mm).
- App Control: When the plasma cutter is farther away, remote control via the app becomes essential. The app lets users adjust parameters, monitor real-time performance, and check machine status easily. It also supports switching cutting modes, saving settings, and accessing FAQs—ideal for beginners and future maintenance.
- Expanded Metal & Rust Removal: This plasma cutter supports precise expanded metal for detailed shapes and patterns. It also features pilot arc rust removal, effectively cleaning metal surfaces without damaging the base material and reducing prep time.
- Smart Air Pressure Detection: Equipped with an intelligent air pressure monitoring system that continuously measures and displays real-time pressure on the screen. The system instantly alerts you if the pressure is too high, too low, or unstable, ensuring safer and more efficient cutting. Before each use, you can manually switch to air pressure detection mode to check if the pressure is within the normal range.
- PA/PT & 2T/4T Adjustment: This plasma cutter offers advanced control features to enhance both performance and usability. PA adjusts pilot arc time—longer for mesh cutting, shorter to save consumables. PT sets the post-flow time (5–15s), allowing the torch to cool properly and further protecting consumables. For operation control, 2T mode enables quick, flexible cuts, while 4T mode minimizes hand fatigue during longer cutting sessions.
Specifications
| Model | CUT55 Prolux |
| Rated Input | AC120V / AC 240V |
| Power Factor | 0.7 |
| Rated Duty Cycle | 60% |
| No-load Voltage | 330V |
| Output Current Range | 120V: 20~35A | 240V: 20~55A |
| Arc Ignition Mode | HF Non-Contact |
| Post-flow Time | 5-15s |
| Gas Pressure Range | 120V: 55 PSI | 240V: 75 PSI |
| Insulation Grade | H |
| Cooling Mode | Air Cooling |
| Enclosure Ingress Protection | IP21S |
| Dimensions | 18.3" x 6.1" x 9.6" |
| Weight | 11.88 lbs |
Package Contents
CUT55 Prolux Plasma Cutter
Air Compressor Filter (installed on machine)
Cutting Torch & Accessories
Ground Clamp
Gas Hose
Hose Clamp
120/240V Adapter
Shoulder Strap
User Manual
Warranty
This product comes with a 3 year factory warranty.
