Arccaptain CUT55 Plasma Cutter Non-HF Pilot Arc 55 Amp Dual Voltage 110/220V New
Product Overview

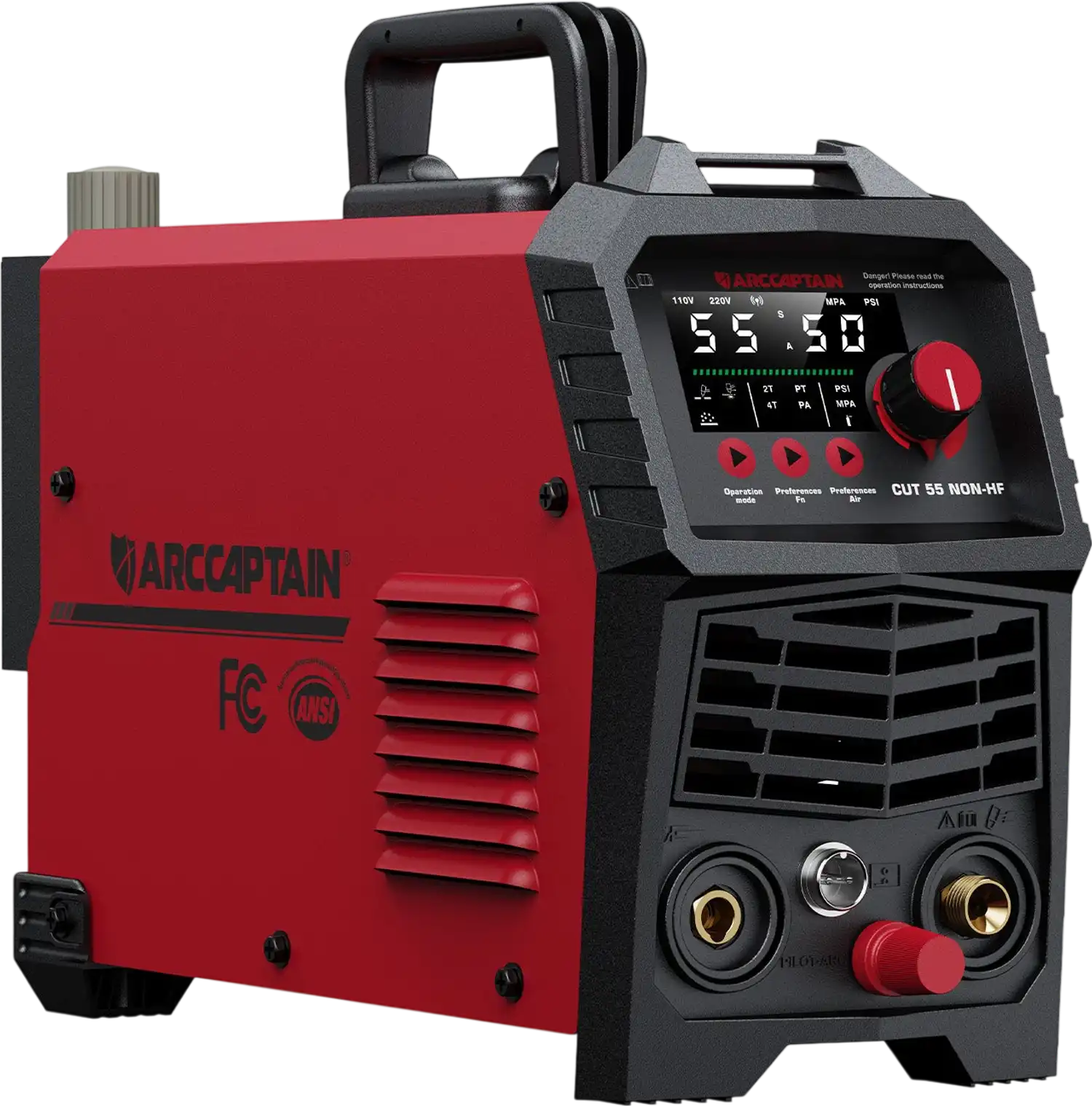

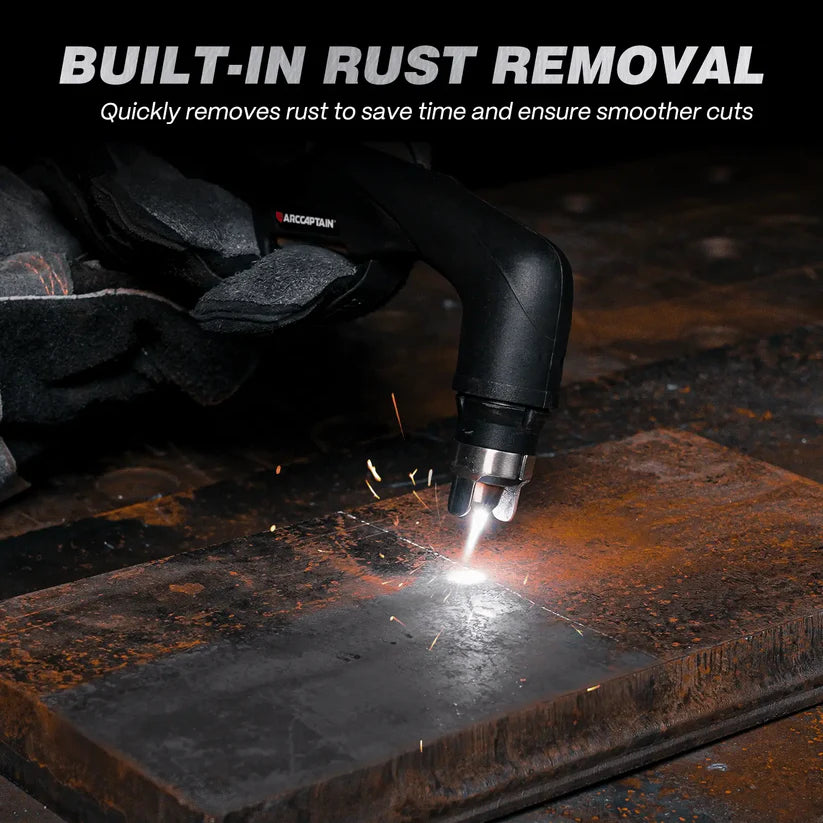

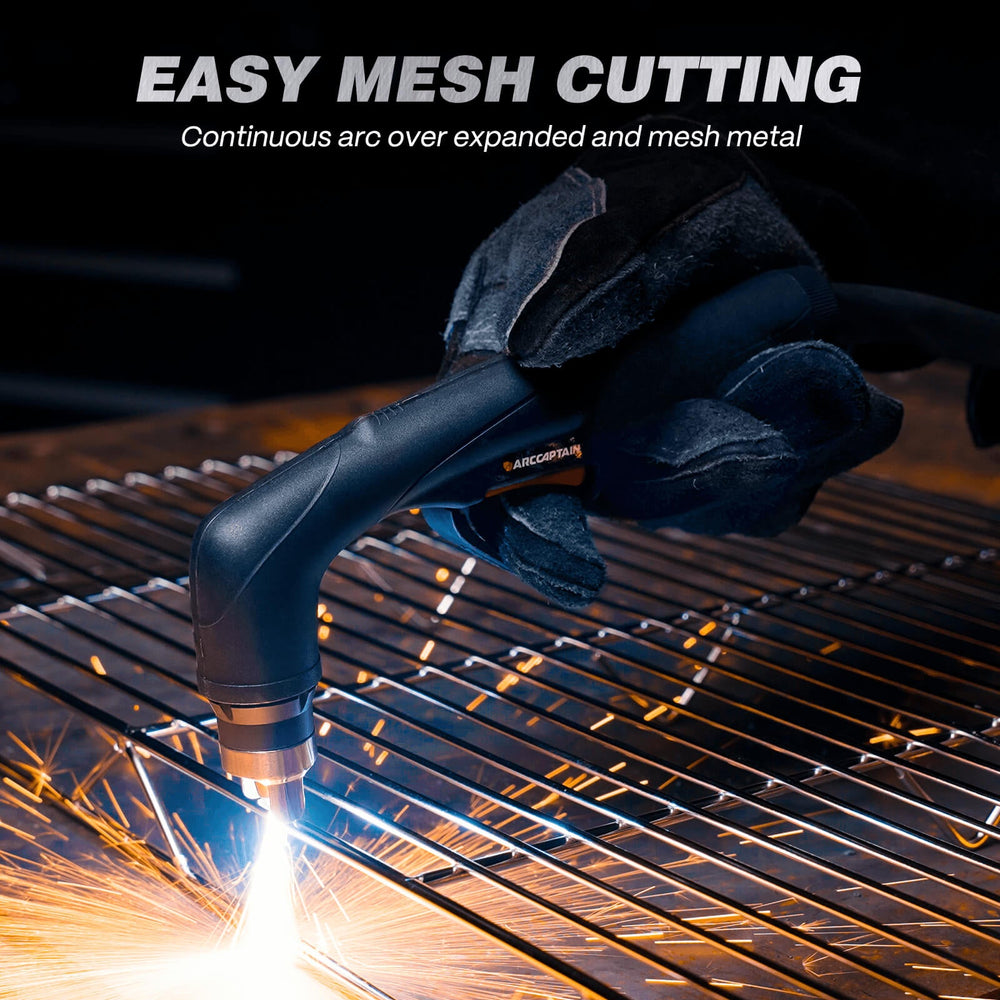

The Arccaptain CUT55 NON-HF is a dual-voltage plasma cutter designed for modern metal cutting in shops, garages, and field applications. Its non-high-frequency blow-back start helps protect nearby electronics while delivering stable arc ignition. The machine features a large smart display, intelligent air pressure detection, and support for 2T/4T and PA/PT modes for easier operation. It delivers an ideal clean cut up to 3/5" on 220V and a maximum severance cut up to 1". Mesh cutting and arc cleaning functions add versatility for automotive, farm, and fabrication work.
Brand new
2 year factory warranty
Manufacturer direct shipping from CA
Authorized Arccaptain dealer
Features

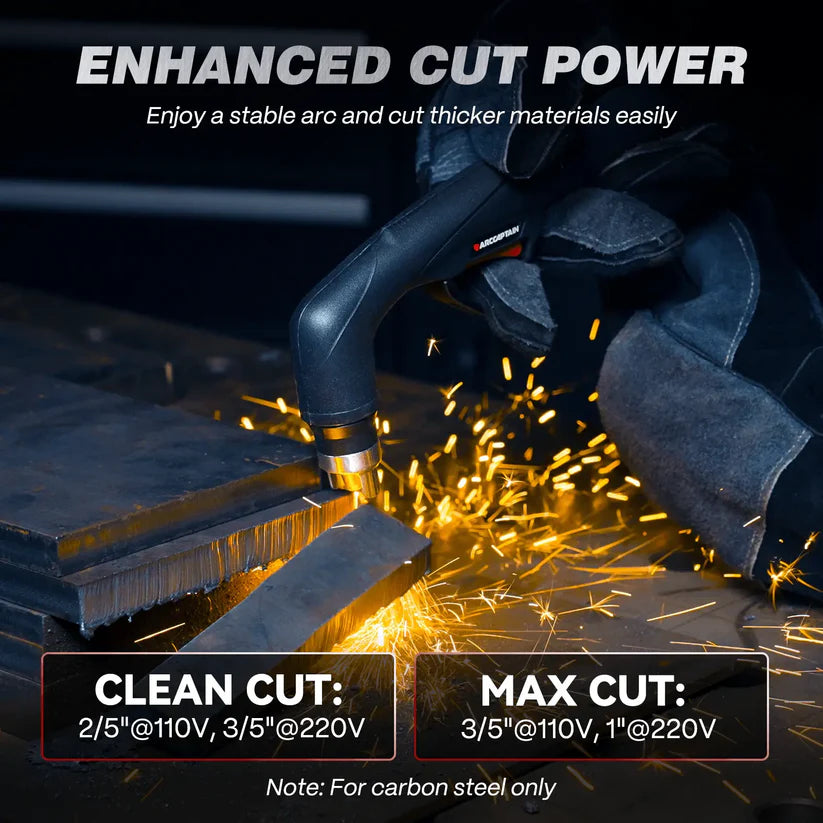

- Clean Cut with Real Power: Cuts 18 mm (11/16") clean, and up to 26 mm (1") max on 240 V. Plenty of power for shop work, repair, or fabrication jobs.

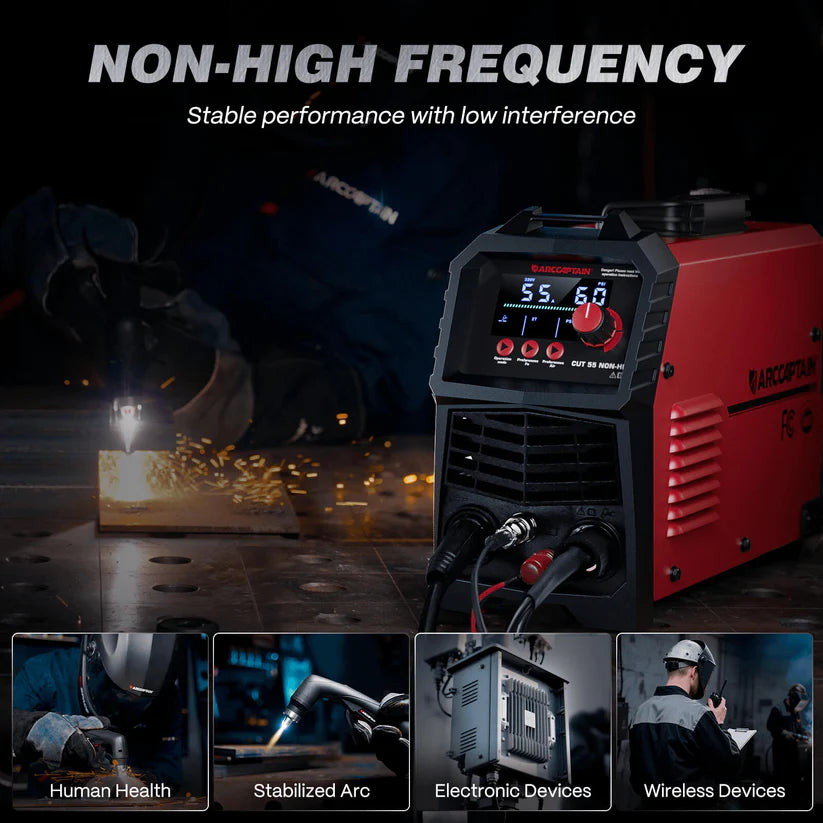

- No High-Frequency — Safe for All Worksites: The non-HF design won’t mess with computers, solar systems, or other electronics. Starts easier, holds a steady arc, and is great for DIY or beginner welders.
- Safe and Reliable Quality: Tested and certified by ANSI and FCC, backed by a 2-year warranty. Every unit passes multiple safety checks — built tough for long-term use.

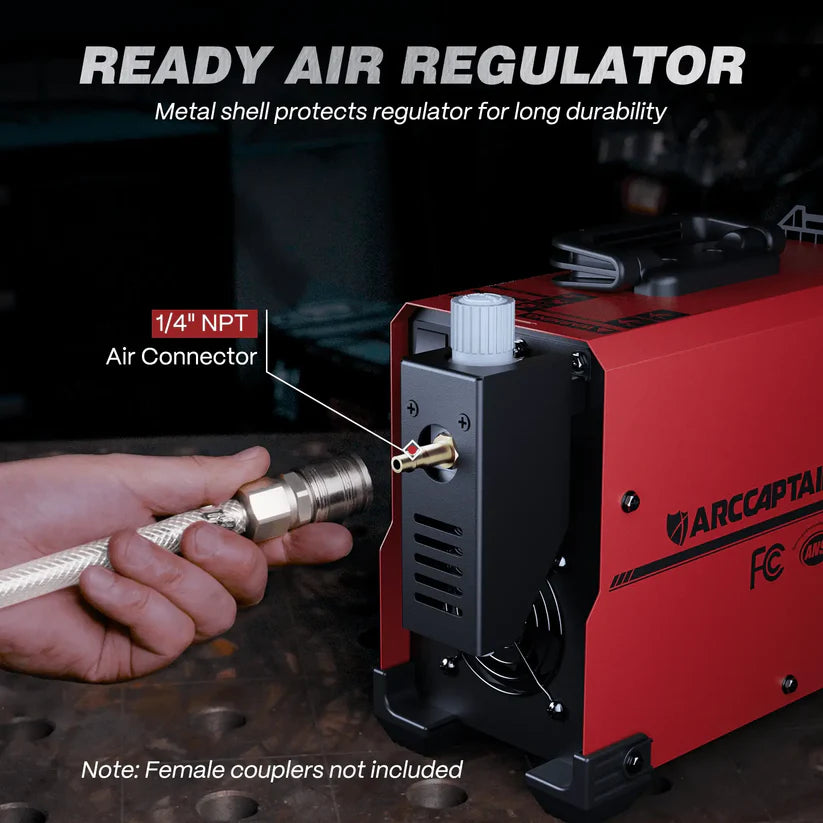

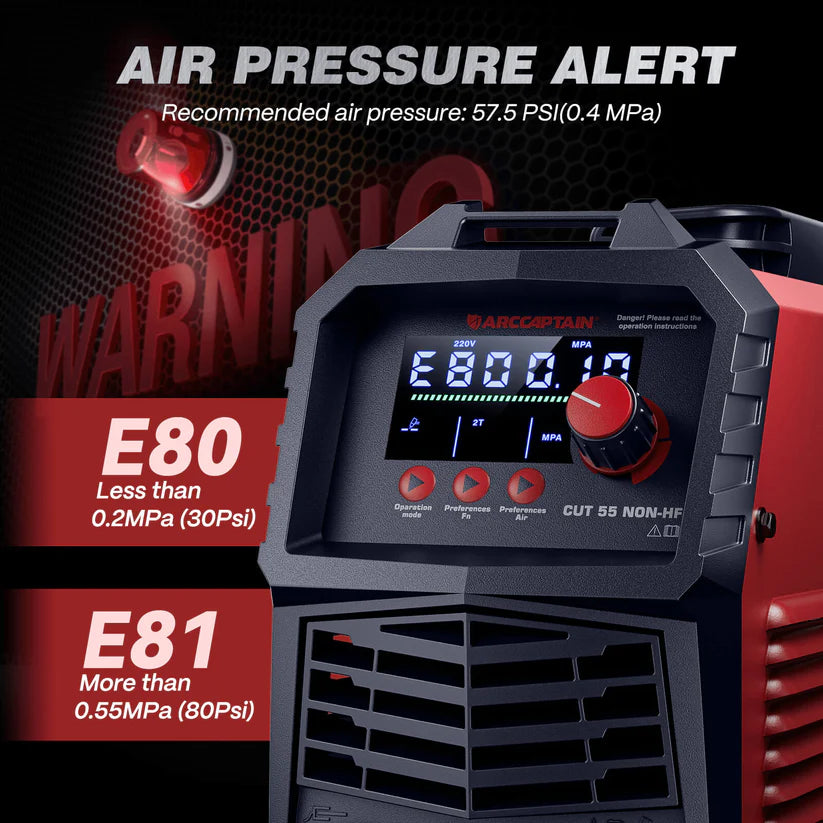

- Easy to Use for Beginners and DIY: Simple setup with pressure display, 2T/4T, and PA/PT modes, plus built-in air pressure check to prevent misfires. Includes a separate accessory box and a standard 1/4" NPT quick connector.
Specifications
| Input Voltage | AC220V 50/60Hz / AC110V 50/60Hz |
| Rated Input Capacity | 9.2 kVA at 220V / 5.5 kVA at 110V |
| Power Factor | 0.7 |
| Rated Output | 55A / 100V at 220V; 35A / 94V at 110V |
| Rated Duty Cycle | 60% |
| No-load Voltage | 310V |
| Output Current Range | 20–55A at 220V; 20–35A at 110V |
| Arc Ignition Mode | NON-HF Non-Contact |
| Post-flow Time | 5 s |
| Gas Pressure Range | 0.21–0.49 MPa / 30.5–71.0 PSI |
| Insulation Grade | H |
| Cooling Mode | Air Cooling |
| Enclosure Ingress Protection | IP21S |
| Efficiency | 85% |
| Maximum Cutting Thickness | 1" at 220V; 9/16" at 110V |
| Ideal Clean Cut Thickness | 11/16" at 220V; 1/2" at 110V |
Package Contents
CUT55 NON-HF Plasma Cutter
Air Compressor Filter

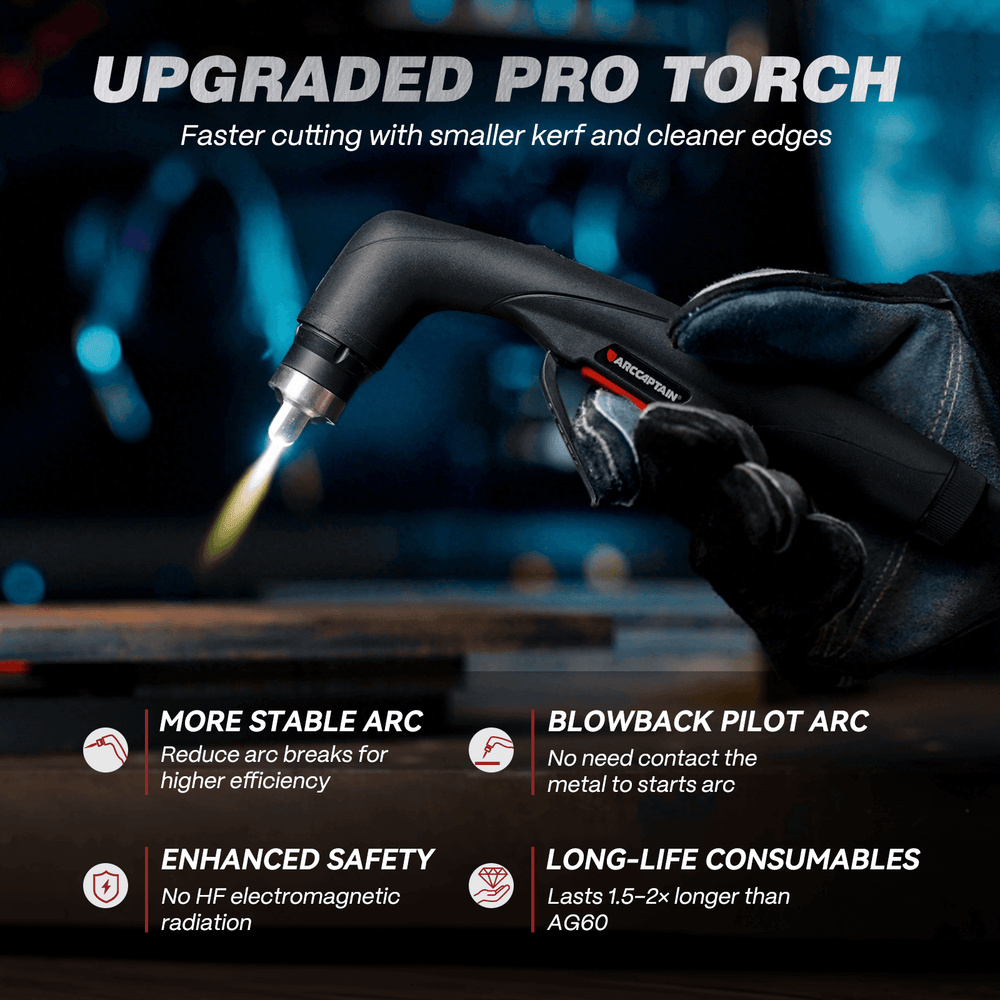

10' IPT60 Cutting Torch & Accessories
Ground Clamp
Gas Hose
(2) Hose Clamp
Strap
Operator's Manual
Warranty
This product comes with a 2 year factory warranty.
