Arccaptain ARC205 Pro Welder Stick Lift TIG 205A Synergic IGBT 120/240V App Control New
Product Overview

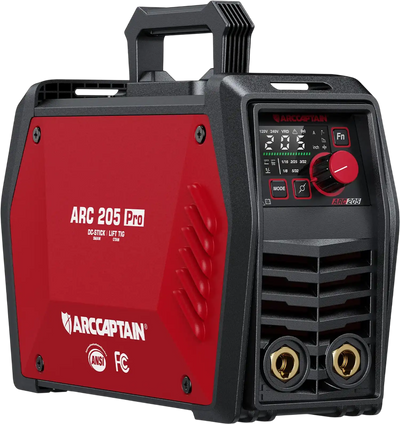

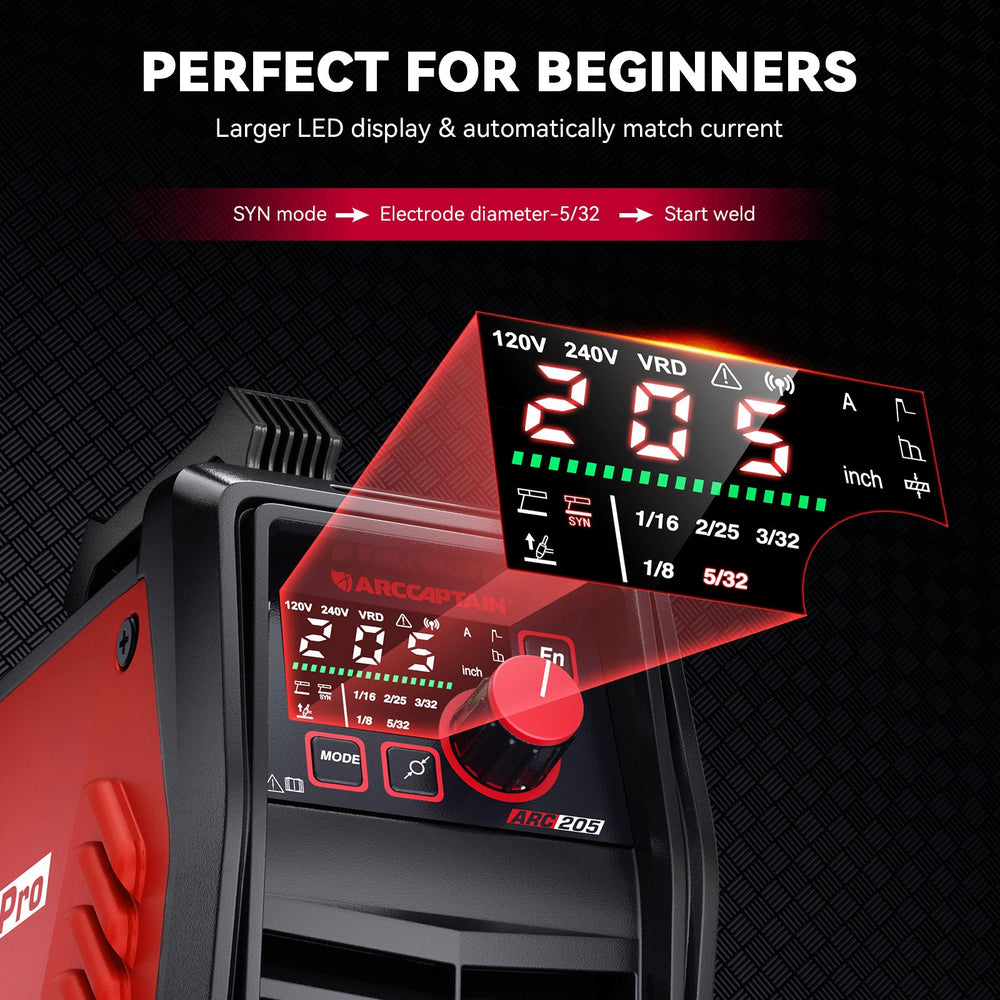

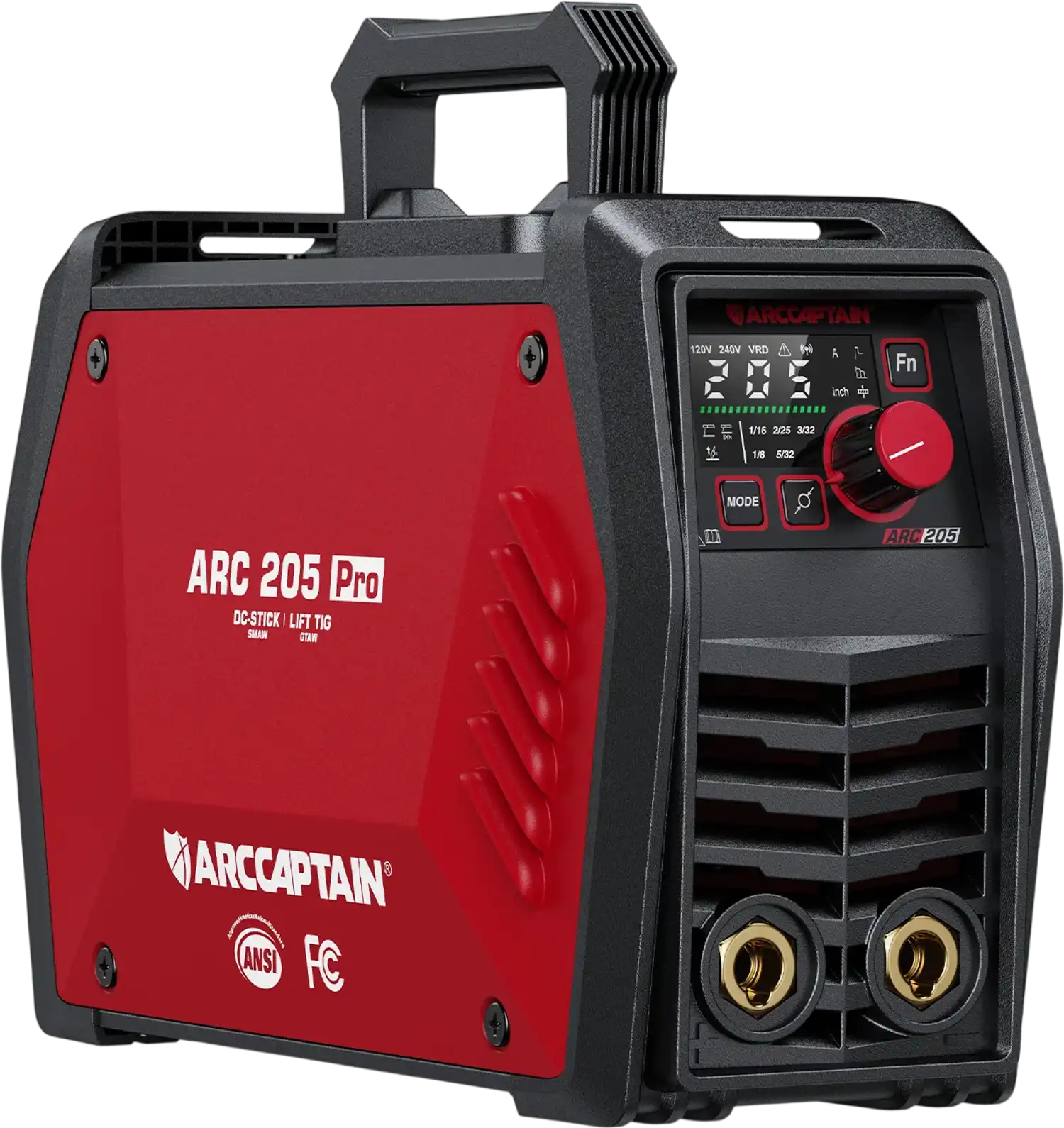

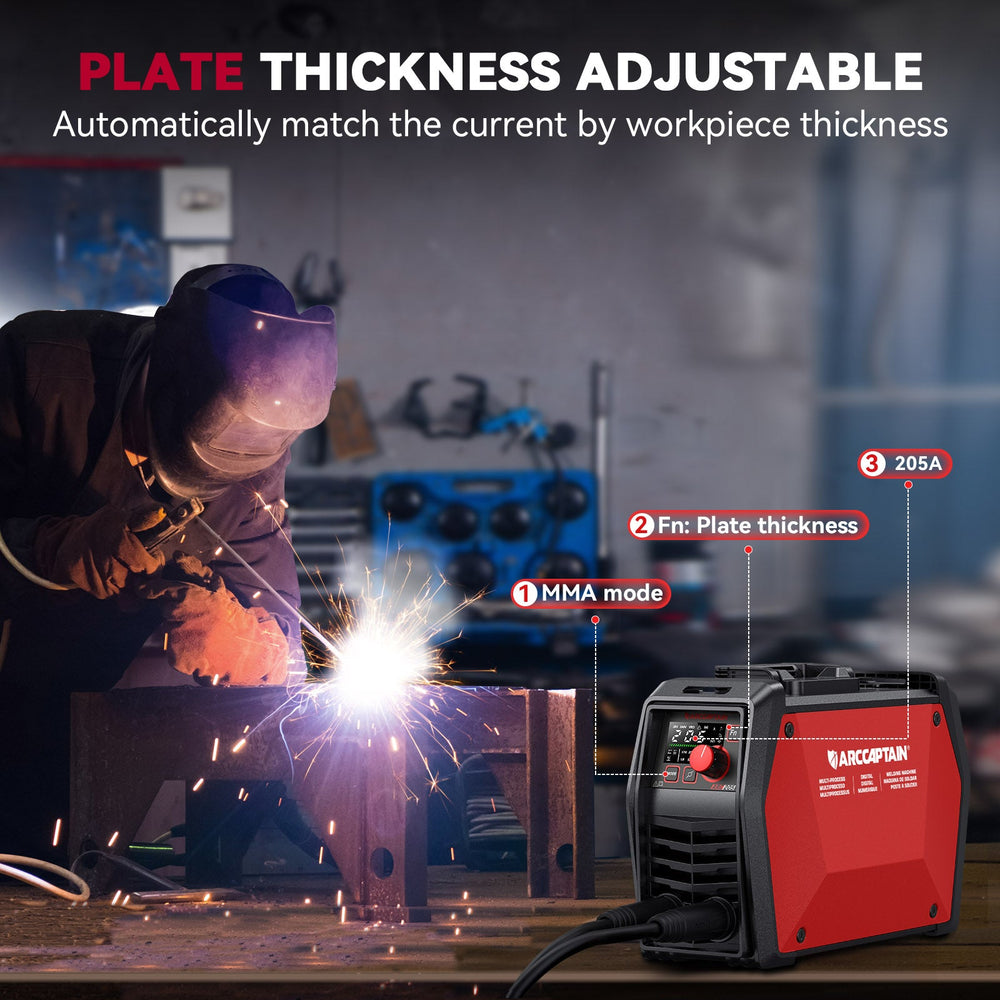

The Arccaptain ARC205 Pro is a dual-voltage stick welder built for both beginners and experienced users who want portable power and smart welding control. Its SYN function automatically adjusts current based on electrode diameter to simplify setup and improve weld consistency. The machine also supports Lift TIG welding and features advanced protections for stable operation. Compact sizing, light weight, and inverter technology make it suitable for jobsite work, maintenance, and home fabrication.
Brand new
3 year factory warranty
Manufacturer direct shipping from CA
Authorized Arccaptain dealer
Features
- Compatible with Common Electrodes: Supports 6010, 6011, 6013, and 7018 rods, including cellulose electrodes — suitable for structural, home repair, and farm work. Tip: Bake 6010/6011 rods for better arc stability.
- Stick & Lift TIG 2-in-1 Welding: Supports both Stick and Lift TIG welding (TIG torch not included), giving you more flexibility for different welding tasks.
- Industry-First App Support: Control welding parameters remotely and save your favorite settings for future use — boosting workflow efficiency by up to 80%.
- Localized Parameter Setup: Ready to use out of the box with complete accessories, offering excellent cost-performance ratio.

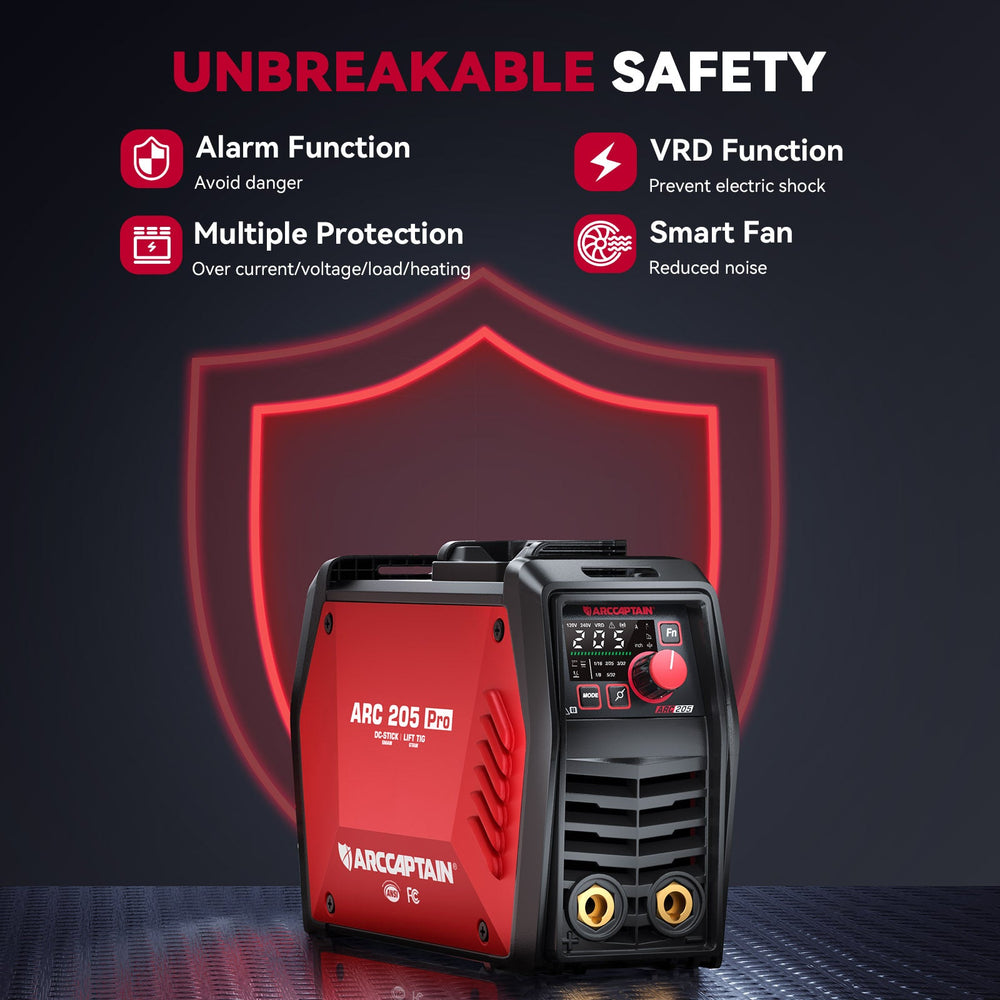

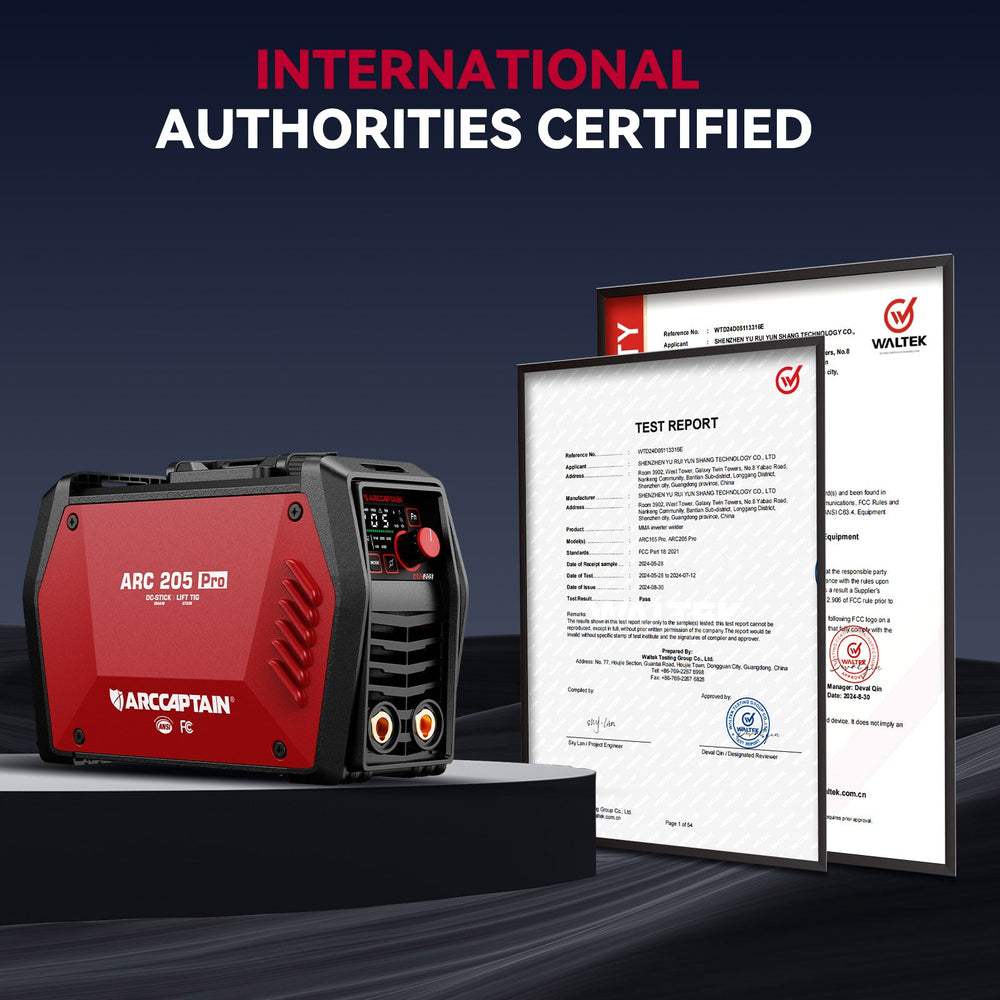

- Full Protection & Warranty: Overheat, over-voltage, and overload protection built in. Certified to FCC and ANSI standards and backed by a 3-year warranty.
- Portable, Durable, and Ready to Work: Weighs only 8.2 lbs with included strap and dust cover — built for mobility, with smart fan cooling and reinforced casing.
Specifications
| Model | ARC205 Pro |
| Rated Input Voltage | AC 120V / AC 240V |
| Input Frequency | 50/60Hz |
| Rated Input Power | 6 kVA at 120V / 9.4 kVA at 240V |
| Welding Current Range (MMA) | 20-150A at 120V / 20-205A at 240V |
| Welding Voltage Range (MMA) | 20.8-26.0V at 120V / 20.8-28.2V at 240V |
| Welding Current Range (TIG) | 20-150A at 120V / 20-205A at 240V |
| Welding Voltage Range (TIG) | 10.8-16.0V at 120V / 10.8-18.2V at 240V |
| Hot Start Current Range | 0-60A |
| Arc Force Current Range | 0-100A |
| Rated Duty Cycle | 60% |
| No-Load Voltage | 85V |
| VRD Voltage | 12V |
| Overall Efficiency | 80% |
| Protection Grade | IP21S |
| Power Factor | COSφ=0.7 |
| Insulation Grade | H |
| Standard | ANSI/NEMA/IEC 60974-1 |

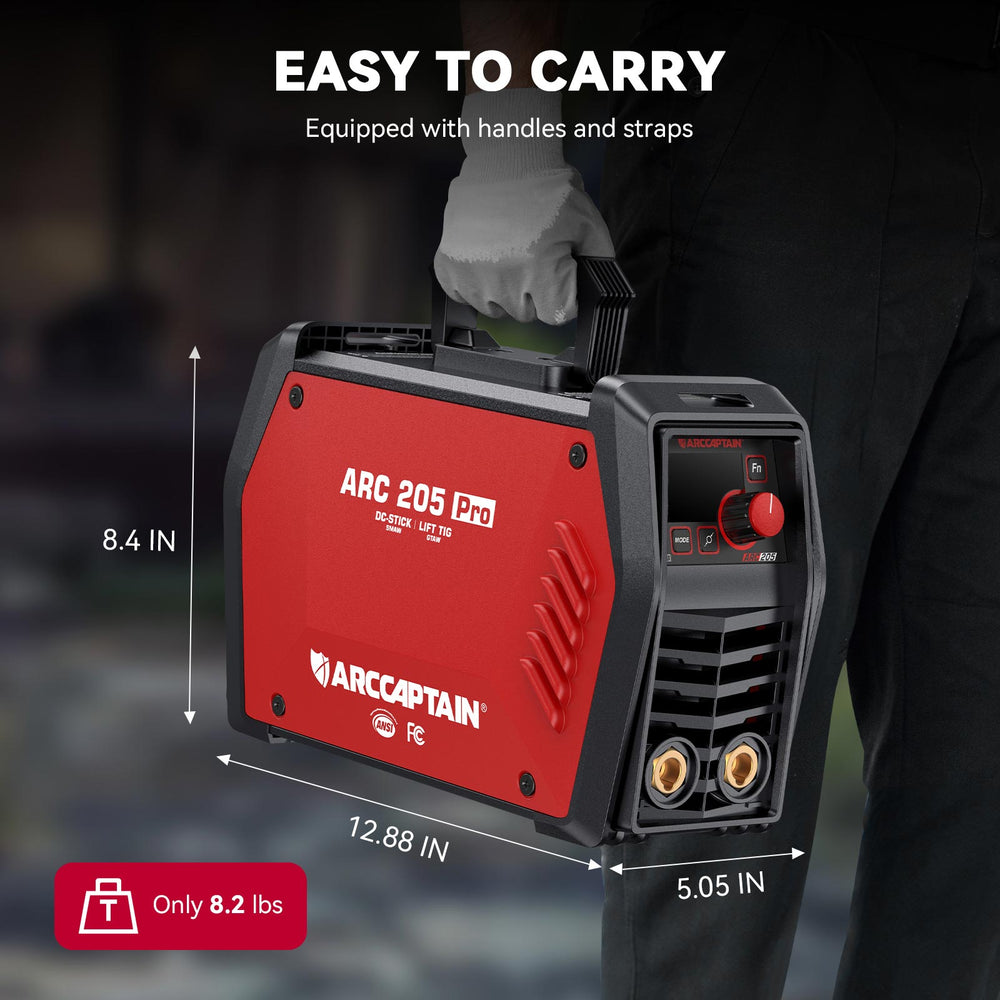

| Dimensions | 12.88 x 5.05 x 8.4 in |
| Net Weight | 8.30 lbs |
| Applicable Electrode | 1/16"-1/8" at 120V / 1/16"-5/32" at 240V |

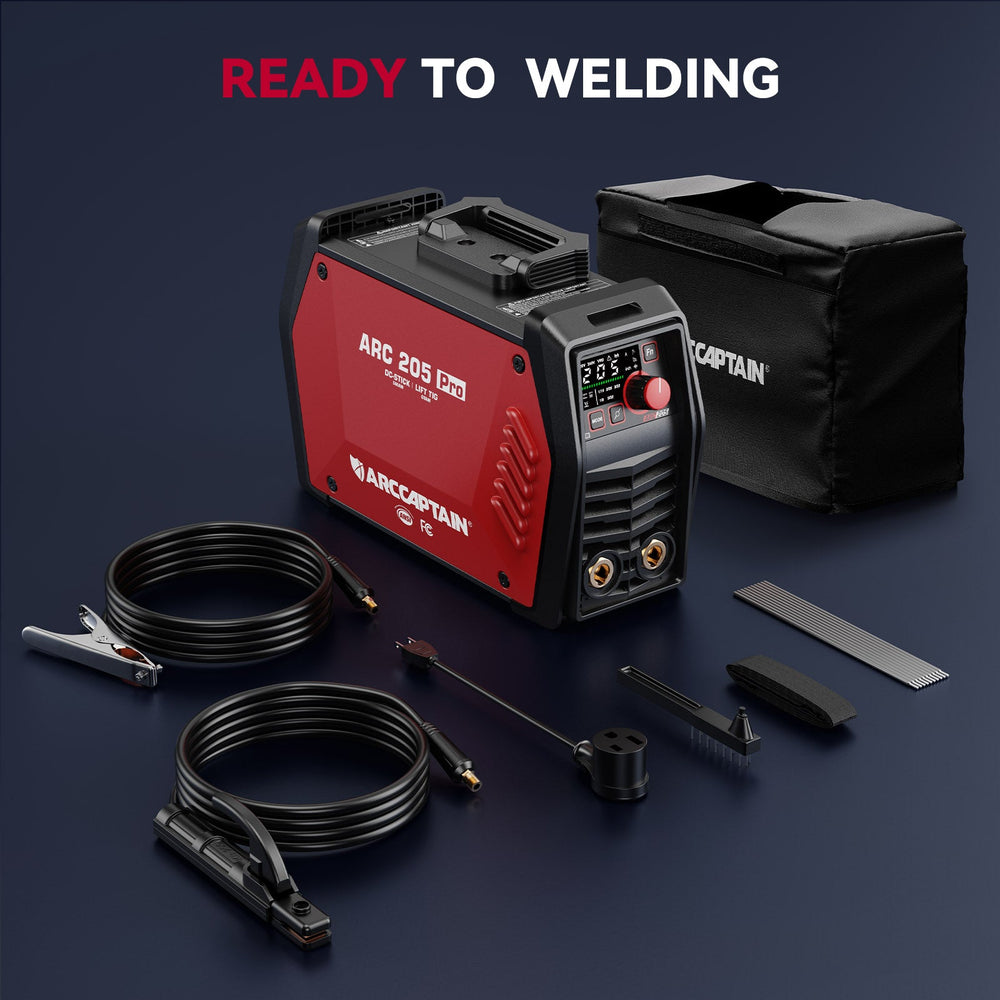

Package Contents
ARC205 Pro Welder
User Manual
Electrode Holder
Ground Clamp
Adapter 240V to 120V
Shoulder Strap
Wire Brush
Welding Rod E6013
Warranty
This product comes with a 3 year factory warranty.
