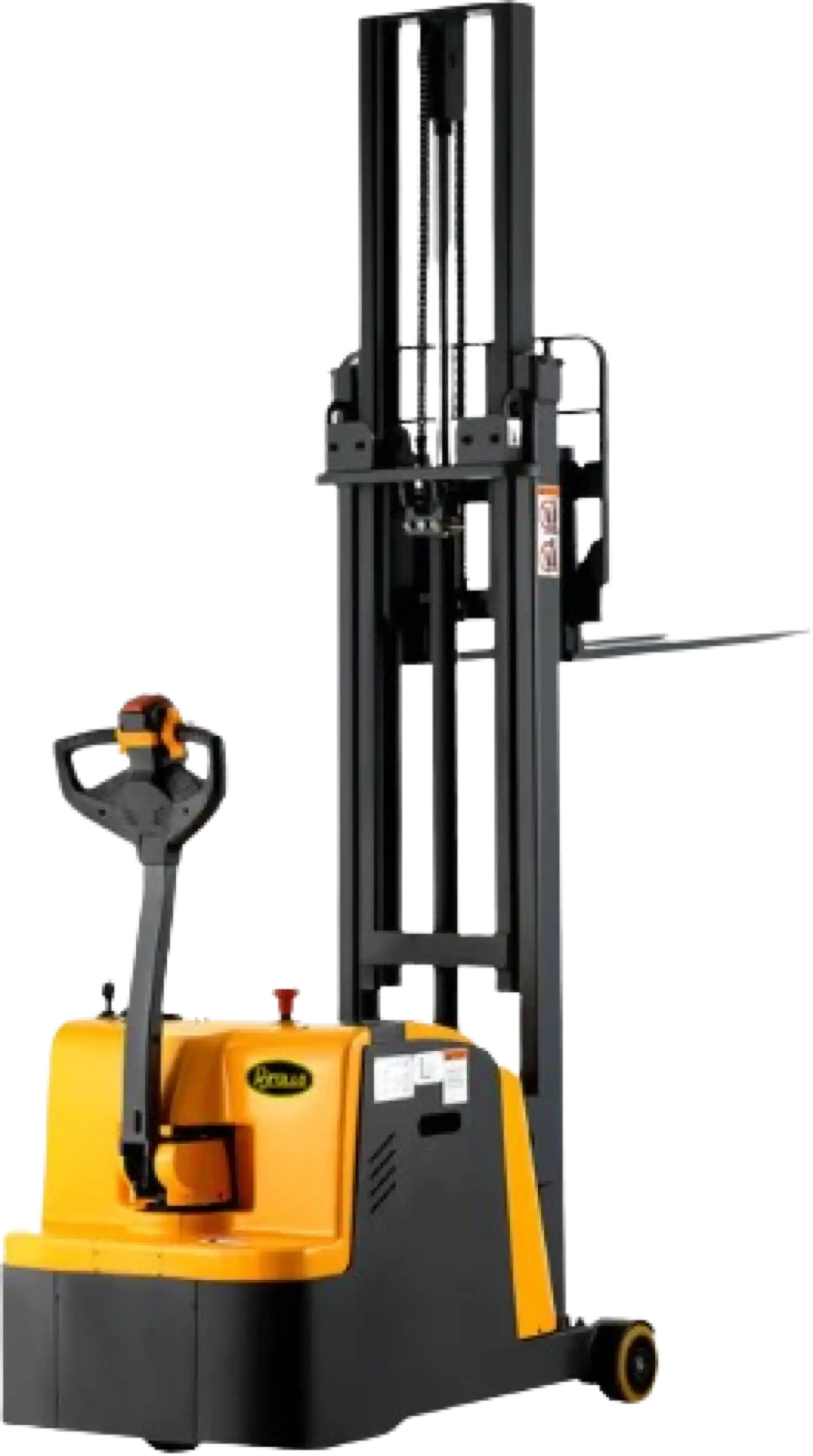

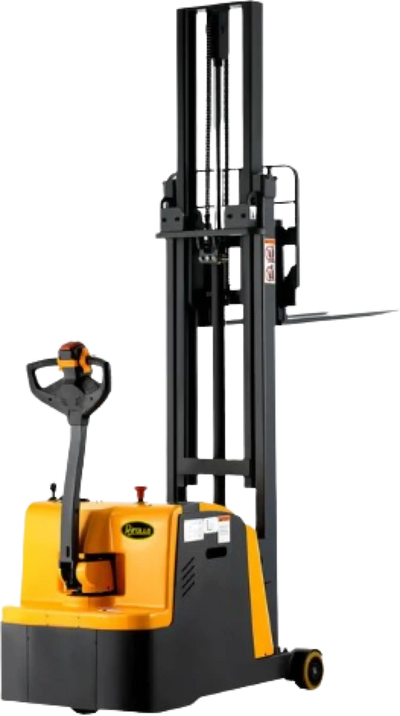

Apollolift A-3043 2200 lbs. Straddle Legs 98" High Counterbalanced Electric Stacker New
Manufacturer: Apollolift
SKU: A-3043
QTY
(888) 999-1522
$12,230.00
C
$10,387.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Ships in 1-2 business days
Manufacturer Direct Shipping. Must have means to unload as item is too large for a liftgate
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Apollolift A-3043 2200 lbs. Straddle Legs 98" High Counterbalanced Electric Stacker New
Product Overview
This Stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp. Stacker can be manually pushed and pulled or use powered lifting and lowering.
Brand new and manufacturer direct
1 year manufacturer's warranty
Ships from manufacturer in CA or GA
Fast processing with free shipping
Authorized Apollolift dealer
Features
- 650-watt drive motor, 2,200-watt lift motor.
- Perfect for approaching racks and trucks, as there are no straddle legs to obstruct to close approach.
- With upright walking function, especially suitable for narrow aisle.
- 2 minutes will replacement thanks to the wheel because of the upper horizontal structure design.
- 4-5 hours service per charge: two 12-volt, 105 Ah rechargeable GEL batteries
- 110V Built-in charger.
- Long handle structure makes truck steering light and flexible.
- Thoughtful mast design for wide viewing angles.
Specifications
| FORKS | |
| Thickness | 1'' |
| Width | 3.9'' |
| Length | 37.4 |
| Fork width range | 8.6-25.4'' |
| SPEED | |
| Lifting speed (laden/unladen) | 0.11/0.15 m/s |
| Lowering speed (laden/unladen) | 0.85/0.9 m/s |
| DIMENSIONS | |
| Overall Length | 92.76" |
| Overall Width | 33.3'' |
| Recommended Aisle Width | 113.38"/ 9.45 feet |
| Turning Radius | 52.52" |
| Load Center | 15.7" |
| Gradeability (laden/unladen) | 5%/10% |
| MAST | |
| Mast Height Lowered | 71.3" |
| Mast Lifting Height | 98" |
| Mast Height Raised | 123.3" |
| Mast tilt (forward/backward) | 1°/3° |
Package Contents
Counterbalanced Electric Stacker
Owners Manual
Warranty
This item comes with a 1 year manufacturer's warranty.
