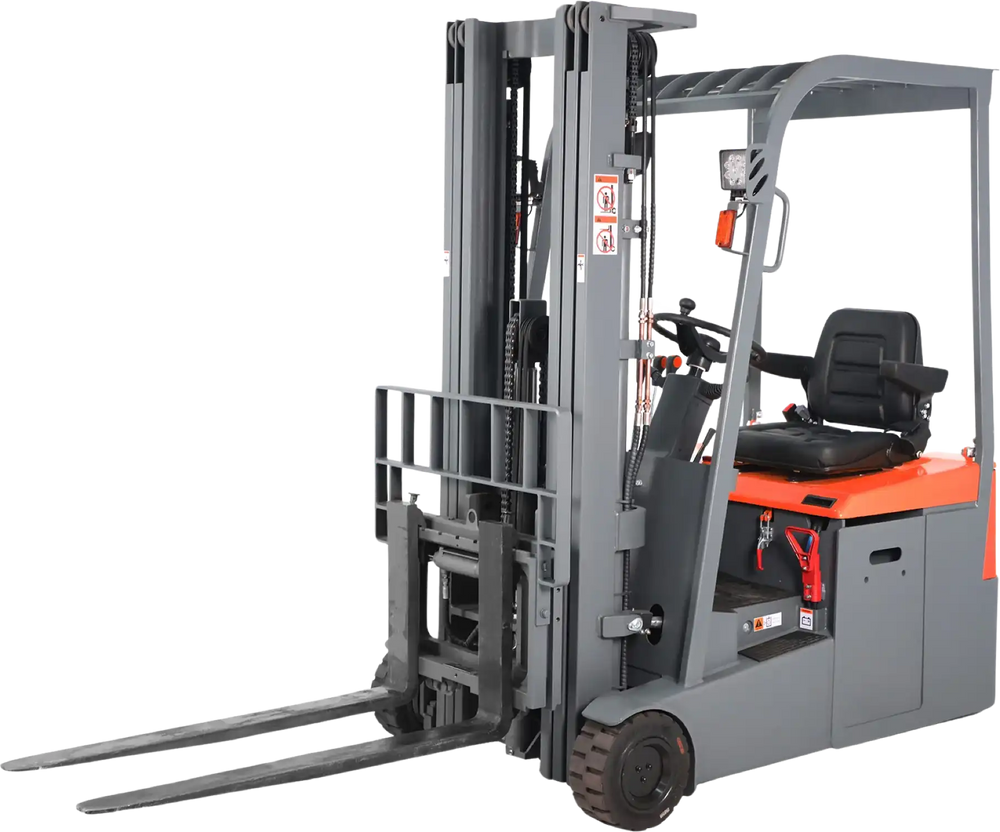

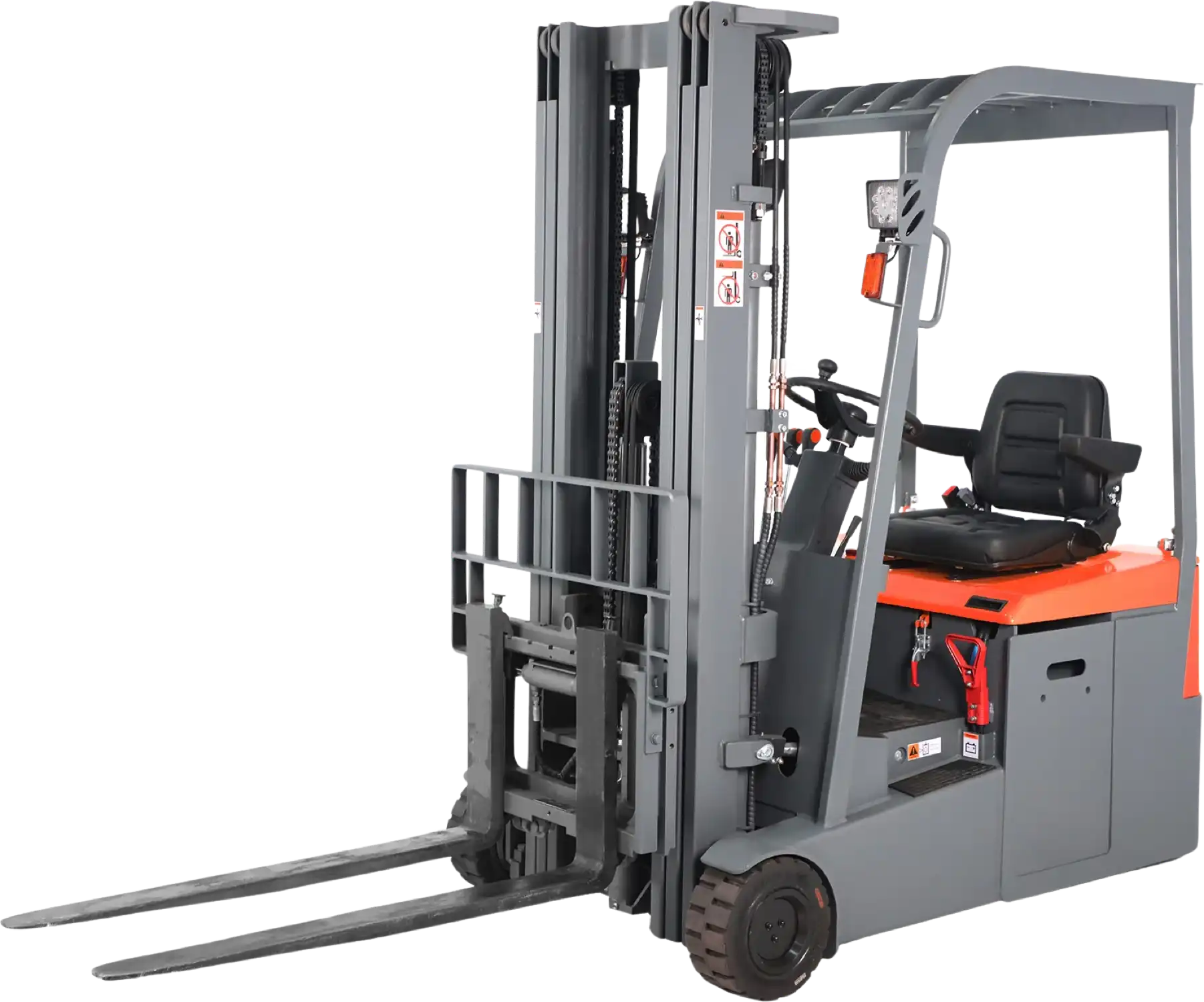

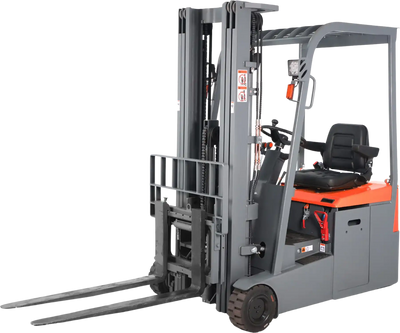

Apollolift A-3041 Electric Forklift Battery Powered 3 Wheel 197" Lifting 3300 lbs. Capacity CPD15S-E New
Manufacturer: Apollolift
SKU: A-3041
QTY
(888) 999-1522
C
$28,755.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
USE FOLLOWING CODE AT CHECKOUT FOR $50 OFF: buck50 COPY
Ships in 1-2 business days
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Apollolift A-3041 Electric Forklift Battery Powered 3 Wheel 197" Lifting 3300 lbs. Capacity CPD15S-E New
Product Overview
The Apollo A-3041 is a 3-wheel electric forklift with a 3300 lbs. capacity and 197 inch fork lift height is designed to be used on flat ground in narrow aisles of the warehouse, avoiding uneven grounds with potholes or large ramp. Features a multi-function to display information such as using, battery, status, fault code, and forklift running.
Brand new and manufacturer direct
1 year manufacturer's warranty
Manufacturer direct shipping from CA or GA
Fast processing with free shipping
Authorized Apollolift dealer
Features
- Standard Capacity 3,300lbs with fork lift height 197”
- AC Brushless motor
- Reliable Sweden In-motion controller
- Three-stages mast with free lift and sider shift
- Rear wheel driven design, with stable quality and small turning radius. Elastic rubber wheels with good shock proof and low noise
- Side-way moving lead acid battery 24V/320Ah
- Charger 24V/40A, plugs into single-phase 110V power outlets
- LED working lights
- Comfortable seat with safety belt and handrail
- Multi-Function display with using, battery status, fault code, and forklift running information
- 3-way hydraulic control valve
- High gradeability up to 10% with full laden
- Ideal design for operate in the warehouse with narrow aisle.
Specifications
| Free Lifting height (with / without backrest) | 52"/66" |
| Mast Tilt Degree (forward/backward) | 3° /6 ° |
| Fork Dimension (Thickness/Width/Length) | 1.3" /3.9"/ 37.4" |
| Distance Between Forks (inside) | 0.7-18.9" |
| Side Shifter | Left and right reach distance 2'' |
| Travel Speed (laden/unladen) | 4.3 / 4.3mph |
| Lifting Speed (laden/unladen) | 3.9 / 5.9 inch/s |
| Lowering Speed (laden/unladen) | 15 /15 inch/s |
| Temperature (range of working environment) | 50˚F ˜ 104˚F |
| Model NO | A-3041 |
| Operator Type | Seated |
| Load Capacity | 3,300 lbs. |
| Maximum Lifting Height (Fork) | 197" |
| Lowered Fork Height | 3.5" |
| Load Center | 19.7" |
| Cabin Height | 78'' |
| Battery Type | Lead acid |
| Battery Capacity | 24V/320AH |
| Charger (Input single phase) | 24V/40A built-out |
| Tires Type | Rubber |
| Overall Length | 97" |
| Overall Width | 41.5" |
| Recommended Aisle Width | 124" |
| Turning Radius | 61" |
| Mast Height Lowered | 77.9" |
| Mast Height Raised | 236" |
Package Contents
Apollolift A-3041
User's Manual
Warranty
This item comes with a 1 year manufacturer's warranty.
