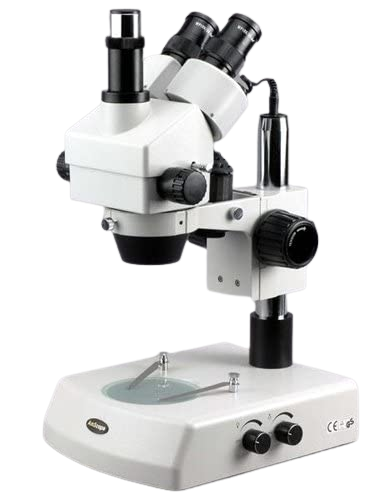

Amscope SM-2TZ-5M 3.5X - 90X Stereo Zoom Microscope with Dual Halogen Lights Plus 5MP Camera New
Product Overview
The SM-2T is a turnkey trinocular stereo microscope solution for biological and industrial fields. Using our workhorse SM745 head, it provides remarkable optical quality with a wide zoom magnification range.
The dual illumination base provides solid support, and both transmitted and reflected lighting for observing a range of objects, from biological cultures to PCBs. This trinocular model has an additional port for mounting a camera, so you can record video or photos without replacing an eyepiece.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- The stereo optics provide clear, sharp images with excellent focus depth and a large working distance.
- With 0.7X - 4.5X zoom objectives, moving through the magnification range is as easy as turning a knob.
- 10X wide field eyepieces provide an ample magnification range from 7X to 45X, with high eyepoint optics to accommodate glasses or goggles.
- 0.5X and 2X Barlow lenses are included, which can be alternated to either halve or double the magnification range, expanding the possible magnifications to 3.5X - 90X.
- Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity.
- Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.
- The switched trinocular photo port provides a dedicated mount for a camera.
- When the photo port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images.
- The dual illumination stand provides a turnkey solution for biological and industrial applications.
- The pillar based support system offers flexibility with its ability to quickly adjust height and lateral position.
- The microscope can be easily set and rotated in the mounting collar, and locked in place once adjusted.
- Large, symmetrical focus knobs provide the precision control needed, with adjustable tension for light or heavy loads as well as comfort.
- Overhead and sub stage halogen lighting allows you to work with opaque and translucent objects.
- The top light is mounted behind the head to provide offset light, and can be tilted for varied effect.
- This is useful for topological examination, such as with circuit boards and biological cultures.
- Thin tissue specimens, gemstones, and other translucent materials will benefit from the sub stage transmitted lighting.
- A frosted glass stage plate is provided to diffuse the light for more even backlighting.

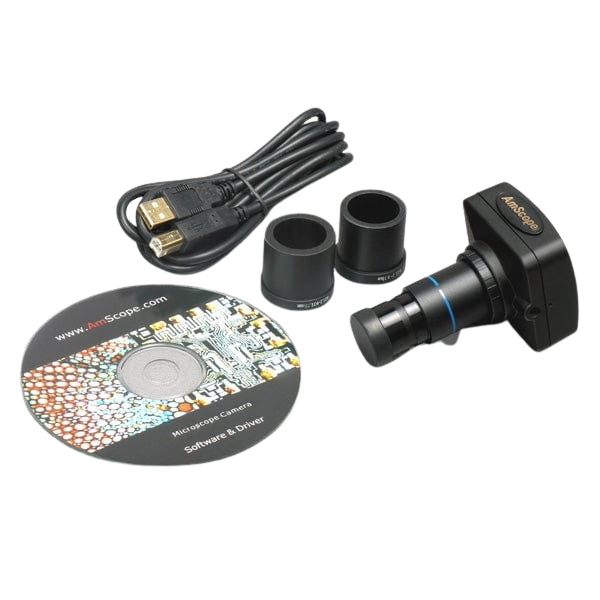

- Monitor and capture photos and videos with the included 5.0MP USB2.0 camera.
- The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer.
- This ability to view microscopic images on your computer reduces eye strain, and allows groups of people to view images at the same time.
- A 0.5X reduction lens is included to capture more of the microscope's field of view.
- Our professional software for Windows provides a wide assortment of capture and photo editing functions including color correction, time lapse capture, image stitching, and a full complement of measuring tools.
- A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.
Specifications
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM |
| Features Windows Version | Live video preview, Captures still images and video, Time lapse capture, Exposure and white balance controls, Dark field correction, Digital binning, Image processing, Measurement tools, including lines, arcs, polygons, Segmentation and counting tools, Image stitching, extended depth of field, HDR, Fluorescence color mapping |
| Features Mac/Linux Versions | Live video preview, Captures still images and video, Exposure control, Color adjustment, Measurement tools, including lines, arcs, polygons |
| Head Type | Trinocular, 45° incline, 360° rotatable |
| Optical System | Greenough stereoscopic |
| Interpupillary Adjustment | Compensation free gemel, 54 - 76mm |
| Ocular port Diameter | 30mm |
| Dioptric Adjustment | Both oculars, ± 5dp |
| Eyepieces | 10X |
| Photo Port | Height adjustable 23mm tube, CX series |
| Objective Lenses | 0.7X - 4.5X zoom |
| Objective Numerical Aperture | 0.065 @ 4.5X0.02 @ 0.7X |
| Objective Resolution | 195 lp/mm @ 4.5X60 lp/mm @ 0.7X |
| Native Field of View (10X Eyepieces) | 4.4mm - 28.6mm |
| Native Working Distance | 100mm |
| Auxiliary (Barlow) Lens | 48mm thread |
| Stand Type | Pillar stand with integrated top and bottom illumination |
| Focusing Block Focus Range | 50mm |
| Reflected Illumination | 15W halogen |
| Transmitted Illumination | 15W halogen |
| Stage Illumination Plate Diameter | 95mm |
| Power | 110VAC 60Hz |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/2.5" |
| Active Pixels | 5M (2592 x 1944) |
| Pixel Size | 2.2µm x 2.2µm |
| Active Sensor Area | 5.7mm x 4.28mm |
| Shutter | Electronic rolling shutter |
| Sensitivity | 0.53V/Lux-sec |
| Spectral Response | 380 - 650nm with IR cut filter |
| Capture Resolution and Maximum Framerate | 5fps @ 2592 x 1944 18fps @ 1280 x 960 60fps @ 640 x 480 |
| Connectivity | USB 2.0 |
| Lens mount | C-mount |
| Compensating Lens | 0.5X |
| Power | 5VDC over USB |
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ |

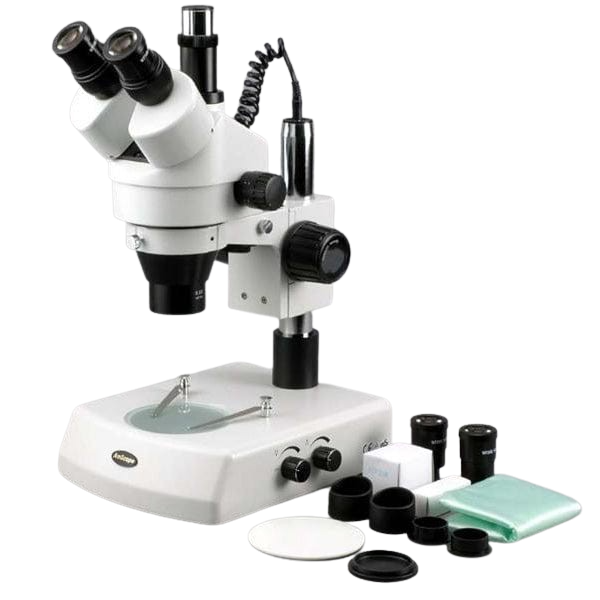

Package Contents
Trinocular stereo microscope head
Photo port
Pair of 10X eyepieces
0.5X Barlow lens
2X Barlow lens
Pair of eye guards
Pillar stand
Focusing block
Top light
Pair of stage clips
Glass stage plate
Black/white stage plate
Power cord
Two light bulbs
Hex wrench
Dust cover
C-mount USB camera
0.5X reduction lens
Two sizing adapters
USB Type B to USB type A cable
Software CD
User's Manual
Warranty
This product comes with a 5 year factory warranty.
