Amscope SM-2TX-5M 3.5X-45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights with 5MP Camera New
Manufacturer: AmScope
SKU: SM-2TX-5M
QTY
or
(888) 999-1522
C
$1,159.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for 2% off at checkout
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This product comes with a 5 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This product comes with a 5 year factory warranty.
$127.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$170.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$212.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Amscope SM-2TX-5M 3.5X-45X Trinocular Stereo Zoom Microscope with Dual Halogen Lights with 5MP Camera New
Product Overview

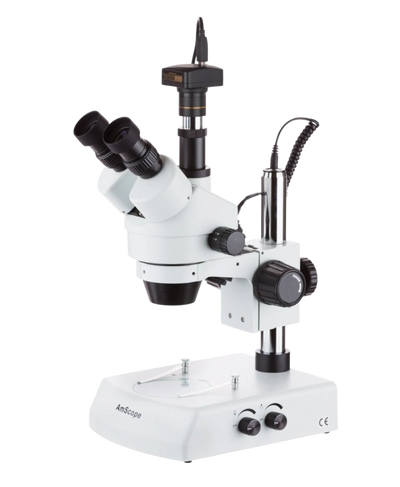

The SM-2T is a turnkey trinocular stereo microscope solution for biological and industrial fields. Using our workhorse SM745 head, it provides remarkable optical quality with a wide zoom magnification range.
The dual illumination base provides solid support, and both transmitted and reflected lighting for observing a range of objects, from biological cultures to PCBs. This trinocular model has an additional port for mounting a camera, so you can record video or photos without replacing an eyepiece.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- 3.5X - 45X Continuous Zoom Magnification Range
- Trinocular Design for High Quality Photographs or Video
- Trinocular Port for Adding Photo / Video Capability
- 30mm Super Widefield 10X Eyepieces
- 8" (200mm) Large Working Distance
- 45 Degree Inclined Trinocular Head
- Crystal Clear Original True Color Images
- Erect Sharp Stereo Images over a Super Widefield of View
- High Resolution with Great Flatness and Contrast
- Accurate Alignment Ensuring Fatigue Free Comfortable Observation
- Both Ocular Tubes with Adjustable Diopters
- Adjustable Interpupillary Distance
- Full Optical Glass Elements
- Precise Ground Glass Lenses
- Built in Epi illumination and transmitted lighting system with adjustable intensity
- Metal Pillar Stand Finished with Stain Resistant Enamel
- All Metal Mechanical Components
- CE approval electric apparatus
- Rubber Eye guards Included
- Manufactured under ISO 9001 Quality Control Standard
Specifications
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM |
| Features Windows Version | Live video preview, Captures still images and video, Time lapse capture, Exposure and white balance controls, Dark field correction, Digital binning, Image processing, Measurement tools, including lines, arcs, polygons, Segmentation and counting tools, Image stitching, extended depth of field, HDR, Fluorescence color mapping |
| Features Mac/Linux Versions | Live video preview, Captures still images and video, Exposure control, Color adjustment, Measurement tools, including lines, arcs, polygons |
| Head Type | Trinocular, 45° incline, 360° rotatable |
| Optical System | Greenough stereoscopic |
| Interpupillary Adjustment | Compensation free gemel, 54 - 76mm |
| Ocular port Diameter | 30mm |
| Dioptric Adjustment | Both oculars, ± 5dp |
| Eyepieces | 10X |
| Photo Port height adjustable | 23mm tube, CX series |
| Objective Lenses | 0.7X - 4.5X zoom |
| Objective Numerical Aperture | 0.065 @ 4.5X0.02 @ 0.7X |
| Objective Resolution | 195 lp/mm @ 4.5X60 lp/mm @ 0.7X |
| Native Field of View (10X Eyepieces) | 4.4mm - 28.6mm |
| Native Working Distance | 100mm |
| Auxiliary (Barlow) Lens | 48mm thread |
| Stand Type | Pillar stand with integrated top and bottom illumination |
| Focusing Block Focus Range | 50mm |
| Reflected Illumination | 15W halogen |
| Transmitted Illumination | 15W halogen |
| Stage Illumination Plate Diameter | 95mm |
| Power | 110VAC 60Hz |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/2.5" |
| Active Pixels | 5M (2592 x 1944) |
| Pixel Size | 2.2µm x 2.2µm |
| Active Sensor Area | 5.7mm x 4.28mm |
| Shutter | Electronic rolling shutter |
| Sensitivity | 0.53V/Lux-sec |
| Spectral Response | 380 - 650nm with IR cut filter |
| Capture Resolution and Maximum Framerate | 5fps @ 2592 x 1944 18fps @ 1280 x 960 60fps @ 640 x 480 |
| Connectivity | USB 2.0 |
| Lens Mount | C-mount |
| Compensating Lens | 0.5X |
| Power | 5VDC over USB |
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ |
Package Contents
Trinocular stereo microscope head
Photo port
Pair 10X eyepieces
0.5X Barlow lens
Pair of eye guards
Pillar stand
Focusing block
Top light
Pair of stage clips
Glass stage plate
Black/White stage plate
Power cord
Two light bulbs
Hex wrench
Dust cover
C-mount USB camera
0.5X reduction lens
Two sizing adapters
USB Type B to USB type A cable
Software CD
User's Manual
Warranty
This product comes with a 5 year factory warranty.
