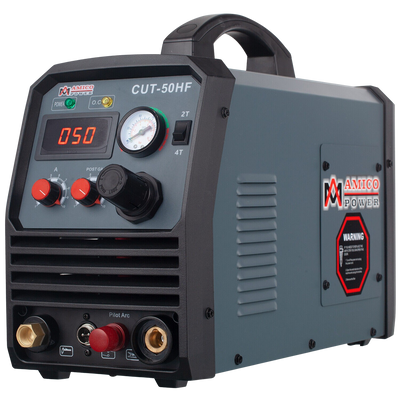

Amico Electric CUT-50HF 100V/250V Wide Voltage 3/5 inch Clean Cut 50 Amp Non-touch Pilot Arc Plasma Cutter New
Manufacturer: Amico Electric
SKU: CUT-50HF
QTY
(888) 999-1522
C
$526.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- This item comes with a 1 year limited factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year limited factory warranty.
$71.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$100.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$143.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Amico Electric CUT-50HF 100V/250V Wide Voltage 3/5 inch Clean Cut 50 Amp Non-touch Pilot Arc Plasma Cutter New
Product Overview
CUT-50HF is a newly designed with the meter and adjustment attached to the front of the machine and the filter is located inside the machine. The new and improved model makes it more convenient and easier to use. New digitally controlled 20-50 amps Plasma Cutter Machine with advanced inverter technology and high cutting performance. Designed for portable repair work and small business project use, CUT-50HF Air Plasma Cutter cuts a thickness of 3/5 in., and the max severance thickness is 1.0 in.
1 year limited factory warranty
Brand new in box
Ships directly from Amico Electric out of CA
Authorized Amico Electric dealer
Features
- Incorporates advanced Non-touch pilot arc cutting technology, with an excellent Arc stability. Very easily cutting surface is rough, the serious rust, with oil and spray paint of metal materials, and better cutting quality, finish the work faster.
- Quick setup: NPT 1/4″ industry type D coupler can connect easily with the pre-installed plug on the air compressor. The filter is located inside the machine with an automatic air control solenoid valve.
- Automatic compensation for voltage fluctuation, over-voltage protection, under-voltage protection, over-current protection, over-load protection, automatic temperature control, and fan dormancy.
- Can cut up to 3/5 in. stainless steel, alloy steel, low carbon steel, copper, iron, pig iron, cast iron, aluminum alloy, aluminum and other conductive metals, resulting in straight cuts, angles, holes, curves, notches, slots, circles, v-grooves, and many others in minutes.
- 95~260V wide voltage, 50/60Hz, almost all of the voltage and frequency can be used, and is designed for both demanding industrial work, construction. It requires less work to produce an overall better result with a cleaner cut.
Specifications
| Type | Non-touch Pilot Arc Plasma Cutter |
| Supply Power | 95~260V, 50/60Hz, 1-Phase |
| Rated Input Current | 230V/37 Amp, 115V/40 Amp |
| Cutter Current Range | 230V/20-50 Amp, 115V/20-30 Amp |
| Nominal DC Open Circuit Voltage | 280-Volt |
| Output Voltage | 100-Volt |
| Duty Cycle @104F(40c) | 60% @ 50 Amp |
| Efficiency | 89% |
| Power factor | 0.93 |
| Output Terminal Type | Direct Wire |
| Cooling Method | Fan Air Cooled |
| Gas Supply | Clean Dry Oil-Free Air |
| Gas Pressure Range | 30-75 psi |
| Recommended Gas Inlet Flow | 4.5scfm @ 75 psi |
| Maximum Severance Cutting Thickness | 1.0 in. |
| Movement Speed | 12.5 in./min |
| Net Weight | 24.8 lbs. |
| Product Size | 19.0 x 7.6 x 12.9 in. |
| Package Weight | 34.4 lbs. |
| Shipping Size | 20.0 x 12.6 x 14.8 in. |
Package Contents
CUT-50HF Non-touch Pilot Arc Plasma Cutter Machine
13 Feet (SG-55/AG-60) Plasma Cutter Torch Gun Assembly
10 Feet 300A Work Clamp Assembly, 35-50mm Lead Dines
230V to 115V Power Adapter
Air Filter and Pressure Gage (Installed inside the machine)
Owner’s Manual
Warranty
This item comes with a 1 year limited factory warranty.
