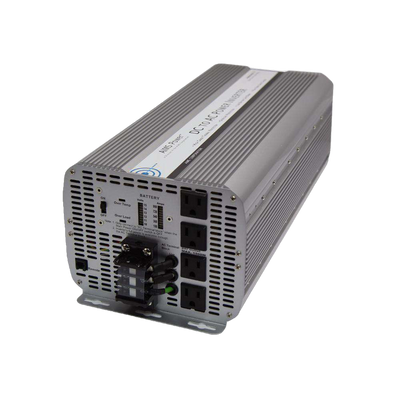

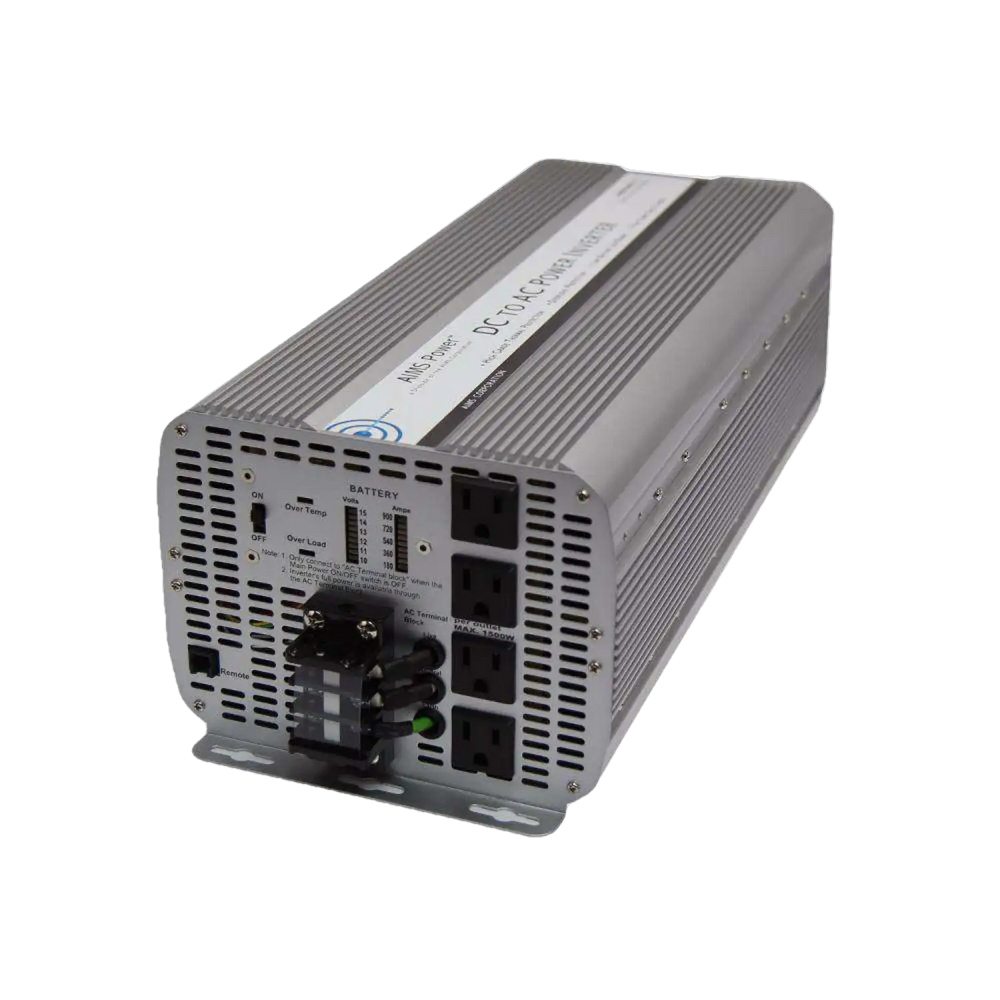

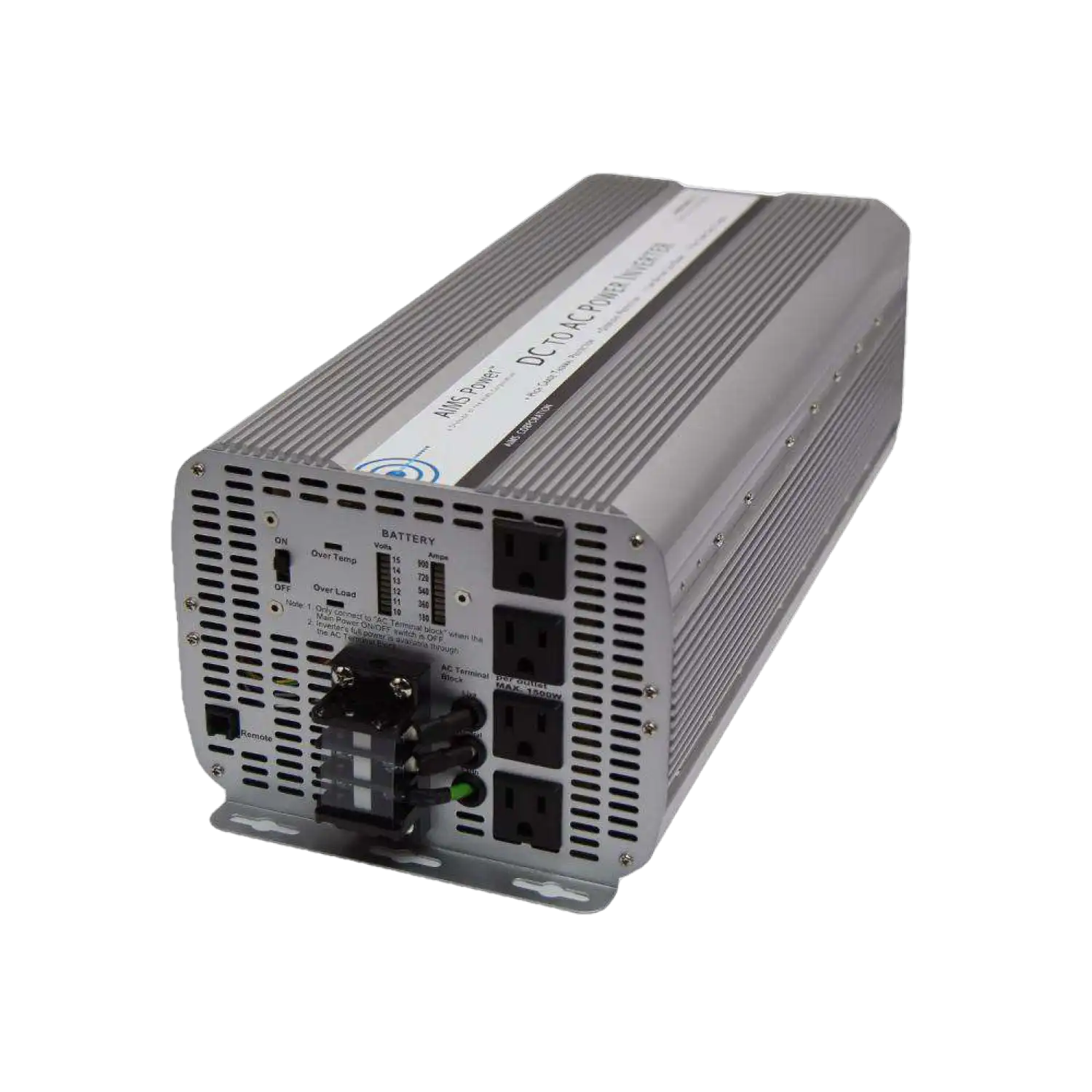

Aims Power PWRINV8KW12V 8000 Watt Power Inverter New
Manufacturer: Aims Power
SKU: PWRINV8KW12V
QTY
(888) 999-1522
C
$1,162.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Aims Power PWRINV8KW12V 8000 Watt Power Inverter New
Product Overview
Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. The 8000 watt 12 volt AIMS Power inverter Inverter technology at its finest - AIMS Power’s brand new 8000 watt 12 volt modified sine inverter is smaller, lighter, and more efficient. AIMS Power’s old model of this inverter is still trusted and will be trusted long into the future among business owners, especially mobile businesses, all around the world. AIMS Power developed a new version of the 8000 watt inverter due to the development of new technology and the inverter’s high demand among AIMS Power customers.
Brand new in box
Manufacturer direct shipping from NV
Factory Warranty Included
Authorized Aims Dealer
Features
- 8000W max continuous power
- Modified sine wave
- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- Over Temperature LED indicator
- Over Load LED indicator
- AC direct connect terminal block
- Over Temperature protection
- Over Load protection
- Single cooling fan thermally controlled
- Internally fuse protected
- AC output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- This inverter requires 2 sets of 4 AWT cable if you are going to run at 8000 watts
- 1 Year Warranty Parts and Labor
Specifications
| Continuous output power | 8000 Watts |
| Surge power capability (peak power) | 16000 Watts |
| DC input / operating voltage | 10 to 15 Volts |
| Output voltage | 120 Volts ac +/- 10% |
| Output wave form | Modified sine wave with phase correction |
| Output frequency | 60 Hz +/- 1 Hz |
| Battery low voltage alarm | 10.5 +/- 0.5 Volts |
| Battery low voltage shutdown | 10.0 +/- 0.5 Volts |
| No load current | < 1.3 DC amps |
| Full load efficiency | 90% |
| 1/3 load efficiency | 95% |
| No load minimum operating temperature | 30ºF |
| Full load maximum operating temperature | 140ºF |
| AC Output Socket Type | Quadruple Type 2 -3 prong |
| High input voltage protection | 15V-17V |
| Low input voltage shutdown | 10V Internal fuse protection |
| Product size (L x W x H) | 19.02”X 7.76”X 6.02” |
| Weight | 19.8 lbs |
| UL maximum recommended per outlet | 1500W |
Package Contents
Aims Inverter
Owner's manual
Warranty
1 Year Manufacturer Warranty
