Aims Power PWRINV5K24012W 5000 Watt 240Vac 60hz Power Inverter New
Manufacturer: Aims Power
SKU: PWRINV5K24012W
QTY
(888) 999-1522
C
$772.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer

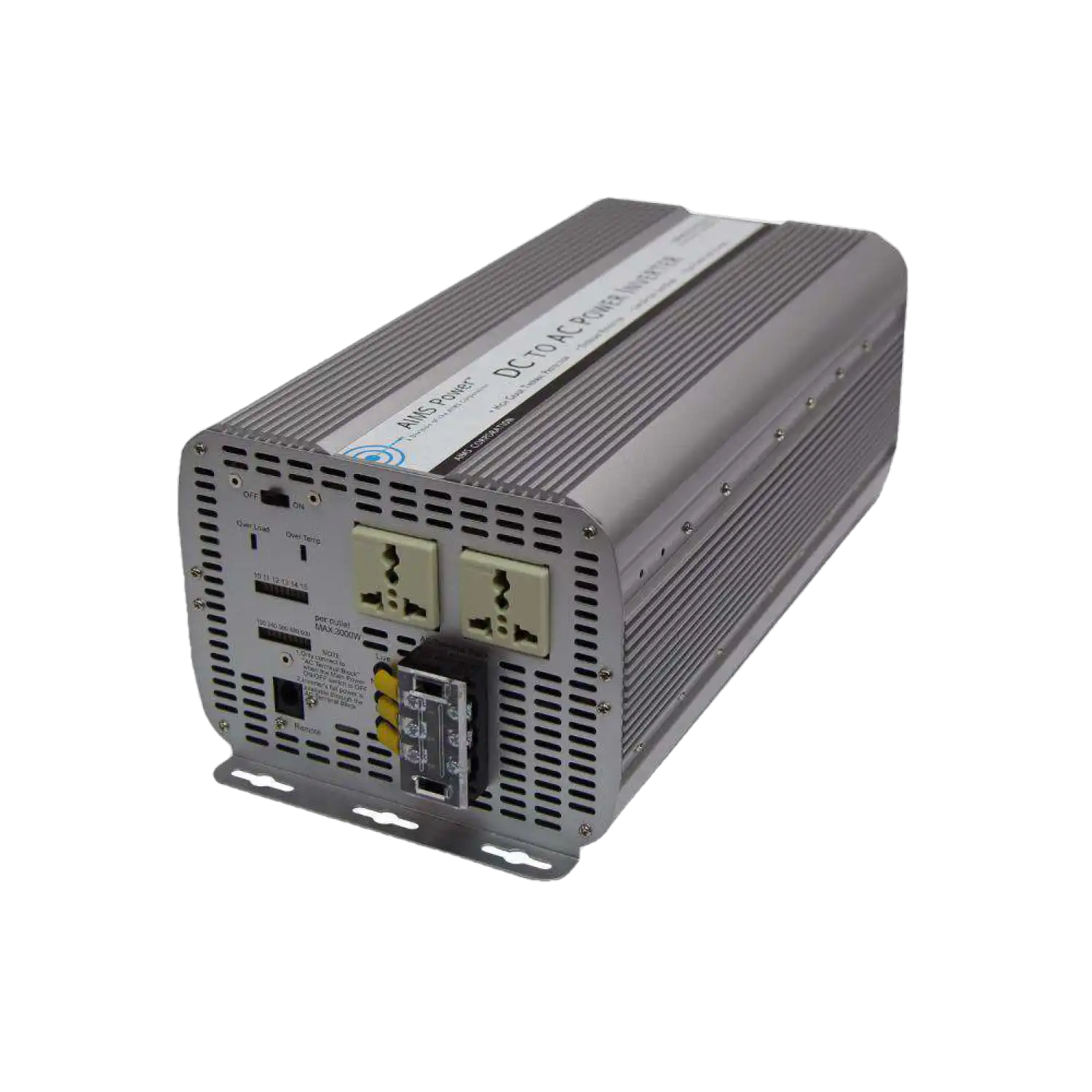

Aims Power PWRINV5K24012W 5000 Watt 240Vac 60hz Power Inverter New
Product Overview
This 5000 watt 12 volt DC to 220/230/240 volt AC (60 hz) power inverter by AIMS Power converts DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to run practically any household appliances or tools. This inverter will NOT produce 120 volts. It is only for 240 volt AC applications. See PWRINV500012W for applications needing 120 volt AC. This unit produces a modified sine wave, which is capable of running most tools, pumps, motors and appliances that operate at 240 volts AC. Use this product for off-grid back-up power at home, cabin, boat, larger solar systems or anywhere that doesn't have city power. What really makes this 5000 watt AIMS Power inverter special is its capability to run off of most vehicles’ and/or RVs'/boats' standard power systems at 12 volts. That makes the inverter very attractive to mobile business owners since users don’t have to modify a vehicle’s standard power system in order to run the inverter off of a car or truck. This definitely saves some money if upgrading a fleet of vehicles with some aftermarket equipment that requires this much power.
Brand new in box
Manufacturer direct shipping
Factory Warranty Included
Authorized Aims Dealer
Features
- 5000W Max Continuous Power
- Modified Sine Wave
- 240 Volt Single Phase AC Output Only (This inverter will not deliver 120 volt AC)
- Volt Meter on Front Panel to Monitor Your Battery Voltage
- Amp Meter on Front Panel to Monitor Your Current Use (rate at which battery is drained)
- AC Direct Connect Terminal
- Over Temperature LED Indicator
- Over Load LED Indicator
- Dual 240V AC Receptacles
- Pre-Slotted Mounting Plate
- On/Off Switch
- Over Temperature Protection
- Over Load Protection
- Single Cooling Fan Operation Thermally Controlled
- Internally Fuse Protected
- AC Output Short Circuit Protection
- Auto Reset On Most Fault Conditions
- Aluminum Case for Optimal Cooling
- Pre-Wired For Remote On/Off Switch
Specifications
| Continuous Output Power | 5000 Watts |
| Surge Power Capability (peak power) | 10,000 Watts |
| DC Input/Operating voltage | 10 to 15 Volts |
| Output Voltage | 240 Volts AC |
| Output frequency | 60 Hz +/- .5 Hz |
| Battery Low Voltage Alarm | 10.5 +/- 0.5 Volts |
| Battery Low Voltage Shutdown | 10.0 +/- 0.5 Volts |
| No load minimum operating temperature | -15 degrees Celsius |
| Full Load Maximum Operating temperature | 55 +/- 5 degrees Celsius (automatic shutdown) |
| Low Voltage and Over Voltage Alarm and Protection | Yes |
| AC Output Socket Type | Dual 240 |
| Low Input Voltage Shutdown | 10V |
| Internal Fuse Protection | Yes |
| Product Size (L x W x H) | 16.92 X 7.95 X 6.1 inches |
| Weight | Unit |
Package Contents
Aims Inverter
Owner's manual
Warranty
1 Year Manufacturer Warranty
