Product Overview

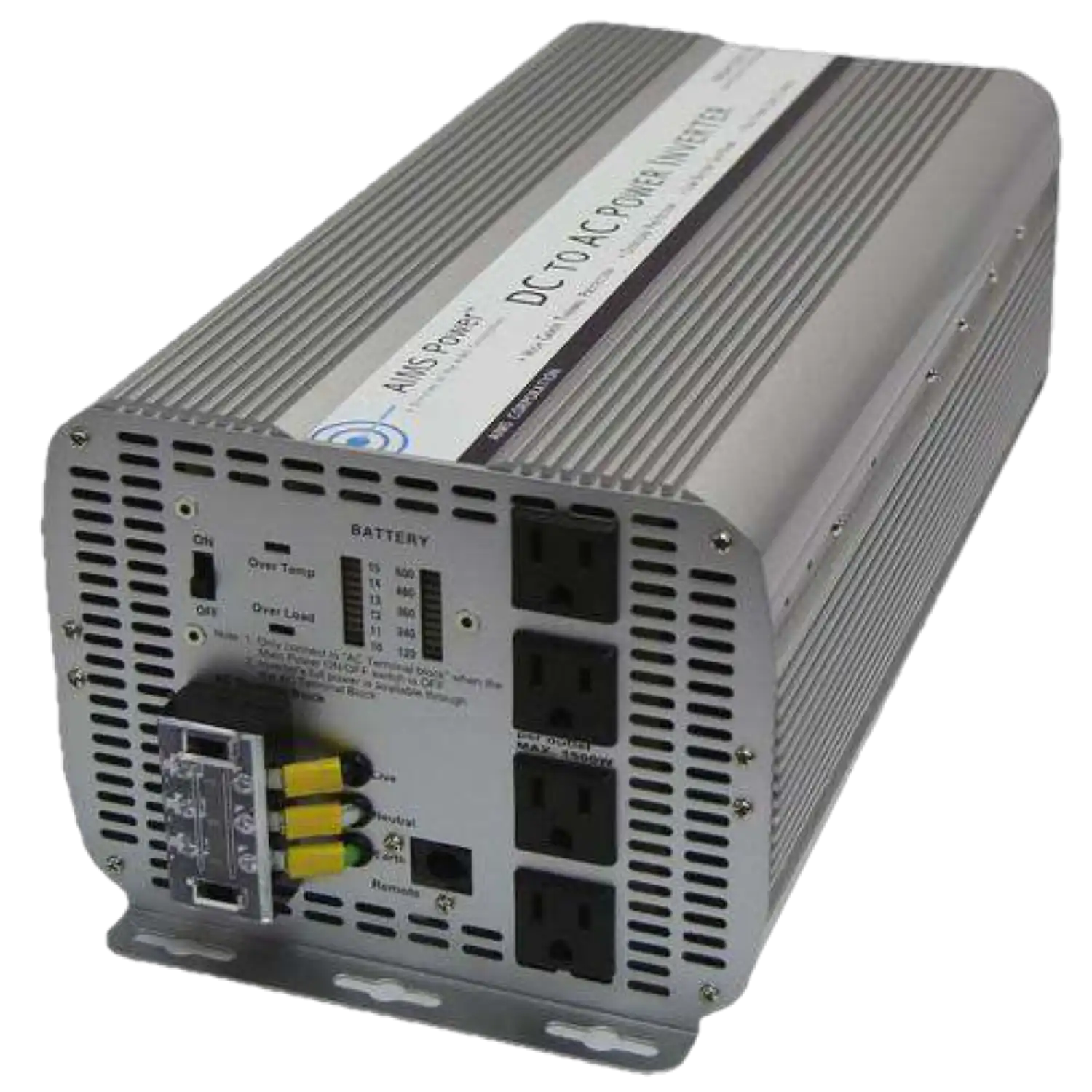

This 5000-watt 12-volt power inverter by AIMS Power converts DC (direct current) power stored by batteries into AC (alternating current) electricity. You can use this powerful AIMS 5000-watt inverter to run practically any household appliances or tools. This unit produces a modified sine wave capable of running most tools, pumps, motors and appliances. Use this product for off-grid back-up power at home, in your cabin or on your boat. This 5000-watt power inverter is perfect for larger solar systems or anywhere that doesn't have city power. What really makes this 5000-watts power inverter special is its capability to run off most vehicles' standard power systems at 12 volts. That also makes it a simple solution for RVs and boats. This inverter is very attractive to mobile business owners because users don't have to modify a vehicle's standard power system to run the inverter. This will definitely save you some money if you are upgrading a fleet of vehicles with some aftermarket equipment that requires this much power.
Brand new in box
Manufacturer direct shipping
Factory Warranty Included
Authorized Aims Dealer
Features
- 5000W Max Continuous Power
- Modified Sine Wave
- Volt Meter on Front Panel to Monitor Your Battery Voltage
- Amp Meter on Front Panel to Monitor Your Current Use (rate at which battery is drained)
- AC Direct Connect Terminal
- Over Temperature LED Indicator
- Over Load LED Indicator
- Quadruple AC Receptacle That Can Be Used With Any Separate Splitter to Provide Even More Outlets
- On/Off Switch
- Over Temperature Protection
- Over Load Protection
- Single Cooling Fan Operation Thermally Controlled
- Internally Fuse Protected
- AC Output Short Circuit Protection
- Auto Reset on Most Fault Conditions
- Aluminum Case For Optimal Cooling
- Pre-Wired for Remote On/Off Switch
- Pre-Slotted Mounting Plate
Specifications
Continuous Output Power | 5000 Watts |
Surge Power Capability (peak power) | 10000 Watts |
DC Input/Operating Voltage | 10 to 15 Volts |
Output Voltage | 120 Volts AC +/- 10% |
Output Wave Form | Modified Sine Wave with Phase Correction |
Output Frequency | 60 Hz +/- 1 Hz |
Battery Low Voltage alarm | 10.5 +/- 0.5 Volts |
Battery Low Voltage Shutdown | 10.0 +/- 0.5 Volts |
No Load current | < 0.6 Amps |
Full Load Efficiency | 90% |
1/3 Load Efficiency | 95% |
No Load Minimum Operating Temperature | -15 degrees Celsius |
Full Load Maximum Operating Temperature | 55 +/- 5 degrees Celsius (automatic shutdown) |
AC Output Socket Type | Quadruple Type 2 -3 Prong |
High Input Voltage Protection | 15V-17V |
Low Input Voltage Shutdown | 10V |
Internal Fuse Protection | Yes |
Product Size (L x W x H) | 16.92”X 7.95”X 6.1” |
Weight | 18 lb. |
UL Maximum Recommended per Outlet | 1500W |
Package Contents
Aims Inverter
Owner's manual
Warranty
1 Year Manufacturer Warranty
