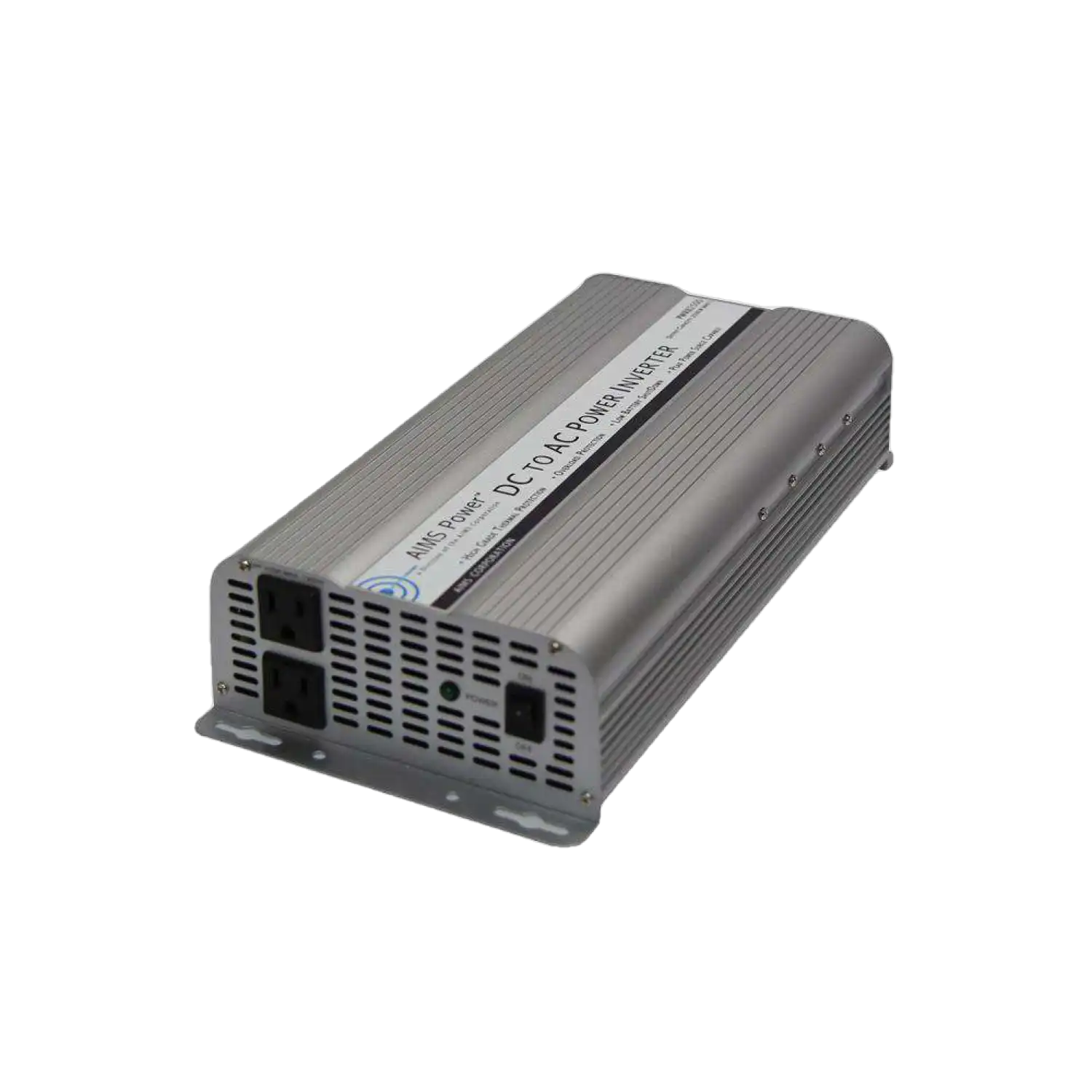

Aims Power PWRB2500 2500 Watt Value Power Inverter New
Product Overview
This AIMS "no-frills" economical 2500 watt 12 volt power inverter converts DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to run practically any household appliances or tools.
This unit produces a modified sine wave, which is capable of running most tools, pumps, motors and appliances. Use this product for off-grid back-up power at home, cabin, boat, or anywhere that doesn't have city power.
The unit features two easily-accessible AC outlets with a maximum output of 1500 watts. The 200 percent surge capabilities of this unit should only be used as a safety feature. Other safety features include over-temperature and over-load protections that are used as a warning system for the operator.
Brand new in box
Manufacturer direct shipping from NV
Factory Warranty Included
Authorized Aims Dealer
Features
- 2500W max continuous power
- Modified sine wave
- Over Temperature protection
- Over Load protection
- Dual ac receptacle that can be split with a separate spliter if extra outlets are needed
- Convenient always on dual cooling fan operation
- Internally fuse protected
- AC output short circuit protection
- Auto reset on most fault conditions
- Battery terminals are designed to conduct more current therefore requiring only one set of cables.
- Aluminum case for optimal cooling
- Pre-slotted mounting plate
Specifications
| Continuous output power | 2500 Watts. Use 200 amp inline fuse. |
| Surge power capability (peak power) | 5000 Watts |
| DC input / operating voltage | 10 to 15 Volts |
| Output voltage | 120 Volts ac +/- 10% |
| Output wave form | Modified sine wave with phase correction |
| Output frequency | 60 Hz +/- 1 Hz |
| Battery low voltage alarm | 10.5 +/- 0.5 Volts |
| Battery low voltage shutdown | 10.0 +/- 0.5 Volts |
| AC amps | 21 |
| DC amps | 208 |
| No load current | 2.5 Amps with switch in the on position (because fans are always on) |
| Full load efficiency | 90% |
| 1/3 load efficiency | 95% |
| No load minimum operating temperature | -15 degrees Celsius |
| Full load maximum operating temperature | 55 +/- 5 degrees Celsius (automatic shutdown) |
| AC Output Socket Type | Dual Type 2 -3 prong |
| High input voltage protection | 15V-17V |
| Low input voltage shutdown | 10V |
| Internal fuse protection | Yes |
| Product size (L x W x H) | 14.5”X 6.5”X 3.0” |
| Unit Weight | 6.1 lbs |
| UL maximum recommended per outlet | 1500W |
Package Contents
Aims Inverter
Owner's manual
Warranty
1 Year Manufacturer Warranty
