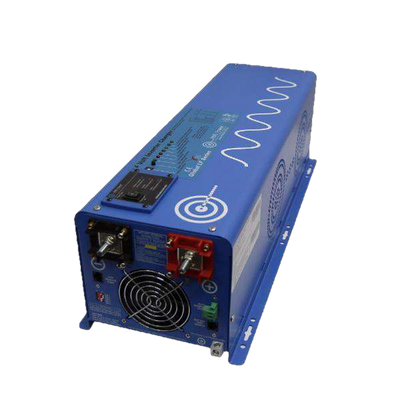

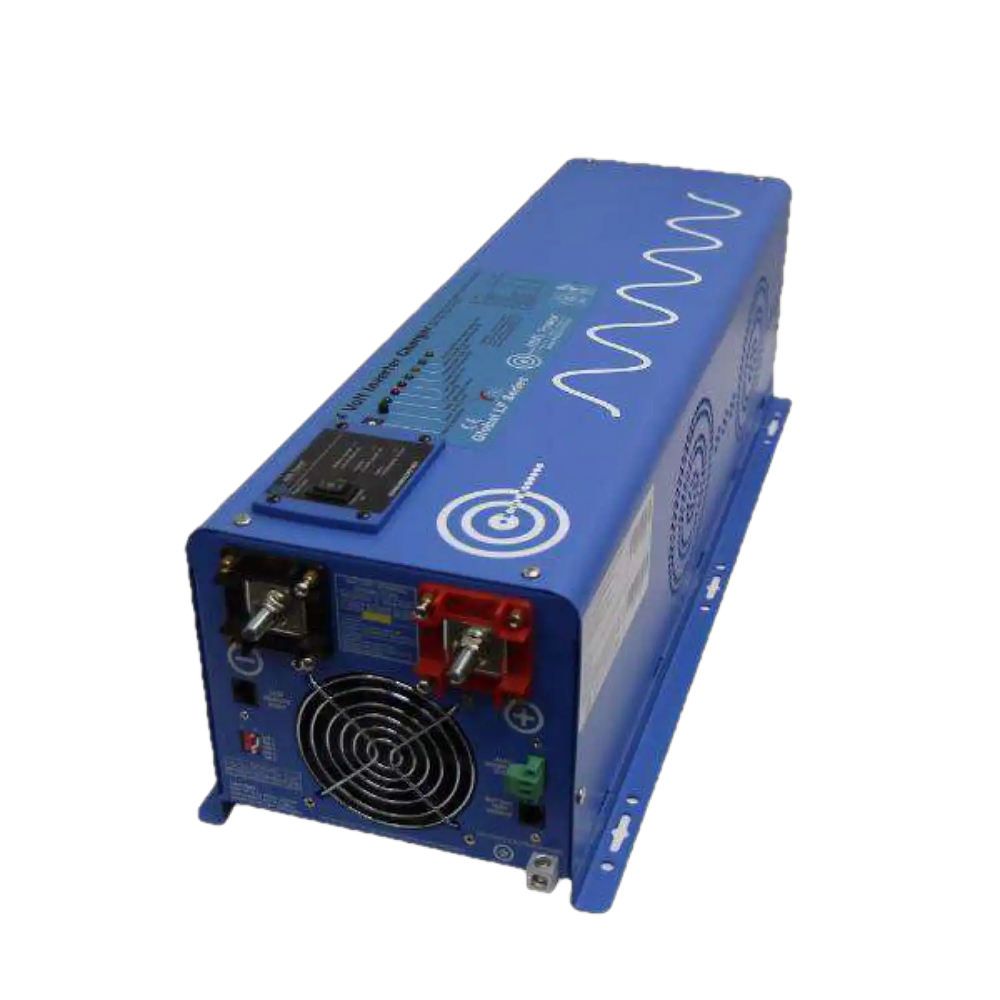

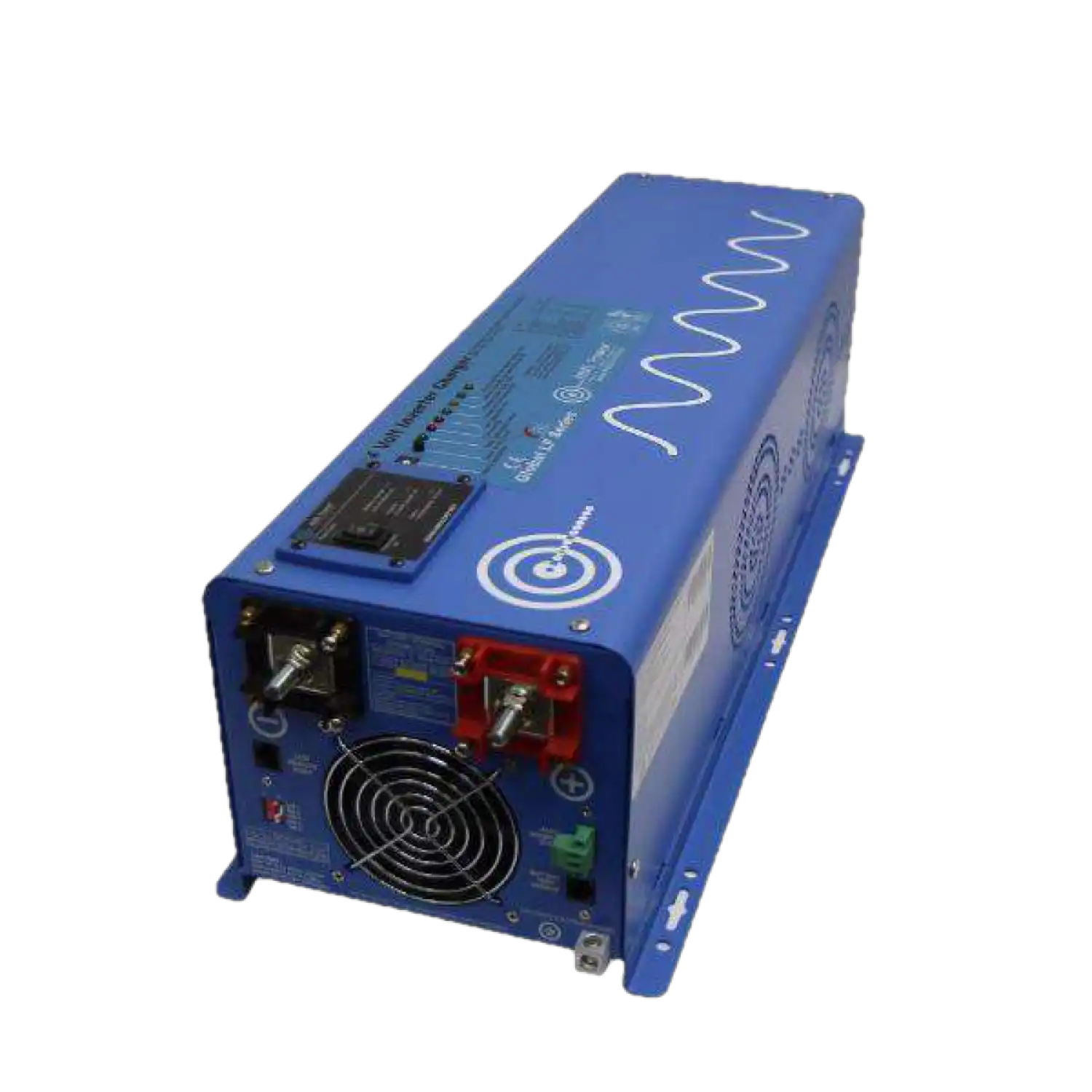

Aims Power PICOGLF60W24V240VS 6000 Watt Pure Sine Inverter Charger New
Product Overview
This 6000 watt inverter charger produces a pure sine wave, which some appliances require for use. It can run laser jet printers, computers, televisions, CPAP machines and other medical equipment. During a big storm that knocks out electricity, a battery-bank and power inverter running a sump pump could be the difference that saves a home from flooding. The power to run a heater could save someone thousands of dollars by keeping plumbing pipes from freezing. Also great for emergency backup power applications is the automatic transfer switch on this unit, which keeps the power supply uninterrupted in the event of an outage. With the inverter hooked up to shore power, it will detect the loss of electricity and start pulling energy from a connected battery bank instead to keep the power supply constant.
Brand new in box
Manufacturer direct shipping
Factory Warranty Included
Authorized Aims Dealer
Features
- 6000 Watt Low Frequency Inverter 110/220Vac Split Phase
- 18000 Watt Surge For 20 Seconds -3x Surge Capability
- Battery Priority Selector
- Terminal Block
- GFCI
- Marine Coated and Protected
- Multi Stage Smart Charger 85 Amp charges GEL, Lead, AGM, Lithium
- Remote Panel Available
- Auto Frequency
- 10msec Typical Transfer Time
- Selectable 25W Power Save Mode (hibernation)
- 8 battery Charger Settings
Specifications
| Continuous Output Power | 6000 Watts |
| Surge Rating | 18000 Watts (20 Seconds) |
| Output Waveform | Pure Sine/Same as input (Bypass Mode) |
| Nominal Efficiency | >88% (Peak) |
| Line Mode Efficiency | >95% |
| Output Frequency | 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| Typical Transfer Time | 10ms (Max) |
| THD | < 10% DC |
| Ambient Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Nominal Input Voltage | 24.0Vdc |
| Low Battery Alarm | 21.0Vdc-22.0Vdc |
| Low battery Trip | 20.0Vdc-21.0Vdc |
| High Voltage Alarm | 32.0Vdc |
| Low battery Voltage Restart | 26.6Vdc |
| Idle Consumption | 76.8 Watts |
| Idle Consumption in Power Saver Mode | 29 Watts |
| Charger Output Voltage | Depends on battery Type |
| Charger Rate | 85A |
| Unit Weight | 79 lbs. |
| Unit Size L x W x H | 23.5 x 8.5 x 7.0 inches |
Package Contents
Aims Inverter
Owner's manual
Warranty
1 Year Manufacturer Warranty
