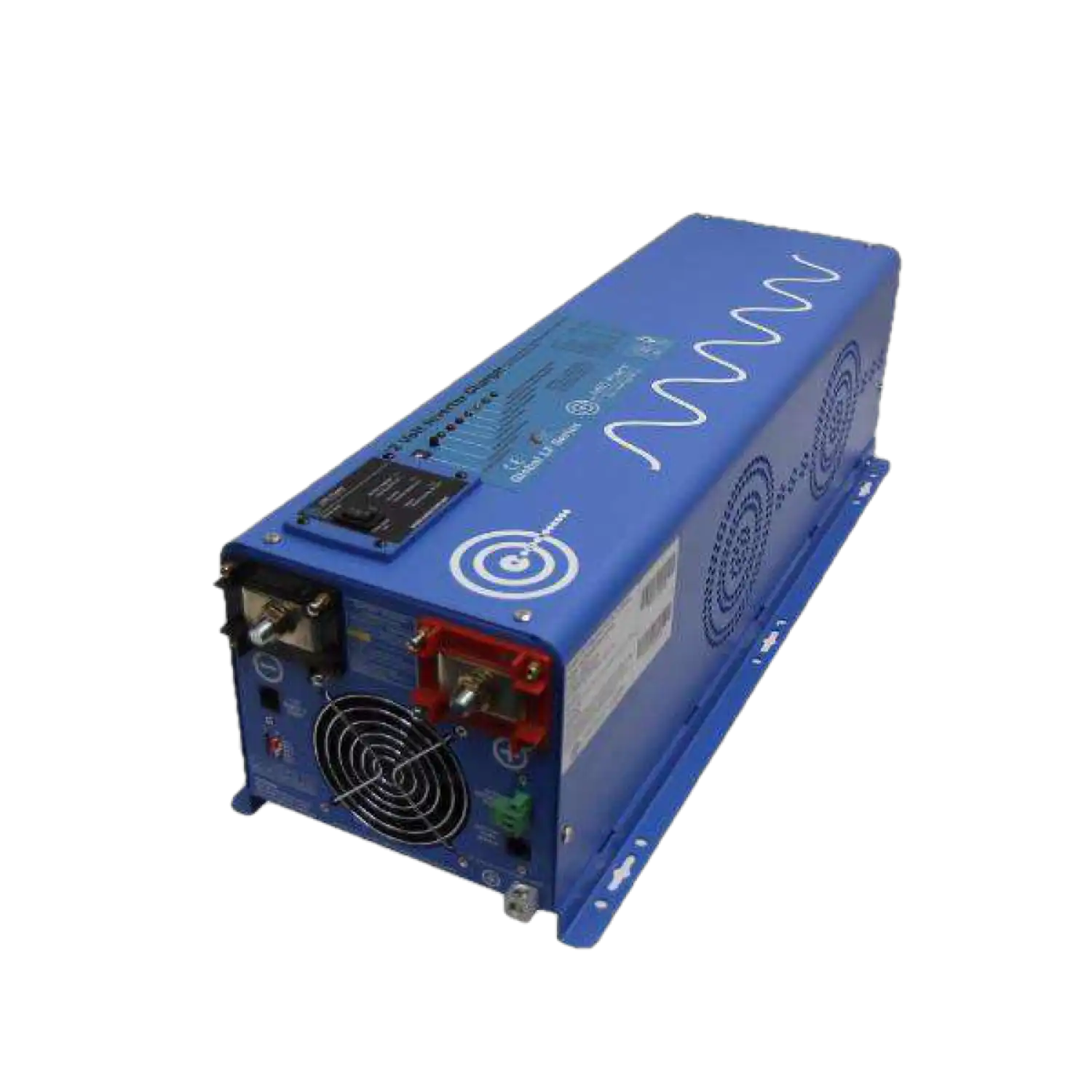

Aims Power PICOGLF40W12V120V 4000 Watt Pure Sine Inverter Charger New
Product Overview
This 4000 watt inverter charger produces a pure sine wave, which some appliances require for use. So it can run laser jet printers, computers, televisions, CPAP machines and other medical equipment. During a big storm that knocks out electricity, a battery-bank and power inverter running a sump pump could be the difference that saves a home from flooding. The power to run a heater could save someone thousands of dollars by keeping plumbing pipes from freezing. Also great for emergency backup power applications is the automatic transfer switch on this unit, which keeps the power supply uninterrupted in the event of an outage. With the inverter hooked up to shore power, it will detect the loss of electricity and start pulling energy from a connected battery bank instead to keep the power supply constant.
Brand new in box
Manufacturer direct shipping
Factory Warranty Included
Authorized Aims Dealer
Features
- 4000 Watt Low Frequency Inverter
- 12000 Watt Surge for 20 Seconds 300% Surge Capability
- Battery Priority Selector
- AC Direct Connect Terminal Bock for Hardwire
- Marine Coated and Protected
- Multi Stage Smart Charger 100 Amp
- Charges Lithium LiFePO4, GEL, AGM and Lead Batteries.
- Remote Panel Available
- Auto Frequency
- 10msec Typical Transfer Time
- Selectable 25W Power Save Mode (hibernation)
- 7 Battery Type Settings For Charger
- Automatic Transfer Switch
Specifications
| Continuous Output Power | 4000 Watts |
| Surge Rating | 12000 Watts (20 Seconds) |
| Output Waveform | Pure Sine/Same as input (Bypass Mode) |
| Nominal Efficiency | >88% (Peak) |
| Line Mode Efficiency | >95% |
| Output Frequency | 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| Typical Transfer Time | 10ms (Max) |
| THD | < 10% DC |
| Ambient Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Nominal Input Voltage | 12.0Vdc |
| Minimum Start Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5Vdc-11.0Vdc |
| Low Battery Trip | 10.0Vdc-10.5Vdc |
| High Voltage Shutdown | 16.0Vdc |
| Low Battery Voltage Restart | 13.3Vdc |
| Idle Consumption | <3.47 amps DC |
| Power Saver Mode Idle Consumption | <0.53 amps DC |
| Output voltage | Depends on battery type |
| Charger rate | 115A |
| Over charge protection shutdown | 15.7V |
| Adjustable charge current | Off-20%-100% |
| Unit Weight | 64 lbs. |
| Unit Size L x W x H | 23.5 x 8.75 x 7.10 inches |
Package Contents
Aims Inverter
Owner's manual
Warranty
1 Year Manufacturer Warranty
