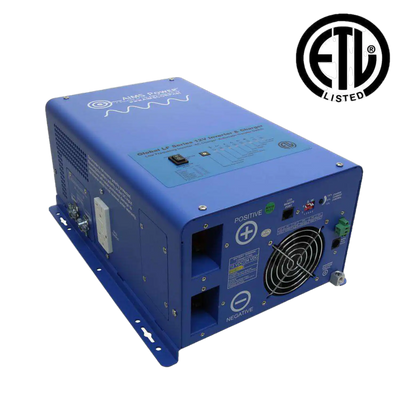

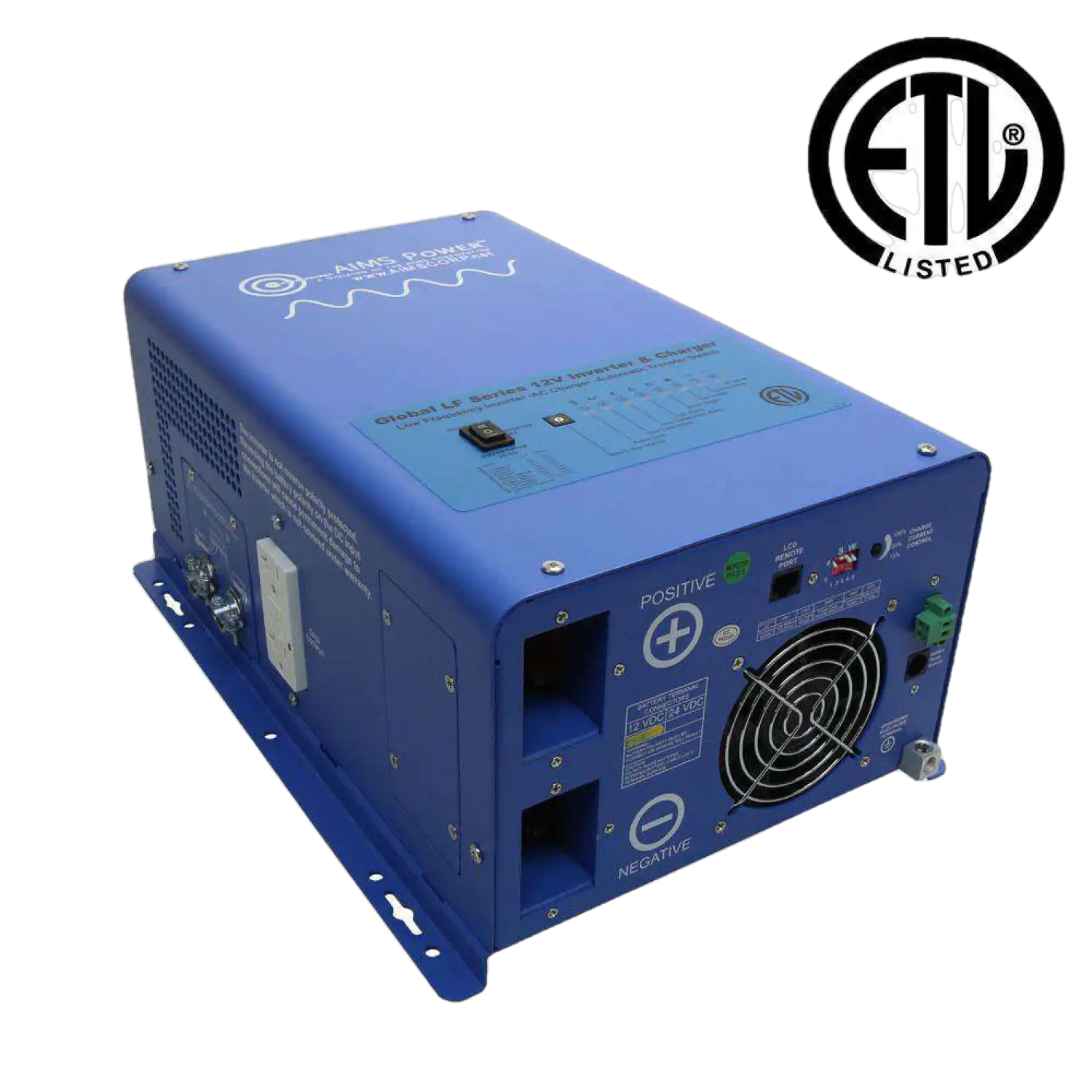

Aims Power PICOGLF30W12V120V 3000 Watt 12V Pure Sine Inverter Charger New
Manufacturer: Aims Power
SKU: PICOGLF30W12V120V
QTY
(888) 999-1522
C
$1,678.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Aims Power PICOGLF30W12V120V 3000 Watt 12V Pure Sine Inverter Charger New
Product Overview
Brand new in box
Manufacturer direct shipping
Factory Warranty Included
Authorized Aims Dealer
Features
- Listed to UL 458 Standards and CSA 22.2 No 107.1
- 3000 Watt Low Frequency Inverter
- 9000 Watt Surge for 20 seconds -3x Surge Capability
- Battery Priority Selector
- AC Direct Connect Terminal Block
- GFCI - 20 Amps
- Marine Coated and Protected
- Multi Stage Smart Charger 100 Amp GEL, AGM, Lead and Lithium LiFePO4
- Remote Panel Available
- Auto Gen Start
- Auto Frequency
- 10msec Typical Transfer Time
- 7 battery Type Settings For Charger
- Selectable 25W Power Save Mode (Hibernation)
- Automatic Transfer Switch
Specifications
| Listed to UL 458 Standards | Yes |
| Continuous Output Power | 3000 Watts |
| Surge Rating | 9000 Watts (20 Seconds) |
| Output Waveform | Pure Sine/Same as input (Bypass Mode) |
| Output Voltage | 100-110-120Vac |
| Nominal Efficiency | >92% (Peak) |
| Line Mode Efficiency | >95% |
| Output Frequency | 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| Bypass Terminal Breaker | 40 amps |
| Typical Transfer Time | 10ms (Max) |
| THD | < 10% DC |
| Ambient Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Nominal Input Voltage | 12.0Vdc |
| Minimum Start Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5Vdc-11.0Vdc |
| Low Battery Trip | 10.0Vdc-10.5Vdc |
| High Voltage Alarm | 16.0Vdc |
| Low Battery Voltage Restart | 13.3Vdc |
| Idle Consumption | 55 Watts |
| Charger Breaker | 30 amps |
| Power Saver Mode Idle Consumption | 21.7 Watts |
| Unit Weight | 58 lbs. |
| Unit Size L x W x H | 15.35 X 11 X 7 inches |
Package Contents
Aims Inverter
Owner's manual
Warranty
2 Year Manufacturer Warranty
Manuals & Documentation
Customer Reviews
Customer Reviews
It is okay as long as you don't go over 2000 Watts it has a very poor cooling system it gets way too hot and the fans don't even kick in it only kicks in when it's pulling more power but it doesn't stay if I go over 2000 watts it overloads and it goes back on after three four seconds I have a big fan blowing and I'm going to use a smaller blower attached to the end of it to keep it running full time I have not used the charger yet so I don't know so far I'm okay with it
+++++
