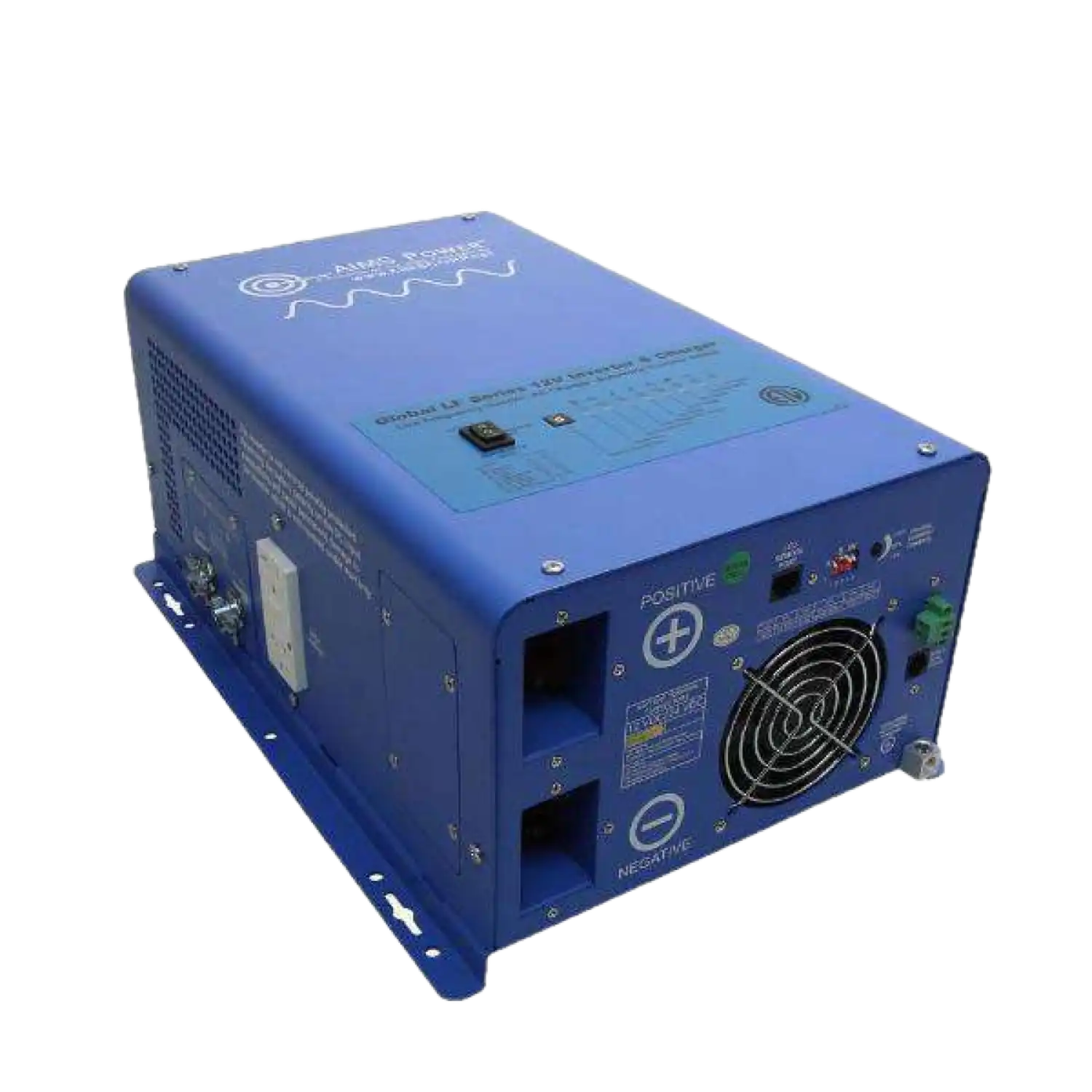

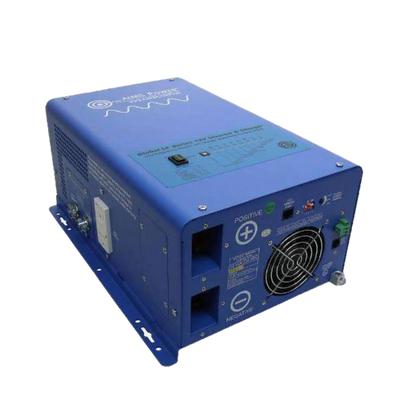

Aims Power PICOGLF15W12V120V 1500 Watt Pure Sine Inverter Charger - ETL Listed to UL 458 New
Manufacturer: Aims Power
SKU: PICOGLF15W12V120V
QTY
(888) 999-1522
C
$1,243.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Special! Use the following coupon code at checkout for 2% off: AIMS25 COPY
Ships in (est) 1-2 business days
Extended Warranty
Factory Warranty
- 2 Year Manufacturer Warranty
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- 2 Year Manufacturer Warranty
$131.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$175.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$218.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Aims Power PICOGLF15W12V120V 1500 Watt Pure Sine Inverter Charger - ETL Listed to UL 458 New
Product Overview
AIMS Power 1500 Watt Pure Sine Low Frequency Inverter with built-in battery charger and transfer switch. This inverter charger is perfect for small-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it. Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere that uses 110 or 120 volts of alternating current.
Brand new in box
Manufacturer direct shipping
Factory Warranty Included
Authorized Aims Dealer
Features
- Listed to UL 458 Standards and CSA 22.2 No 107.1
- 1500 watt Low Frequency Inverter
- 4500 watt Surge for 20 seconds -3x Surge Capability
- Battery Priority Selector
- AC Direct Connect Terminal Block
- GFCI - 20amps
- Marine Coated and Protected
- Multi stage smart charger 50 Amp for gel, AGM, lead and lithium LiFePO4
- Remote Panel Available
- Auto Gen Start
- Auto Frequency
- 10msec Typical Transfer Time
- 7 battery type Settings For Charger
- Selectable 25W Power Save Mode (Hibernation)
- Automatic Transfer Switch
Specifications
| Continuous Output Power | 1500 Watts |
| Surge Rating | 4500 Watts (20 Seconds) |
| Output Waveform | Pure Sine/Same as input (Bypass Mode) |
| Output Voltage | 100-110-120Vac |
| Nominal Efficiency | >92% (Peak) |
| Line Mode Efficiency | >95% |
| Output Frequency | 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| Bypass Terminal Breaker | 20 amps |
| Typical Transfer Time | 10ms (Max) |
| THD | < 10% DC |
| Nominal Input Voltage | 12.0Vdc |
| Minimum Start Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5Vdc-11.0Vdc |
| Low Battery Trip | 10.0Vdc-10.5Vdc |
| High Voltage Alarm | 16.0Vdc |
| Low /battery Voltage Restart | 13.0Vdc |
| Idle Consumption | 13.5 watts |
| Charger Breaker | 20 amps |
| Power Saver Mode Idle Consumption | 8 watts |
| Unit Weight | 38 lbs. |
| Unit Size | L x W x H |
Package Contents
Aims Inverter
Owner's manual
Warranty
2 Year Manufacturer Warranty
