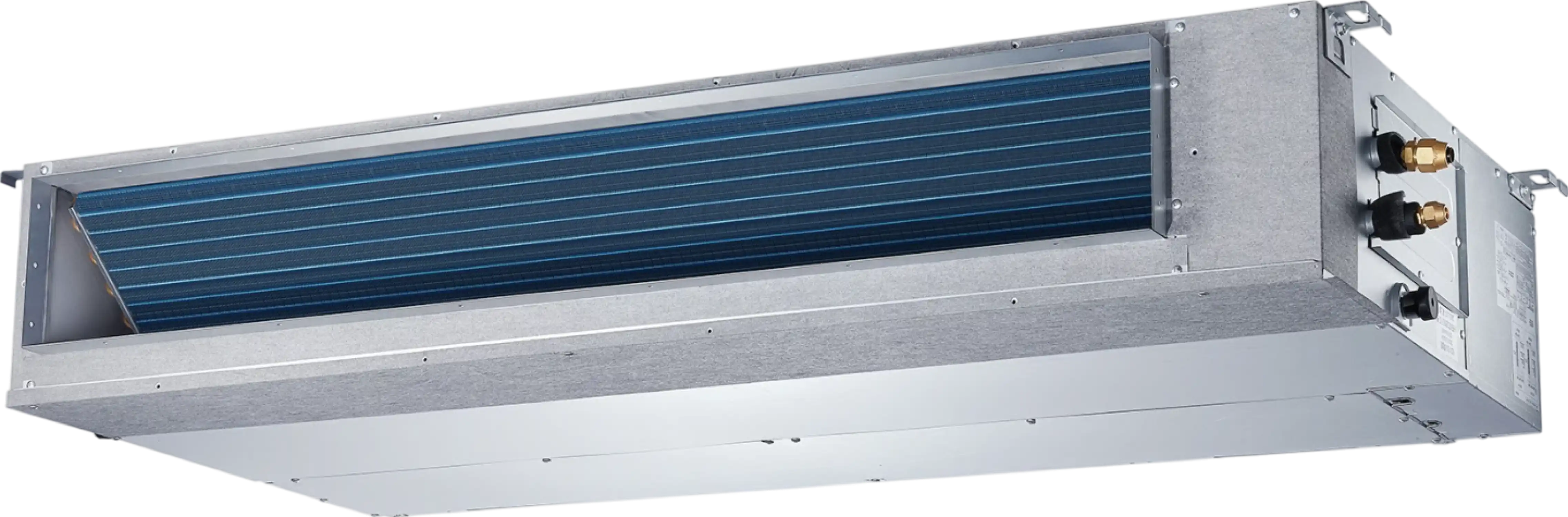

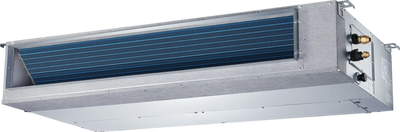

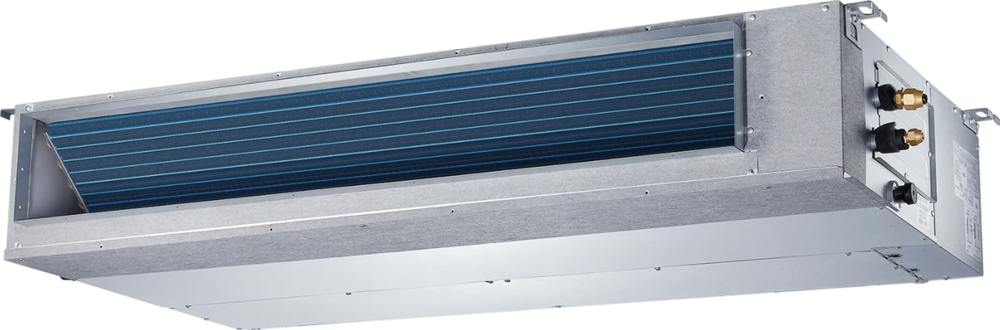

ACiQ Mini Split Air Handler 48,000 BTU Concealed Duct R454B ACIQ-48CD-HH-MC New
Manufacturer: ACIQ
SKU: ACIQ-48CD-HH-MC
QTY
or
(888) 999-1522
C
$3,280.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This product comes with a 12-year compressor warranty and a 7-year parts warranty. Professional installation in accordance with state and local codes is required, along with timely registration through the manufacturer.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This product comes with a 12-year compressor warranty and a 7-year parts warranty. Professional installation in accordance with state and local codes is required, along with timely registration through the manufacturer.
$268.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$338.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$395.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
ACiQ Mini Split Air Handler 48,000 BTU Concealed Duct R454B ACIQ-48CD-HH-MC New
Product Overview
The ACiQ 48,000 BTU Concealed Duct Mini Split Air Handler offers powerful cooling and heating for large areas 2,000-2,500 sq ft. Designed for hidden installation in ceilings or soffits, this unit supports multi-zone configurations and distributes air quietly through flex ducting. It features a wall-mounted thermostat, factory-installed condensate pump, and operates on eco-friendly R-454B refrigerant. Ideal for new construction or renovations, it’s a sleek and efficient ductless solution.
Disclaimer: Warranty is valid only with timely manufacturer registration and proof of professional installation in accordance with local and state codes.
Brand new
Limited factory warranty
Manufacturer direct shipping from OR, OH & GA
Authorized ACIQ dealer
Features
- Provides 48,000 BTU of cooling and 52,000 BTU of heating, suitable for 2,000–2,500 sq ft spaces.
- Designed for concealed installation in ceilings, floors, or soffits for a clean, ducted appearance.
- Supports multi-zone configurations for flexible air distribution.
- Includes a wall-mounted thermostat for easy temperature control.
- Operates quietly with a maximum sound level of 54.5 dBA.
- Features a factory-installed condensate pump for efficient drainage.
- Uses R-454B refrigerant for environmentally friendly operation.
- Ideal for new construction or home additions requiring discreet comfort solutions.
Specifications
| Model # | ACIQ-48CD-HH-MC |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 52,000 BTU |
| SEER2 Efficiency | 14.3 |
| Mini Split Type | Concealed Duct |
| Zone Compatibility | Multi Zone |
| Max CFM | 1529.41 CFM |
| Sound Level | 54.5 dBA Max |
| Refrigerant | R-454B |
| Electric Heat Type | Heat Pump |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Voltage | 208/230V, 1 Phase, 60Hz |
| Max Breaker Size | 50 |
| Min Breaker Size | 42 |
| BTU/Tonnage | 48,000 BTU / 4 Ton |
| Weight | 141.76 lbs |
| Height | 11.81" |
| Width | 47.24" |
| Depth | 34.14" |
Package Contents
ACiQ Mini Split Air Handler 48,000 BTU Concealed Duct R454B ACIQ-48CD-HH-MC
Wall mounted thermostat
User Manual
Warranty
This product comes with a 12-year compressor warranty and a 7-year parts warranty. Professional installation in accordance with state and local codes is required, along with timely registration through the manufacturer.
