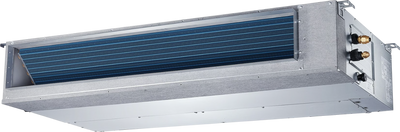

ACiQ Mini Split Air Handler 36,000 BTU Concealed Duct R454B ACIQ-36CD-HH-MC New
Manufacturer: ACIQ
SKU: ACIQ-36CD-HH-MC
QTY
or
(888) 999-1522
C
$2,710.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This product comes with a 12-year compressor warranty and a 7-year parts warranty. Professional installation in accordance with state and local codes is required, along with timely registration through the manufacturer.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This product comes with a 12-year compressor warranty and a 7-year parts warranty. Professional installation in accordance with state and local codes is required, along with timely registration through the manufacturer.
$313.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$384.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$427.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

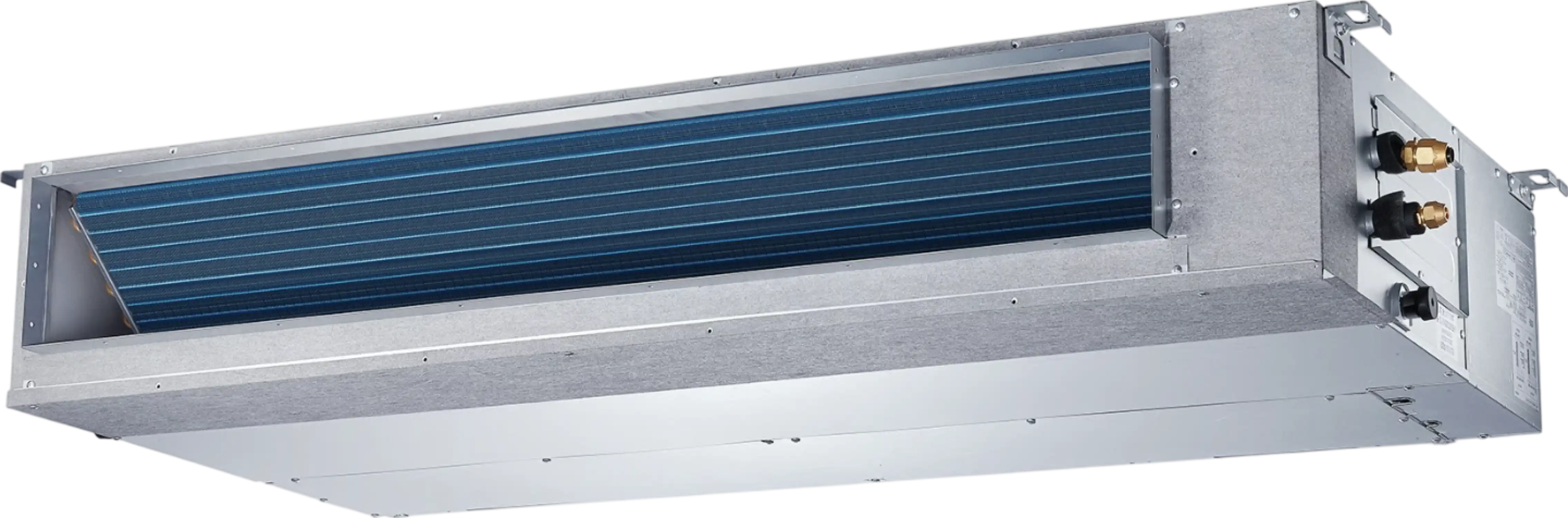

ACiQ Mini Split Air Handler 36,000 BTU Concealed Duct R454B ACIQ-36CD-HH-MC New
Product Overview
The ACiQ 36,000 BTU Concealed Duct Mini Split Air Handler offers high-capacity cooling and heating for spaces between 1,000–1,500 sq ft with a quiet, low-profile design. Designed for hidden installation, this unit distributes air through flex ducting to multiple registers and supports both single and multi-zone systems. It includes a factory-installed condensate pump, heat pump capability, and a wall-mounted thermostat for easy control. Ideal for new construction or retrofits where aesthetics and flexibility matter.
Disclaimer: Warranty is valid only with timely manufacturer registration and proof of professional installation in accordance with local and state codes.
Brand new
Limited factory warranty
Manufacturer direct shipping from OR, OH & GA
Authorized ACIQ dealer
Features
- Provides 36,000 BTU of cooling and 42,000 BTU of heating, ideal for 1,000–1,500 sq ft spaces.
- Compatible with both single-zone and multi-zone systems for flexible HVAC design.
- Installs hidden above ceilings, below floors, or in soffits for a clean, ducted look.
- Operates quietly at a maximum of 49.5 dBA to maintain a peaceful environment.
- Includes a built-in condensate pump for efficient drainage.
- Supports multiple duct runs to distribute air across several rooms.
- Features a wall-mounted thermostat for convenient temperature control.
- Uses eco-friendly R-454B refrigerant for efficient performance.
Specifications
| Model # | ACIQ-36CD-HH-MC |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 42,000 BTU |
| Mini Split Type | Concealed Duct |
| Zone Compatibility | Single Zone / Multi Zone |
| Max CFM | 1081.76 CFM |
| Sound Level | 49.5 dBA Max |
| Refrigerant | R-454B |
| Electric Heat Type | Heat Pump |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Voltage | 208/230V, 1 Phase, 60Hz |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Weight | 59 lbs |
| Height | 9.80" |
| Width | 53.54" |
| Depth | 30.47" |
Package Contents
ACiQ Mini Split Air Handler 36,000 BTU Concealed Duct R454B ACIQ-36CD-HH-MC
Wall mounted thermostat
User Manual
Warranty
This product comes with a 12-year compressor warranty and a 7-year parts warranty. Professional installation in accordance with state and local codes is required, along with timely registration through the manufacturer.
