Vevor CNC Router 3018-PRO Engraving Machine 3 Axis GRBL Control with Offline Controller New
Manufacturer: Vevor
SKU: DKJ3018PROJCK0001V1
QTY
(888) 999-1522
C
$223.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Vevor CNC Router 3018-PRO Engraving Machine 3 Axis GRBL Control with Offline Controller New
Product Overview
This CNC engraving machine features an effective working area of 11.8"(X) x 7.1"(Y) x 1.8"(Z), and is made of sturdy aluminum. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with or without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, and more.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- CNC Router Machine: Provided with this CNC router is a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver according to the installation instructions. You can enjoy the ability to engrave plastics, soft aluminum, acrylics, wood, and more. This product does not include a laser head which can be purchased by yourself.
- Large Working Area: The effective engraving area of this machine is 11.8 (X) x 7.1 (Y) x 1.8 (Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.
- Excellent Motor: This CNC engraving machine is equipped with three stepper motors and 775 DC 24V spindle motors with a rotational speed of 10,000 RPM. The engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS, and other software to directly import .nc/.txt/.tape/.gcode format files for engraving.
- Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the offline controller provides advantages including: No need to connect to the computer; Arbitrary selection of offline files for engraving; Manually adjust the X, Y, and Z axes position as the engraving starting point and manually turn on or off the spindle.
- Sturdy Material: The frame is mainly made of aluminum alloy and Bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.
Specifications
| Model # | VG-S3018 Pro |
| Material | Aluminum Alloy & Bakelite |
| Driving Units | Stainless Steel Screws |
| Effective Working Area | 11.8" x 7.1" x 1.8" |
| Input Power | DC 24V 5A |
| Spindle Speed | 10,000 RPM |
| Stepping Motor | 12V; Torque: 0.25 N/m |
| Control Software | GRBL Control |
| Positioning Accuracy | 0.003" / 0.08 mm |
| Product Dimensions | 17.7" x 14.4" x 10.9" |

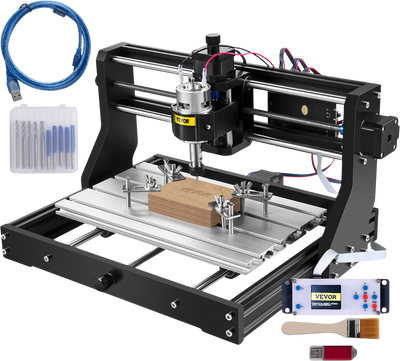

Package Contents
Vevor CNC Router 3018-PRO
Offline Controller
Software USB Drive
Set of Milling Cutters
Cable
Brush
User Manual
Warranty
This item comes with a 1 year factory warranty.
