Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New

Manufacturer: Lorex by Flir

SKU: LN10802-168W

Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New
Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New

QTY

(888) 999-1522

C

$1,812.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New

Lorex LN10802-168W 8 Camera 16 Channel NVR 2K IP Indoor/Outdoor Surveillance Security System New

Product Overview



 Brand new in box & manufacturer direct
 2 year factory warranty
 Remote monitoring using the Flir app
 All original accessories included
 Authorized Lorex dealer
 Ships same or next business day

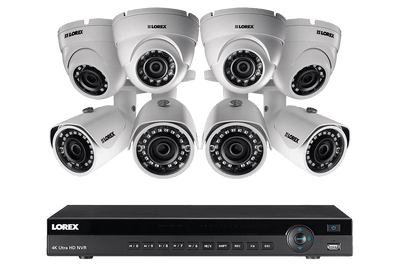

What's in the box:

  • NR9163 16 channel 4K ultra HD network video recorder
  • 2K Dome Cameras (4)
  • 2K Bullet Cameras (4)
  • 60ft Cat5e Extension Cable (8)
  • Power Cable
  • HDMI Cable
  • Ethernet Cable
  • Remote
  • Mouse
  • Manuals



Features:

16

CHANNELS

1080P DVR can support up to 16 cameras

8

CAMERAS

4 bullet and 4 dome 2K cameras

130FT

NIGHT VISION

Maximum night vision

3TB

HARD DRIVE

Maximum capacity 1 x 12TB hard drive

16 channel, 4K ultra HD network video recorder:

  • Real-time recording up to 8MP on all channels - 4× the detail of 1080p
  • Supports industry-leading 4K recording1
  • 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
  • RapidRecap® - see the day in a minute with hours of activity compiled into a short video summary
  • FLIR Secure™ apps for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™)2
  • PC and Mac compatible - FLIR Cloud™ video management software gives you complete control over your security system from anywhere 2
  • 24/7 security-grade pre-installed hard drive3
  • Expandable high capacity storage up to 12TB (2×6TB HDD)
  • Automatically detects compatible IP cameras in the network4
  • 4K video output - view multiple HD channels at once in full resolution on a 4K TV
  • H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing3
  • Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive5
  • Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
  • Click-and-drag digital zoom in live view and playback
  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant backup of live video to a USB flash drive
  • Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date6
  • Push notifications of motion events
  • Instant email alerts with snapshot attachment
  • Multi-streaming to conserve bandwidth
  • Continuous, scheduled, and motion recording
  • Dual video outputs (HDMI and VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD amp; 4K TVs



Full Metal Camera Housings

Built from a solid unibody metal housing, the LNE3162B and LNB3163B allow for durability while still maintaining a lightweight design. The corrosion-resistant aluminum bodies make these cameras perfect for both indoor and outdoor use, protecting them from even the harshest of weather; rain, snow, or hail. Engineered from the same material that is used in construction of airplanes and cars, these Lorex cameras are strong enough to withstand large impacts unlike conventional plastic security cameras.



With or Without the Internet

Standalone camera systems do not need the internet to operate. However, an internet connection will be necessary if you wish to use a smartphone, tablet or computer to access features such as remote monitoring.



Connects directly to TVs and Monitors

Easily watch live video feeds or review video footage on most Monitors or HD TVs by using the included HDMI cable.



NVR Network Video Recorder

Security NVRs will connect to IP cameras using CAT5 network cables and will store pre-compressed video footage from IP cameras.



2K Super HD Resolution (2×1080p Full HD)

2K resolution offers twice the resolution of 1080p with approximately 2000 horizontal pixels. This new level of details will vividly improve the video quality of your security footage.



24/7 100% Duty cycle hard drive pre-installed

The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams.



ONVIF Compliant

ONVIF is an open standard protocol for IP Network Cameras to communicate easily with Network Video Recorder (NVR) devices.



Specifications:

Operating System Linux (embedded)
Pentaplex Simultaneous View, Record, Playback, Backup & Remote Monitoring
Number of Channels 8/16/32 Channels
Video IN 8ch: 8 PoE, 16/32ch: 16 PoE
Video OUT No
VGA OUT Yes
HDMI Yes
Audio IN 1 Line IN (RCA) for service only
Audio OUT 1 Line OUT (RCA) for service only
USB Port 1 at the back, 1 at the front
Alarm IN 4 Alarm IN
Alarm OUT 2 Alarm OUT
Video Output Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
PTZ control Lorex IP PTZ cameras only
Display 8ch: 1/4/8, 16ch: 1/4/8/9/16, 32ch: 1/4/8/9/16/25/36
Live Display Speed 8ch: 240fps NTSC / 200fps PAL, 16ch: 480fps NTSC / 400fps PAL, 32ch: 960fps NTSC / 800fps PAL
OSD ON/OFF
System Navigation USB Mouse, IR Remote Control, Front Panel Buttons
Motion Area Setting Fixed Grid (22×18)
Sensitivity Levels 100
Firmware Upgrade Automatic over the Internet & via USB device and network
User Authority By user group
Time Synchronization Automatic time sync by NTP server
Video Compression H.264 / H.265
Audio Compression G.711
Resolution Up to 4K (3840×2160), 1080p (1920×1080)
Record Rate 8ch: 240fps@720p/1080p/3MP/4MP/8MP, 16ch: 480fps@720p/1080p/3MP/4MP/8MP, 32ch: 960fps@720p/1080p/3MP/4MP/8MP
Recording Resolution Setting Per camera for different resolutions
Recording Quality Control 6 Levels
Recording Schedule By hour, by day, by recording mode, by motion, by alarm, by channel
Pre Recording Max. 4 Secs
Post Recording Max. 5 Minutes
Reliability Watch-Dog, auto-recovery after power failure
Covert Video Yes
Playback Channel 1CH/4CH@4K, 8CH@4MP, 16CH@2MP
Playback Speed Variable Max 16x
Playback Players Backup Player
Search By Time & Event
Log Search Up to 1,000 lines for motion detected, configuration, changes, connects/disconnects and video loss
Audio Play Yes (audio camera required)
Storage Up to 2 HDDs (SATA)
Maximum Capacity Up to 2×6TB (12TB Max)
Backup Media USB Flash Drive & HDD
Backup File Format DAV or ASF File
Cloud Connection FLIR Secure™
Supported Operating Systems Windows™ / Mac OS X
Remote Software Client Software (PC & Mac)
Email Notification Text with snapshot
Instant Smart Phone & Tablet Android™, iPad®, iPhone®
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Programmable by User
Network Protocol HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Network Interface 10/100/1000-Base-TX, RJ-45
Network Bit Rate 320Mbps total, 48~8192kbps per camera
Power Consumption Approx. 15W (no HDD included)
Supply Voltage 100VAC-240VAC, 50/60Hz
Total PoE Power Output 130W (Max 25W per Camera)
Unit Dimensions (W × D × H) 14.7 × 12.9 × 2.1" / 375 × 327 × 53mm
Unit Weight 8ch: 5.1lbs / 2.6kg, 16/32ch: 13.2lbs / 2.7kg
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH
    As a Lorex authorized dealer, this product comes with a 2 year factory warranty.
