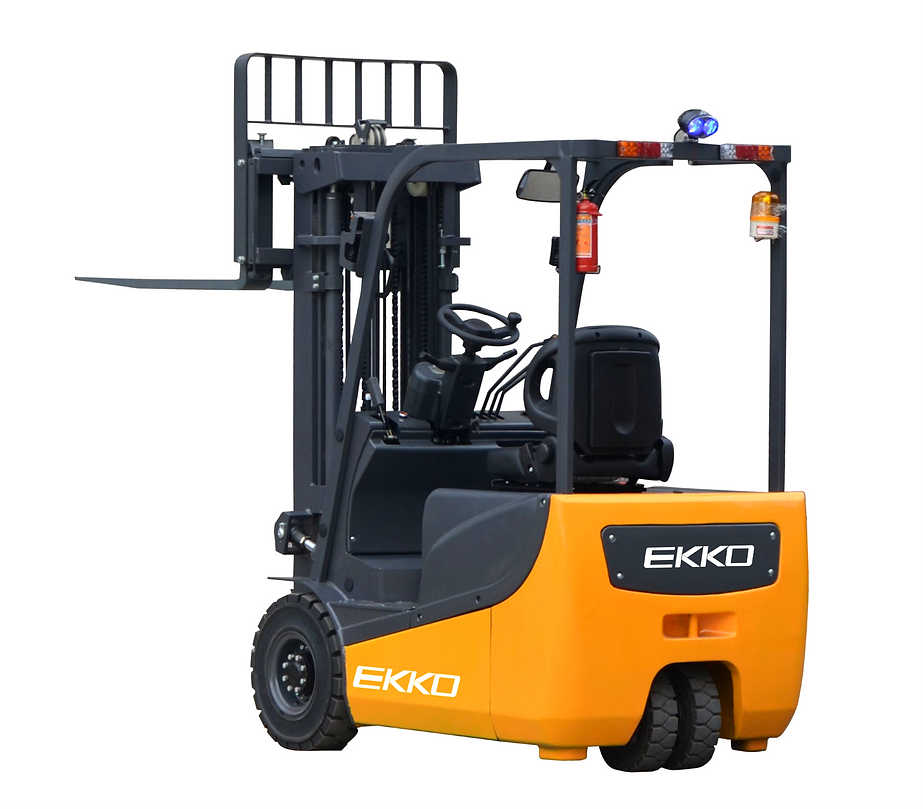

Ekko EK18A 3 Wheel Electric Forklift 189" Lift 4000 lbs. Capacity New
Product Overview
The Ekko E18A 3 Wheel Electric Forklift is designed for use for all of your material handling demands.
It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 4000 lb
- Raised Height 189" (15.75 ft.)
- Side Shifting Forks
- Free Lift 63”
- Adjustable Forks 9.4 - 35.6"
- Fork Length 45.3“
- Hydraulic Steering
- Curtis Instrument Controller
- ZF AC Drive Motor 7500 Watts
- 7700 Watts Lifting Motor
- Battery 48V/425Ah (included)
- Solid Cushion Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/65A 480V

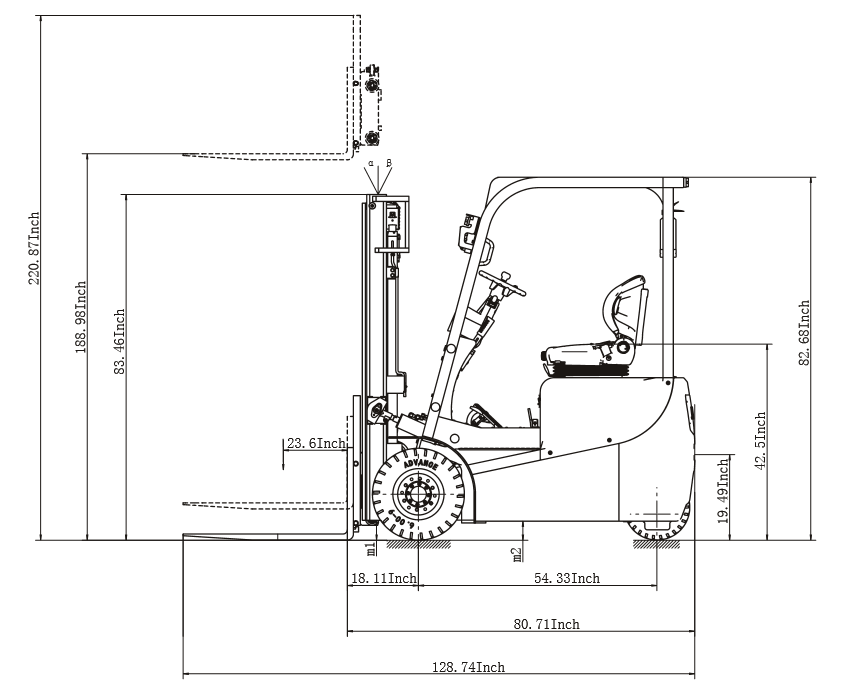

Specifications
| Ground clearance under mast (Inch) | 3.54 |
| Min. Ground clearance (Inch) | 4.13 |
| Aisle width with pallet 1000 x 1200 across forks (Inch) | 131.89 |
| Aisle width with pallet 800 x 1200 along forks (Inch) | 136.81 |
| Min. Turning radius (Inch) | 64.17 |
| Travel speed, laden/unladen (km/h) | 12/13 |
| Lifting speed, with/without load (mm/s) | 9.84/15.75 |
| Lowering speed, with/without (mm/s) | 9.45/10.16 |
| Climbing ability, with/without (%) | 10/15 |
| Service brake | Hydraulic |
| Drive motor, 60-minute rating (kW) | 7.5 |
| Lift motor rating at S3 15% (kW) | 7.7 |
| Battery voltage/rated capacity (V/Ah) | 48/425 |
| Battery weight (± 5%) | 1450 lbs. |
| Power consumption VDI (mm) | 38.11/15.43/23.03 |
| Type of drive control | AC |
| Noise level at operator‘s ear (dB(A)) | ≤70 |
| Steering type | Hydraulic steering |
| Model | EK18A |
| Power unit | Electric |
| Operation Type | Rider |
| Loading capacity | 4000 lbs. |
| Load centre (Inch) | 24 |
| Axle centre to fork face (Inch) | 18.11 |
| Wheelbase (Inch) | 54.33 |
| Service weight with battery | 7550 lbs. |
| Wheels type | Solid wheel |
| Driving wheel size Φ×w (Inch) | 6.5 - 10 - 10PR |
| Bearing wheel size Φ×w (Inch) | 15 × 4.5 - 8 |
| Wheels, number front/rear | 2× /2 |
| Track width (Inch) | 35.04 |
| Mast/fork tilt (°) | 6/6 |
| Lowered mast height (Inch) | 83.46 |
| Free lift height (Inch) | 63.78 |
| Lift height (Inch) | 189 |
| Extended mast height (Inch) | 220.87 |
| Height of overhead guard (cabin) (Inch) | 82.68 |
| Height of seat/stand-on platform (Inch) | 42.5 |
| Overall length (Inch) | 128.74 |
| Length to fork face (Inch) | 80.71 |
| Overall width (mm) | 42.52/42.13 |
| Fork dimensions (Inch) | 1.58/4.72/45.3 |
| Width of forks (Inch) | 36.22 |
Package Contents
3 Wheel Electric Forklift

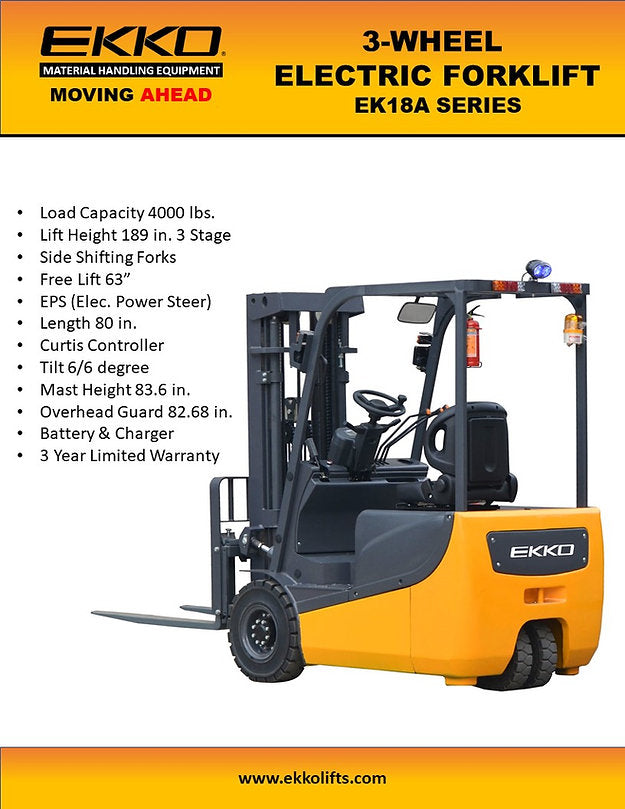

Brochure
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
