Amscope SM-1TSZ-144A-10M 3.5X - 90X Zoom Stereo Microscope with 4 Zone 144 LED Light Plus 10MP Digital USB Camera New
Product Overview

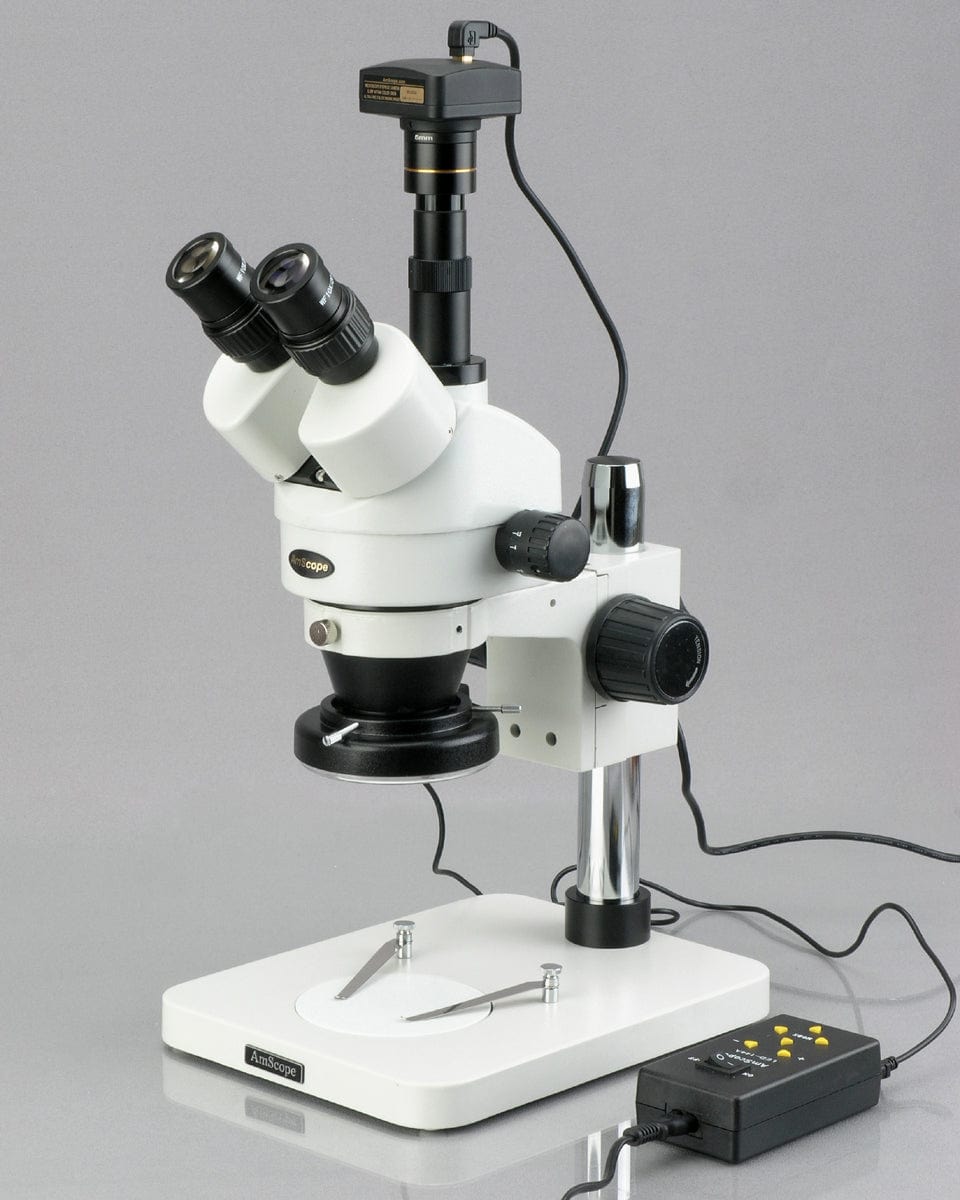

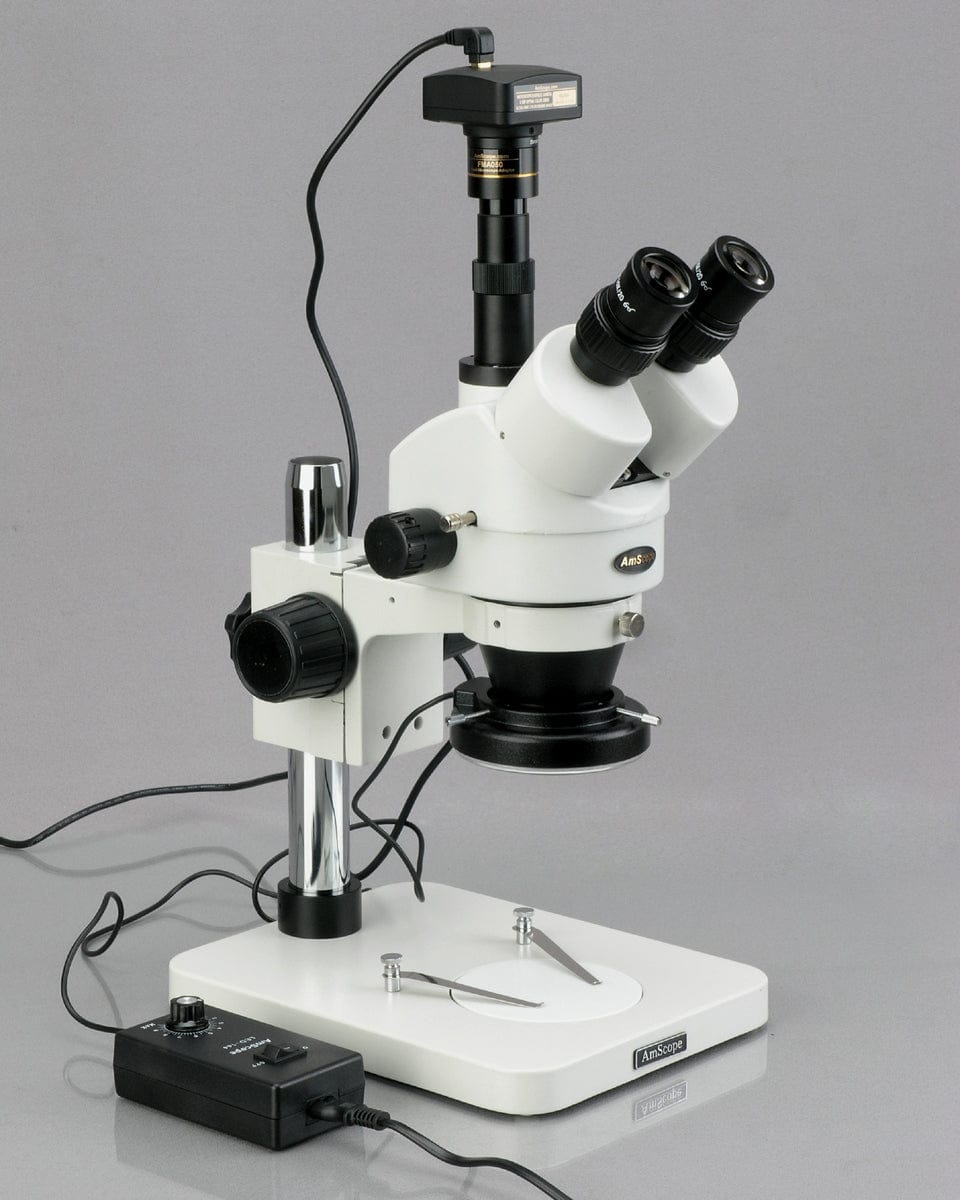

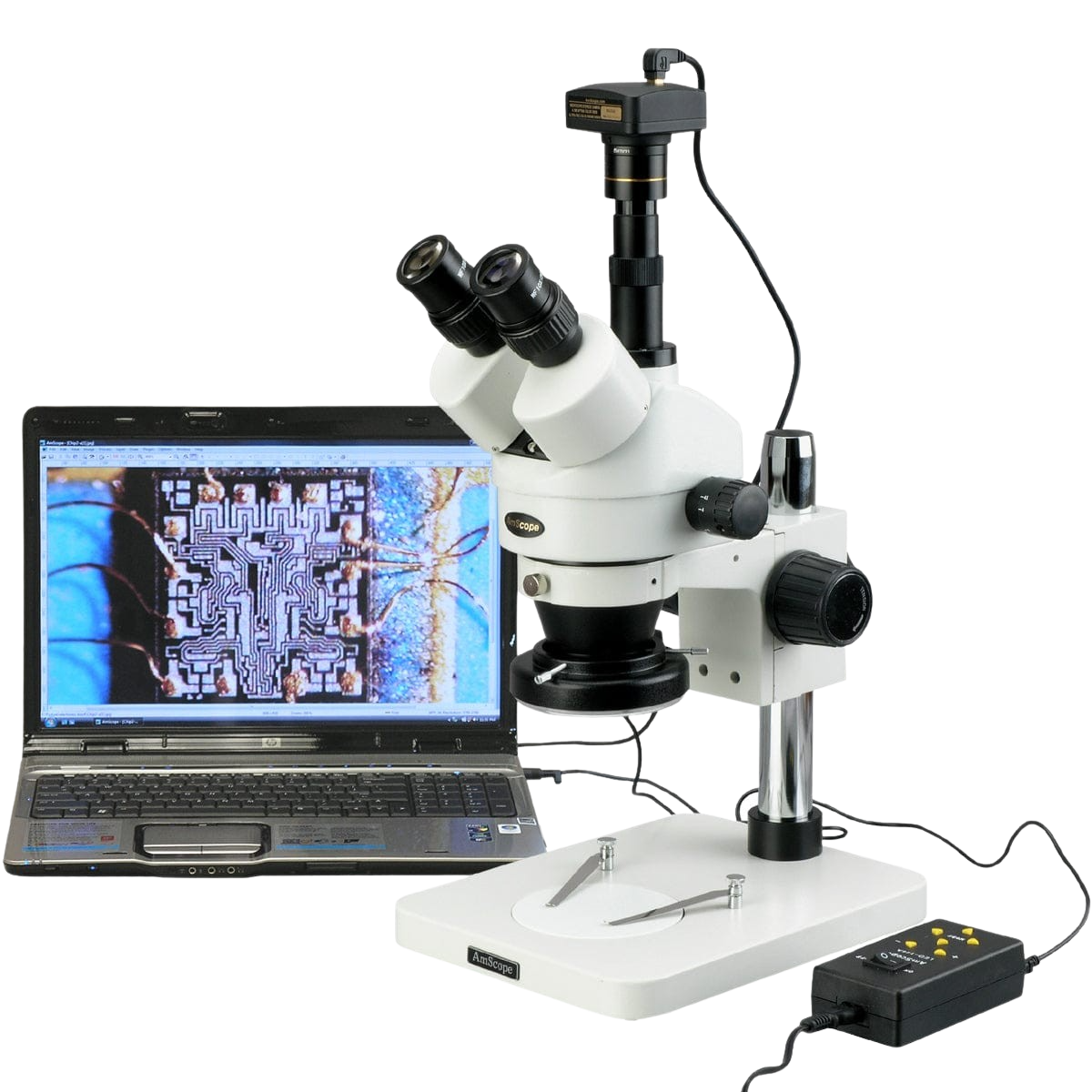

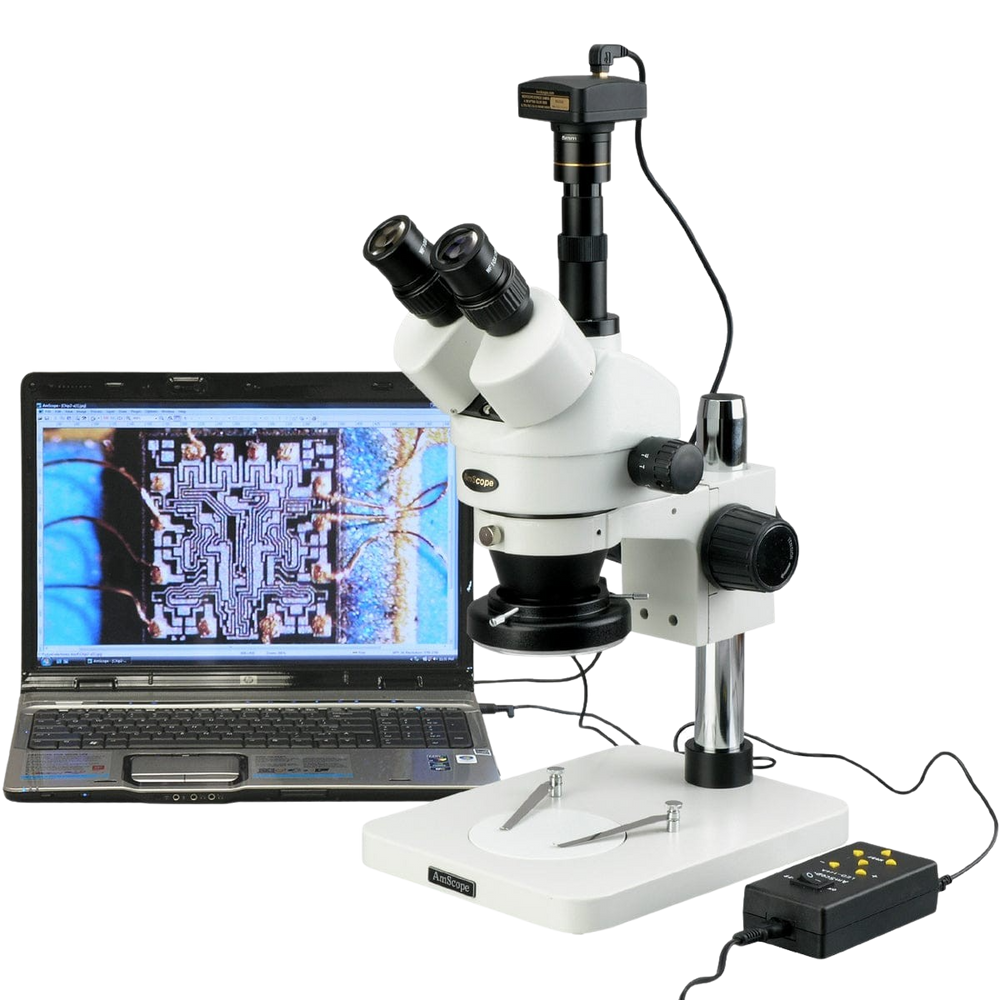

This trinocular stereo microscope comes with a 144 LED 4 light zone ring light and a 10MP USB digital camera. The digital camera captures still images and video, and allows you to view a live stream on your PC.
This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, and anyone in electronic and semiconductor industries.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- A perfect LED stereo inspection microscope with a 10MP color digital camera
- Intensity and light direction variable cool, even and bright 144 LED ring illumination
- 3.5X - 90X super wide zoom magnification power
- 8" (200mm) extreme large working distance
- High resolution with great flatness and contrast, giving sharp and clear images
- Trinocular head with 45 degree inclined 360 degree swiveling eye tubes
- The trinocular port enables the easy use of camera capabilities
- 30mm super widefield high eyepoint eyepieces with 20mm field of view
- Sharp stereo erect images with a wide field of view
- Crystal clear, original true color microscope images
- Dual eye tubes with adjustable diopters
- Contemporary table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome plated mechanical components
- Adjustable interpupillary distance
- Rubber eye guards included
- Manufactured under ISO 9001 quality control standard
- Excellent 5 year factory warranty
Specifications
| Sensitivity | 0.31 V/lux-sec |
| Shipping Weight | 20 lbs |
| Head | 360 degree rotatable 45 degree inclined trinocular |
| Eyepiece | 30mm super widefield high eyepoint WH10X/20MM |
| Barlow Lens | 0.5X and 2.0X |
| Zoom Range | 0.7X - 4.5X |
| Diopter Adjustment | +/- 5dp |
| Interpupillary Distance | 2 - 3/16" - 2 - 15/16" (55 - 75mm) |
| Working Distance | 8" (200mm) |
| Illumination | 144 LED ring light, 4 light zones |
| Power Input | 110 - 240V, 50 - 60HZ, automatic switching |
| Stand | 10" x 7 - 7/8" x 10.75" (254 x 200 x 275mm) |
| Round Plate | 3 - 3/4" (95mm) in diameter |
| Accessories | A pair of eye guards |
| Sensor | Aptina MT9J003 |
| Sensor Type | CMOS |
| Sensor Size | 6.44 x 4.616mm |
| Pixel Size | 1.67 |
| Resolution | 10.0MP |
| Frame Rate | 1.9 @ 3584 x 2748, 8 @ 1792 x 1374, 27 @ 896 x 684 |
| Compatibility | Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux |
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ |
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port |
Package Contents
Trinocular Stereo Zoom Head
Pair of Super Widefield 10X Eyepieces
0.5X Barlow Lens
2.0X Barlow Lens

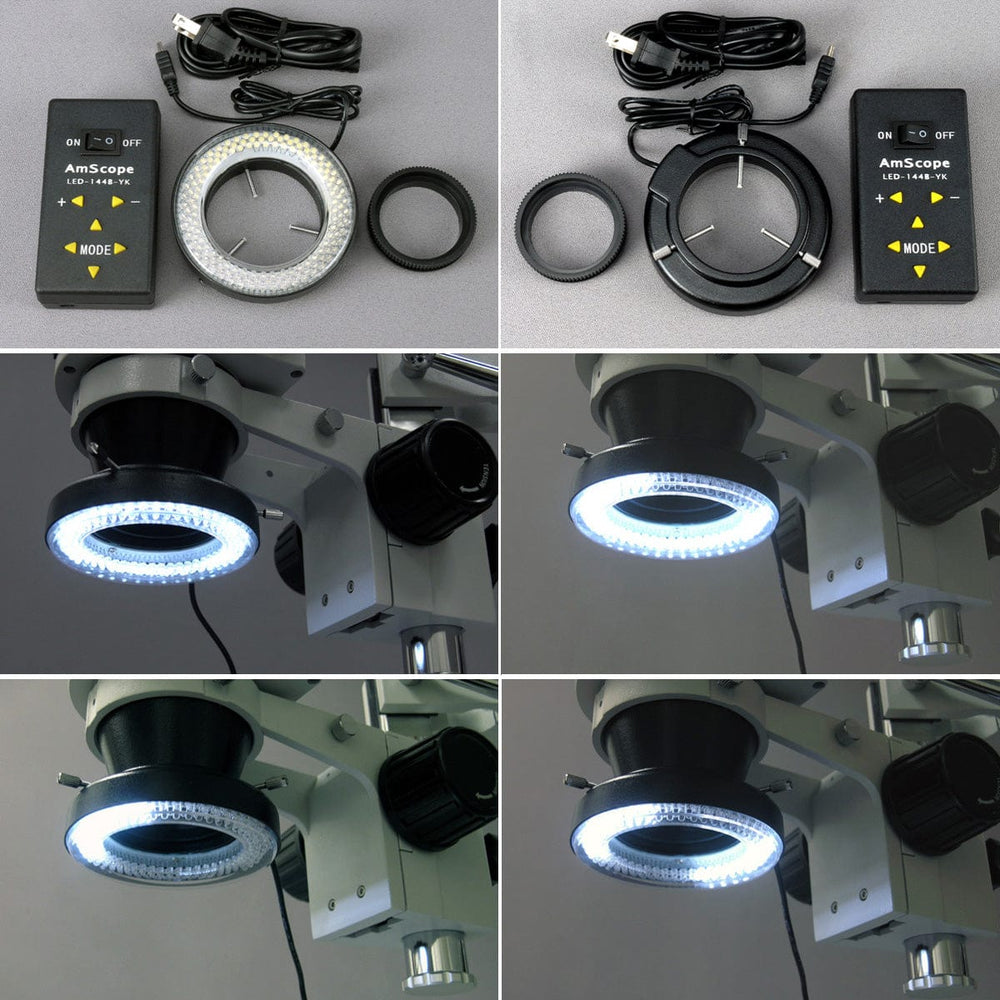

144 LED Ring Illuminator with 4 Light Zones
Pillar Table Stand
Focusing Rack
Round Plastic Plate
Pair of Eye Guards
Pair of Clips
Dust Cover

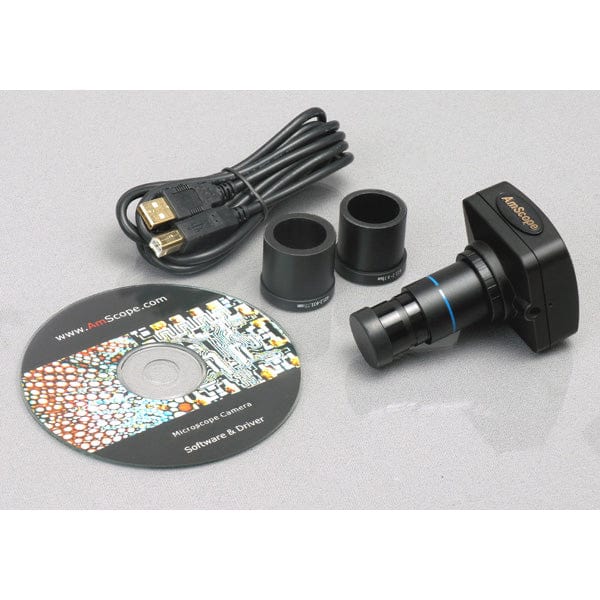

10MP USB2.0 Digital Camera with Reduction Lens
6' (1.8m) USB Cable
CD with Software and Driver
User's Manual
Warranty
This product comes with a 5 year factory warranty.
